7.
Before
installing
the
system
rail
assemblies
into
your
rack,
you
must
first
preset
the
rails
to
allow
correct
assembly
with
the
rack
and
system
unit.
Do
the
following:
a.
Unpack
the
system
rail
assemblies.
b.
Fully
extend
each
rail
assembly.
c.
Lock
the
rear
latch
assemblies
to
the
open
position
using
the
latch
release
tab.

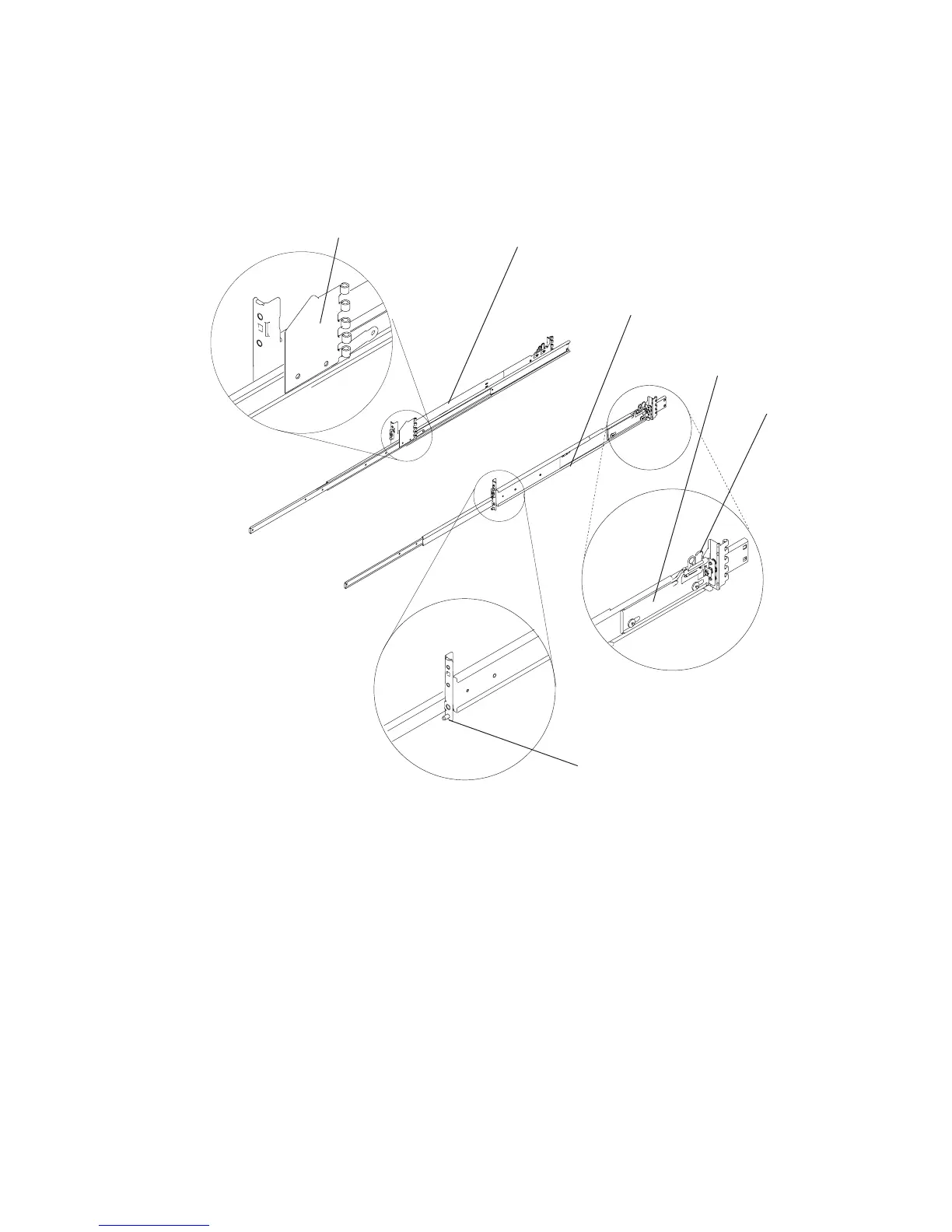

4
2
1
3
5
6
1
Left
rail
assembly
4
Rail-mounting
latch
assembly
release
tab,
rear
2
Right
rail
assembly
5
Rail-mounting
hardware,
front
right
3
Rail-mounting
latch
assembly,
rear
6
Cable-management
arm
flange
8.
Position
yourself
at
the
front
of
the
rack.
9.
Facing
the
rack,
insert
the
rail’s
rear-alignment
pins
into
the
rack’s
rear
flange
holes
identified
by
the
self-adhesive
placement
dots
previously
installed.
10.
Press
the
release
tab.
This
action
will
cause
the
rear
latch
assembly
to
close
on
the
flange.
Ensure
that
the
pins
have
passed
through
the
proper
holes
in
the
rear
flange
to
verify
proper
alignment.
11.
Insert
the
rail’s
front-alignment
pin
into
the
rack
front
flange
hole
identified
by
the
self-adhesive
placement
dot
previously
installed.
Ensure
that
the
EIA
location
is
the
same
from
front
to
back
and
the
rails
are
level
from
front
to
rear.
12.
Loosely
thread
one
of
the
rail-retaining
screws
into
the
rail’s
front
screw
hole.
The
screw
hole
is
located
one
position
above
the
front-alignment
pin.
412
EserverpSeries
615
Service
Guide
