IBM X3850 X6 User Manual

Chapter 5. Preparing the hardware 167

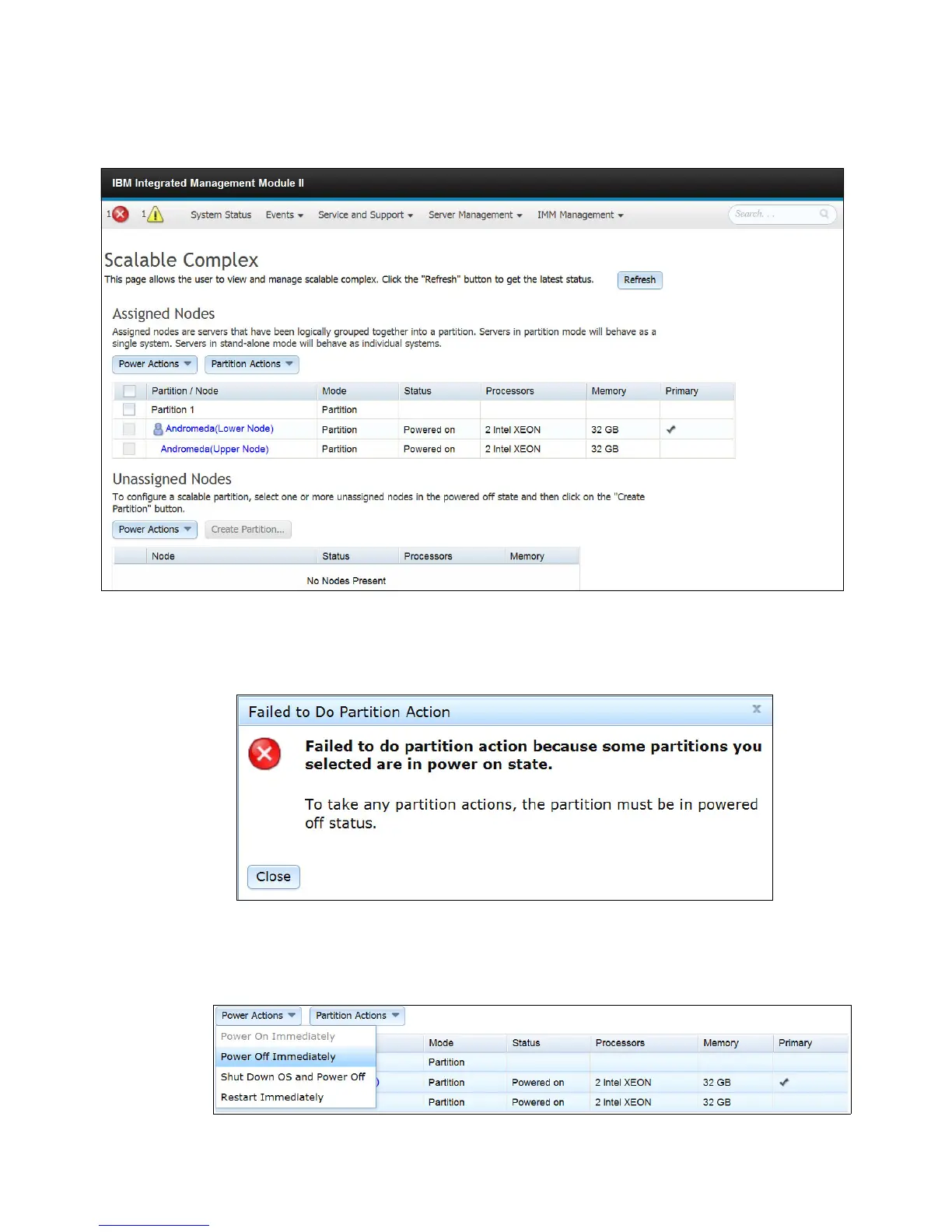

Figure 5-43 displays the scalable complex window pane with one x3950 X6 server, which
contains 2 CPUs and 32GB of RAM in each partition.
Figure 5-43 IMM2 web interface Scalable Complex window
3. Before separating the x3950 X6 into two stand-alone servers, ensure you turn the server
off. Failing to turn off your server will result in an error message as seen in Figure 5-44.
Figure 5-44 Partition failure message
4. Check the box to the left of the server you intend to power off. When selected, you can
turn your server off via the Power Actions menu as seen in Figure 5-45.
Figure 5-45 Power Actions menu

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
