214 IBM System x3850 X6 and x3950 X6 Planning and Implementation Guide
3. Enter your company contact information in the provided fields. The more information that
you provide, the easier it will be for IBM support to assist you. Pay particular attention to
ensuring that the Country or region field is completed correctly, as shown in Figure 7-18.
Click Next.

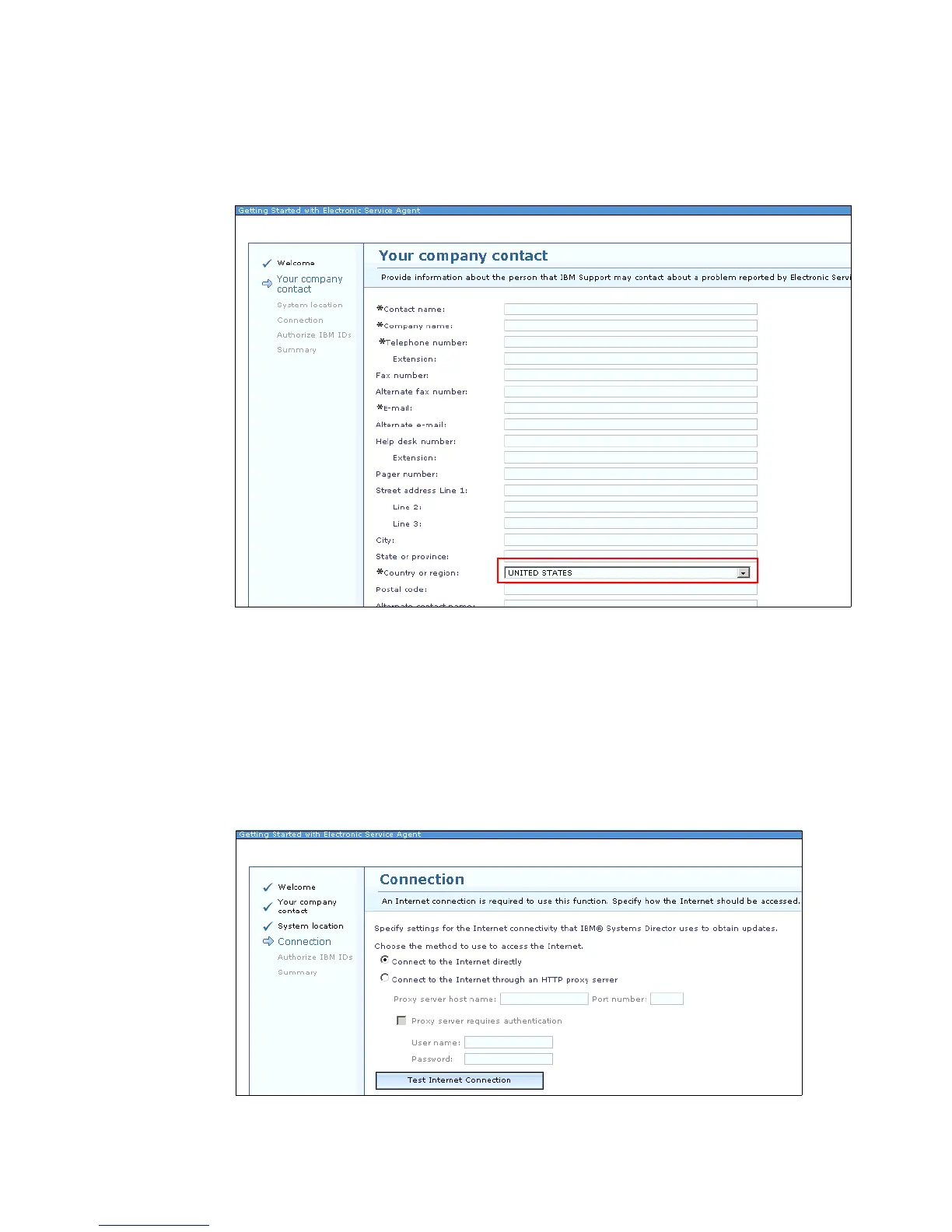

Figure 7-18 Service and Support Manager company contact details
4. Next, provide default details for the physical location of your systems. You can change
individual system location details at a later stage as explained in “Changing the location
settings of a system” on page 215.
5. On the Connection pane, leave the default settings if your IBM Systems Director server
has a direct connection to the Internet, as shown in Figure 7-19. Enter the proxy server
details if you are required to connect to the Internet via a proxy server. Always ensure that
you test the Internet connection by clicking Test Connection when finished. Click Next
after a successful Internet connection has been confirmed.
Figure 7-19 Service and Support Manager Connection configuration

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
