4 Adjust the latch screw (4 mm hex socket) and hold it in place while
tightening the lock nut, as shown in Figure 5-28.
Note: A correctly adjusted latch should not allow the movement of the cassette
when in the printer, but should allow the cassette to be pulled from the printer
under any circumstances when the release button is pressed.

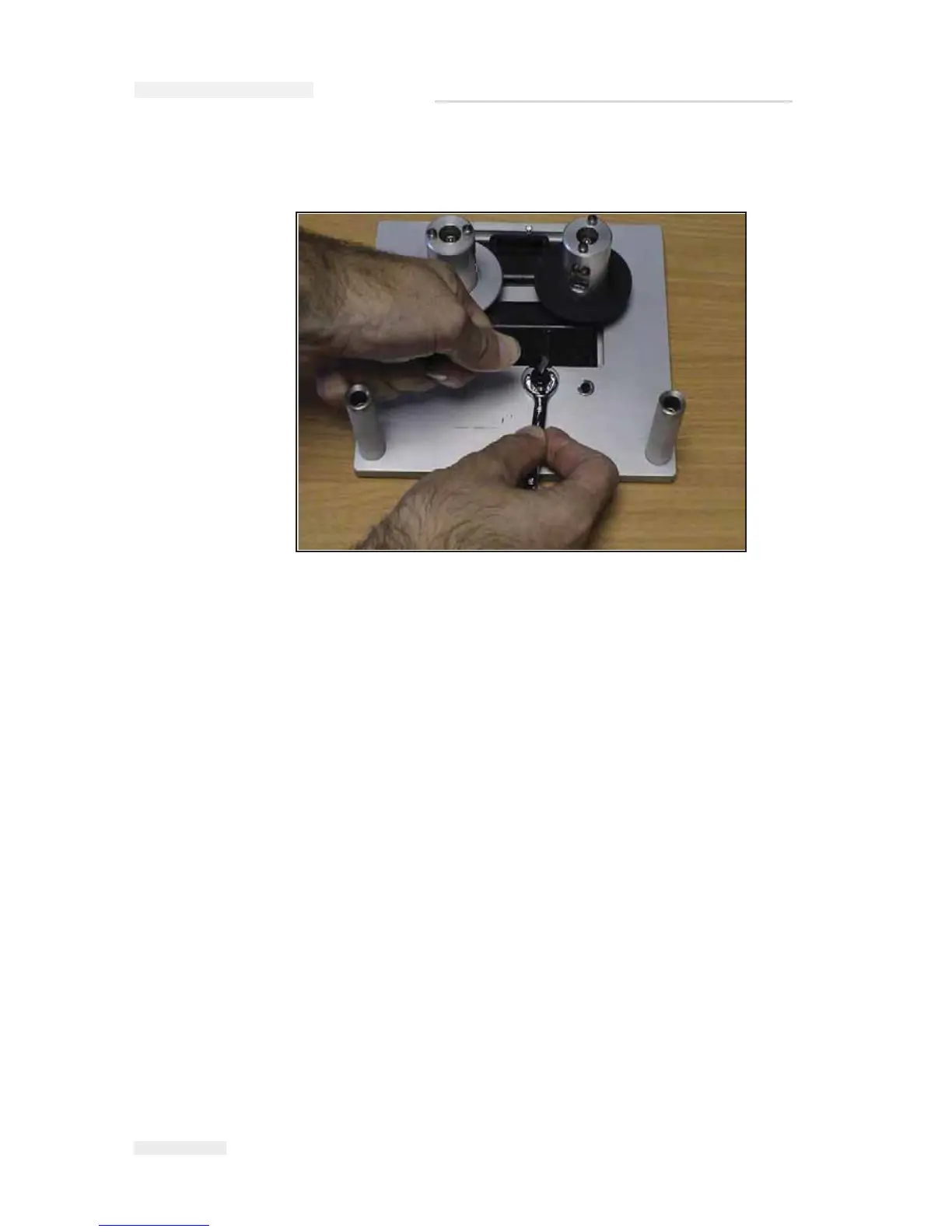

Figure 5-28: Latch Screw Adjustment
