Rev AA Installing the Ribbon in the Cassette 3-9
3 Pull the two ribbon spools (one containing the entire used ribbon)
from the cassette firmly, as shown in Figure 3-8. The discs that are
situated under each spool can be used to lever the spool off the
cassette.
4 Discard the used ribbon and the spools.
5 Open a new shrink-wrapped roll of ribbon, and unwind about 12
inches (30 cm) of ribbon.
The spool holders on the cassette have different color discs:

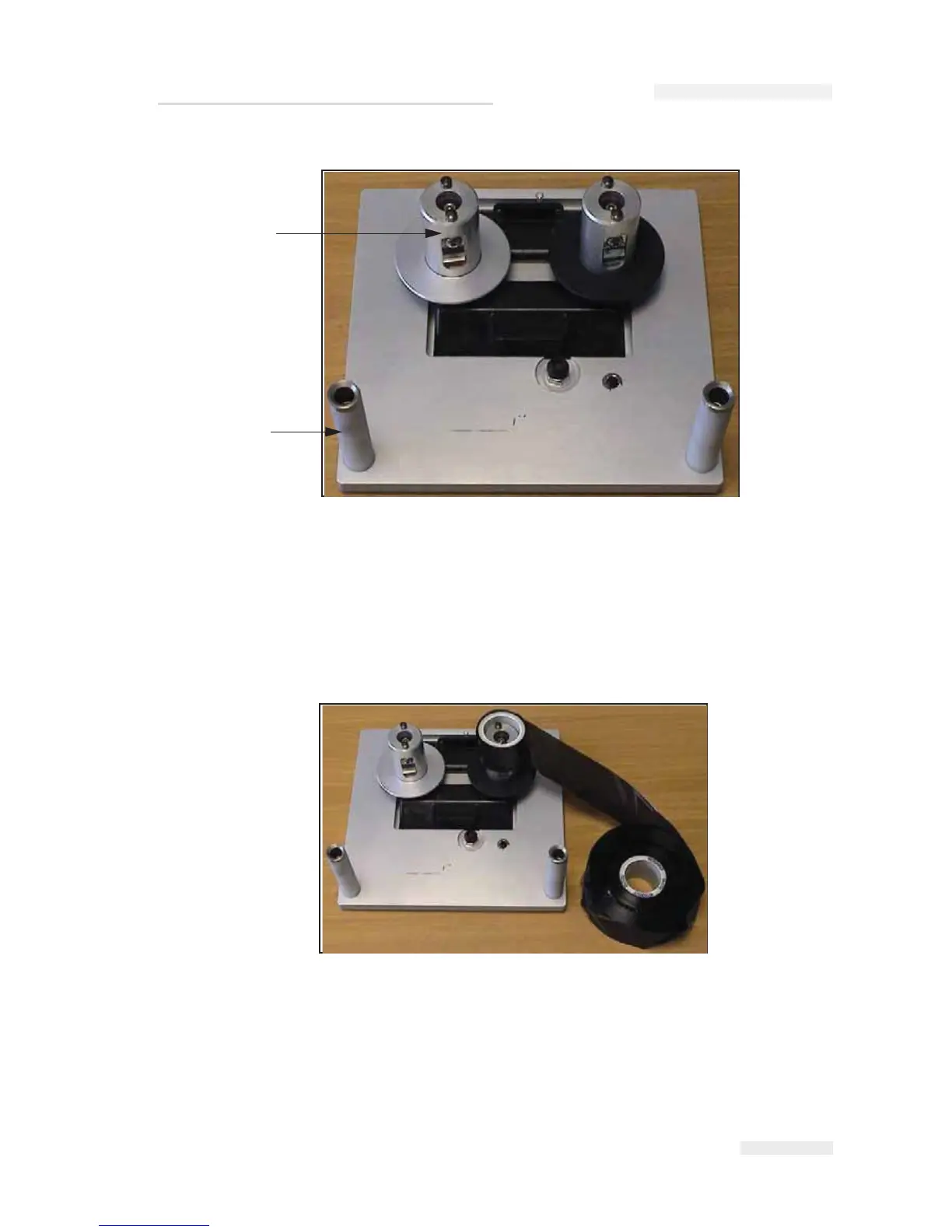

Figure 3-7: Cassette Removed
1. Ribbon Roller (x2)
2.
Ribb
on Spool (x2)
1
2
Figure 3-8: Ribbon Spools Removal
ICE Pegasus Service Manual
