Ice PegasusHS User Manual

4-4
Using the Tools Page
Rev AA
Printhead Setting in Intermittent Mode
Touch the Printhead button on the setup page to access the printhead
parameters.
The Printhead page in intermittent mode allows you to access the
following parameters:
• Horizontal Registration: The position of the print
in the printers
overall printing window,
measured in mm across the width of
the
printhead. It enables you to positi
on the print along the width of
the
printhead.
•
Vertical Registration: The position of the print in the printers overall
print window,
measured in mm in
the direction perpendicular to the
printhead.
•
Print Orientation: Allows rotation of the whole image throug
h 180
degrees
•
Print Delay: The delay between the print signal and
the commencing
of the print. Measured in milliseconds, it allows time for the
packaging film to come to a complete
rest before the printhead
comes
in contact. It
should be set
to the smallest possible value that gives a
good quality
print.
• Print Speed: The target printing speed of the head in mm/sec.
It
should
be set to the lowest speed that allows completion of
the print
in the available dwell ti
me of the packaging film

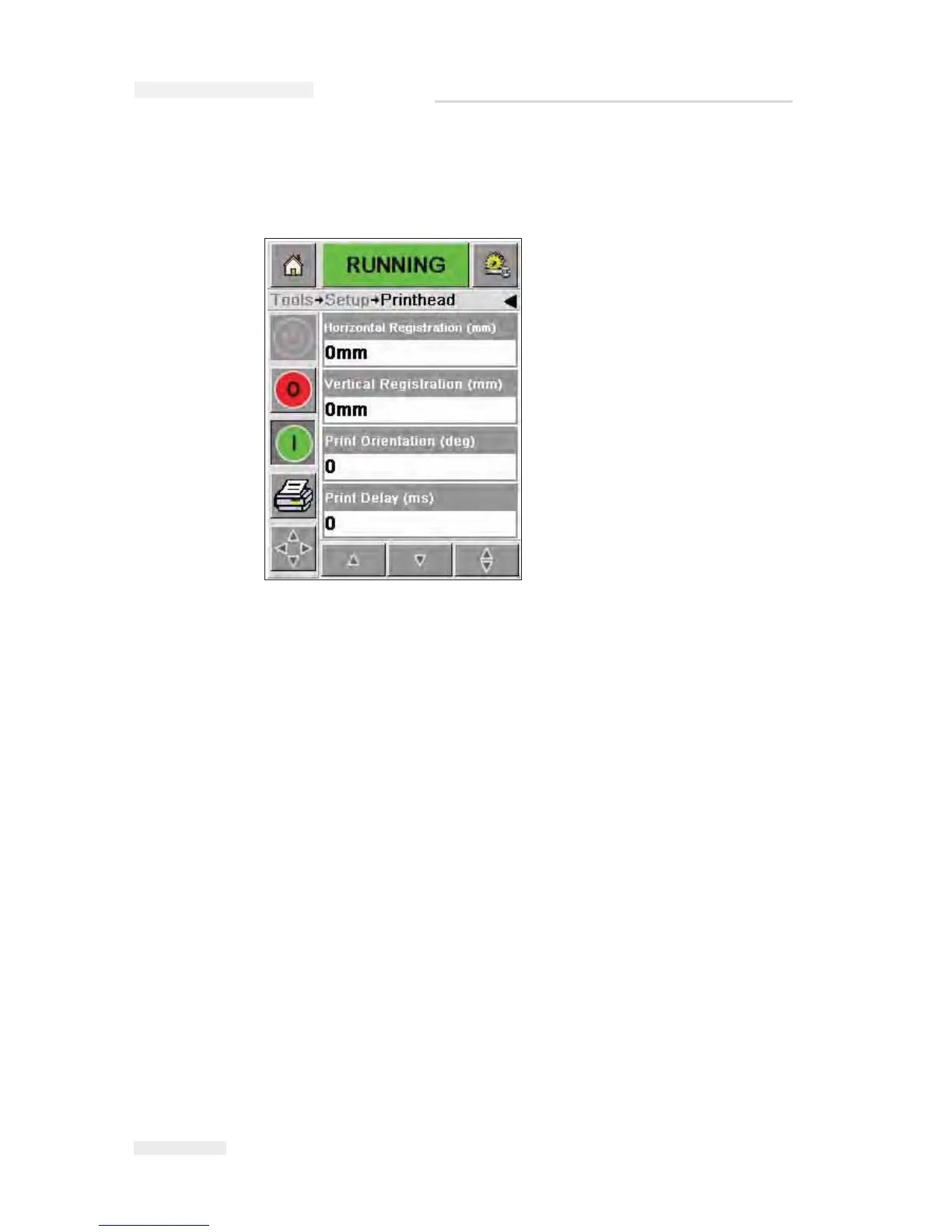

Figure 4-4: Printhead Parameters in Intermittent Mode
