Working with Printhead Timings
Touch the Timings button on the Printhead Diagnostics page access to the
timings page (Figure 4-19). This diagnostic page provides information
about the last print or print job selection that was made. It is useful in high
throughput applications to understand what the printer is trying to do,
especially in continuous motion applications.
The following parameters can be accessed in the printhead timings
diagnostics page
• Minimum speed (mm/s): Indicates the minimum film speed during
the previous printing cycle
• Maximum speed (mm/s): Indicates
the maximum film speed during
the previous
printing cycle
• M
inimum print speed (mm/s): Indicates the actual minimum printing
speed during the
previous printing cycle
• Maximum print speed (mm/s): Indicates the actual
maximum
printing speed during th
e last printing cycle
• Cycle Time (ms): Indicates the total time from the end of
the print
registration delay to the end of
the printing operation
• Printing Time (ms): Indicates the actual time taken to print the imag
e
in the previous printing
cycle
• Job Selection Time (ms): Indicates the time taken in selecting
the last
job from t
he moment the image was confirmed, to
being ready to
print.

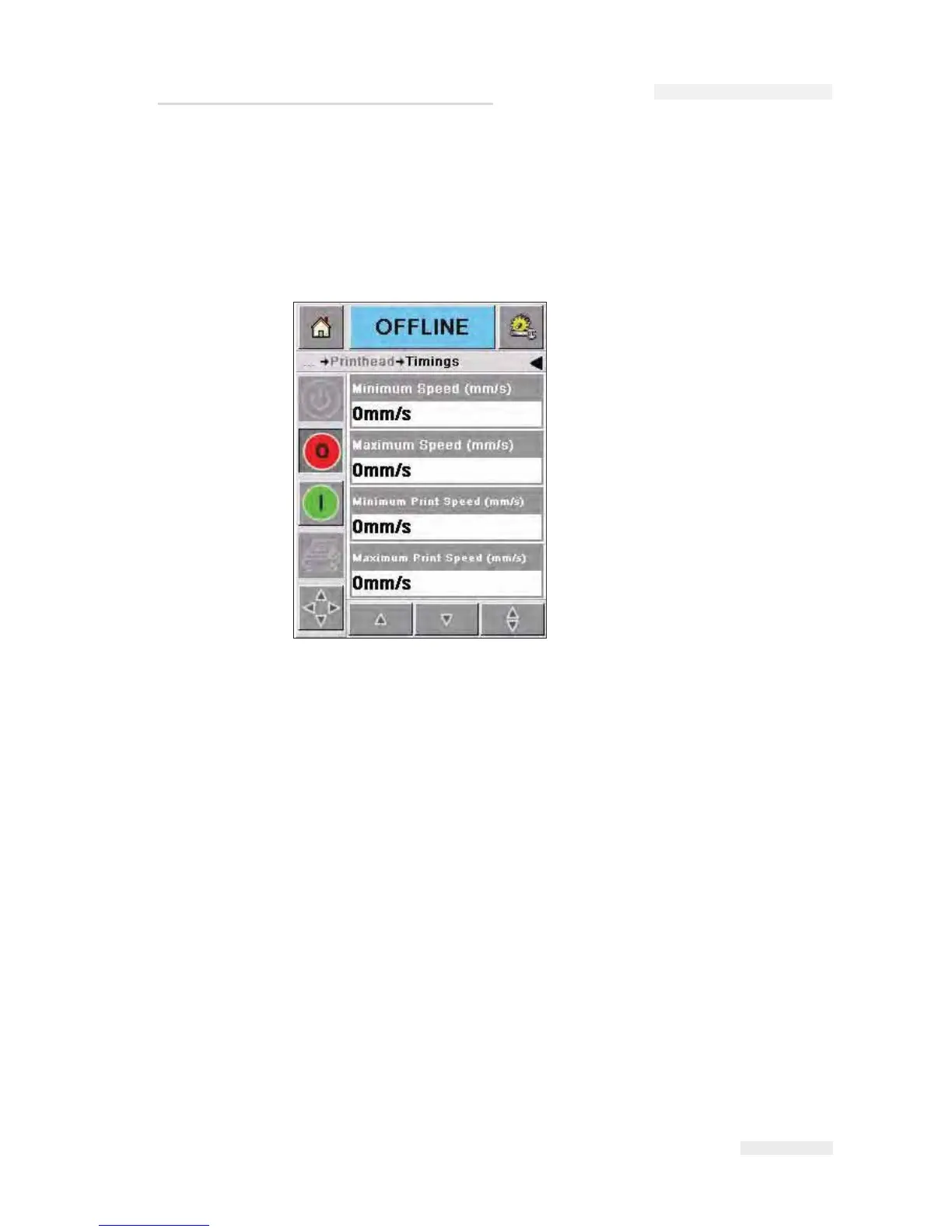

Figure 4-19: Printhead Timings Diagnostics Page
