Using the Tools Page

Rev AA

• Job Data Update Time (ms): Indicates the total time taken to update all

the dy

namic variables in the image (time, date, counters)

• Counter Update Time (ms): Indicates the time taken to update all

the

counter fields in the image

•

Time/Date Update Time (ms): Indicates the time taken to update all

the time/date fields in the image

The States

button in the printhead diagnostics screen is for software

debugging only and is not described in this manual.

Working with Consumables Diagnostics

Touch Consumable button on the Diagnostics page to access to the

Consumables diagnostics page (Figure 4-20).

The following parameters can be accessed in the consumables diagnostics

page:

• S

pool 1, 2 Diameters (0.1mm) are the measured diameters of the

ribbon

and can be compared

to the actual ribbon diameters after

calibration to determine the accurate functioning of the calibration

stem.

• Tension demand and measurement parameters are

for debugging

only and

are not described here

• Ribbon Tension Statistics: This is for soft

ware debugging only and is

not described here

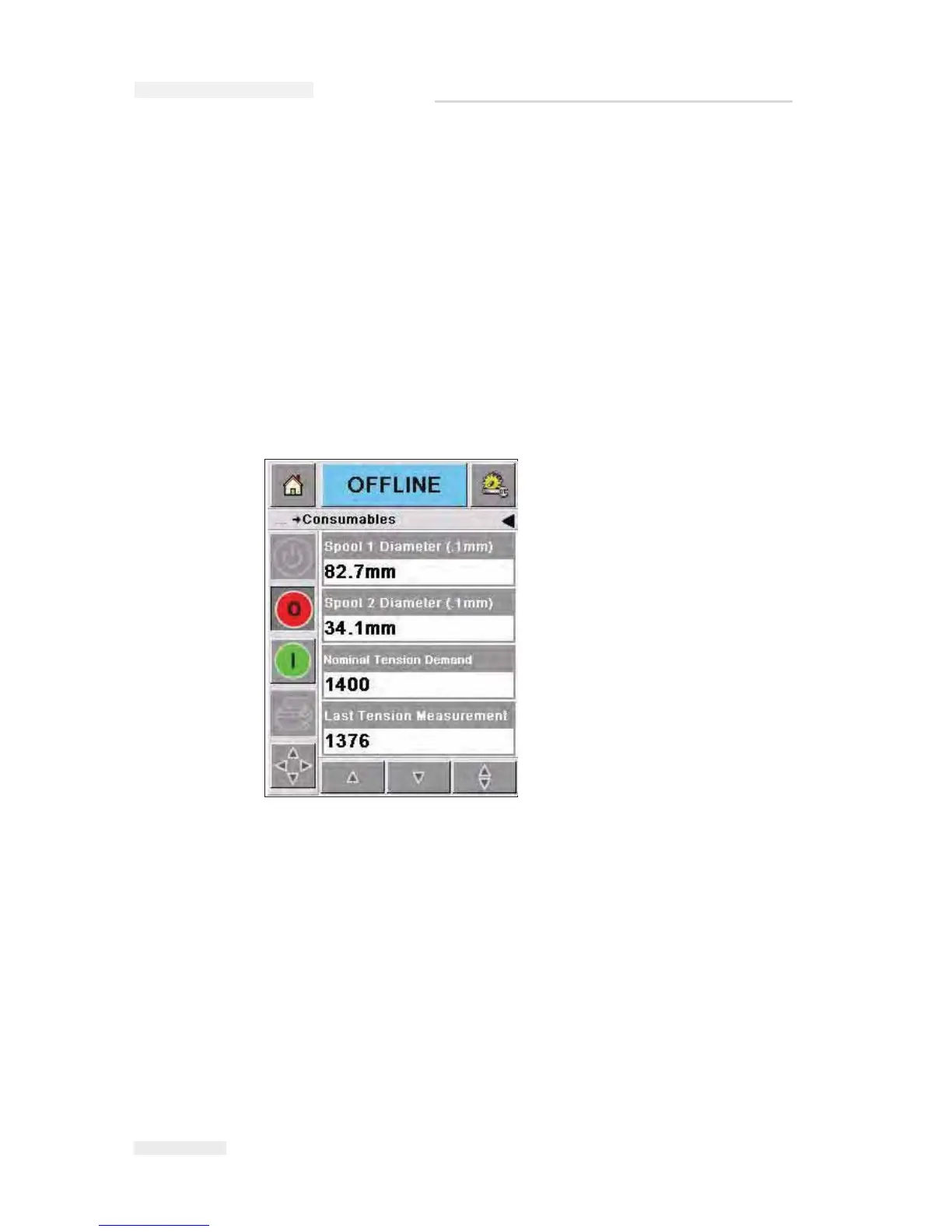

Figure 4-20: Printhead Consumables Diagnostics Page
