Maintaining the CLARiTY Controller
Rev AA
2 Remove the six securing screws from the D-type connectors on the
bottom of the CLARiTY unit (Figure 5-6).
3 Carefully remove the three connectors from the PCB taking care not to
bend or twist the cables (Figure 5-6).
D-Type Securing Screws

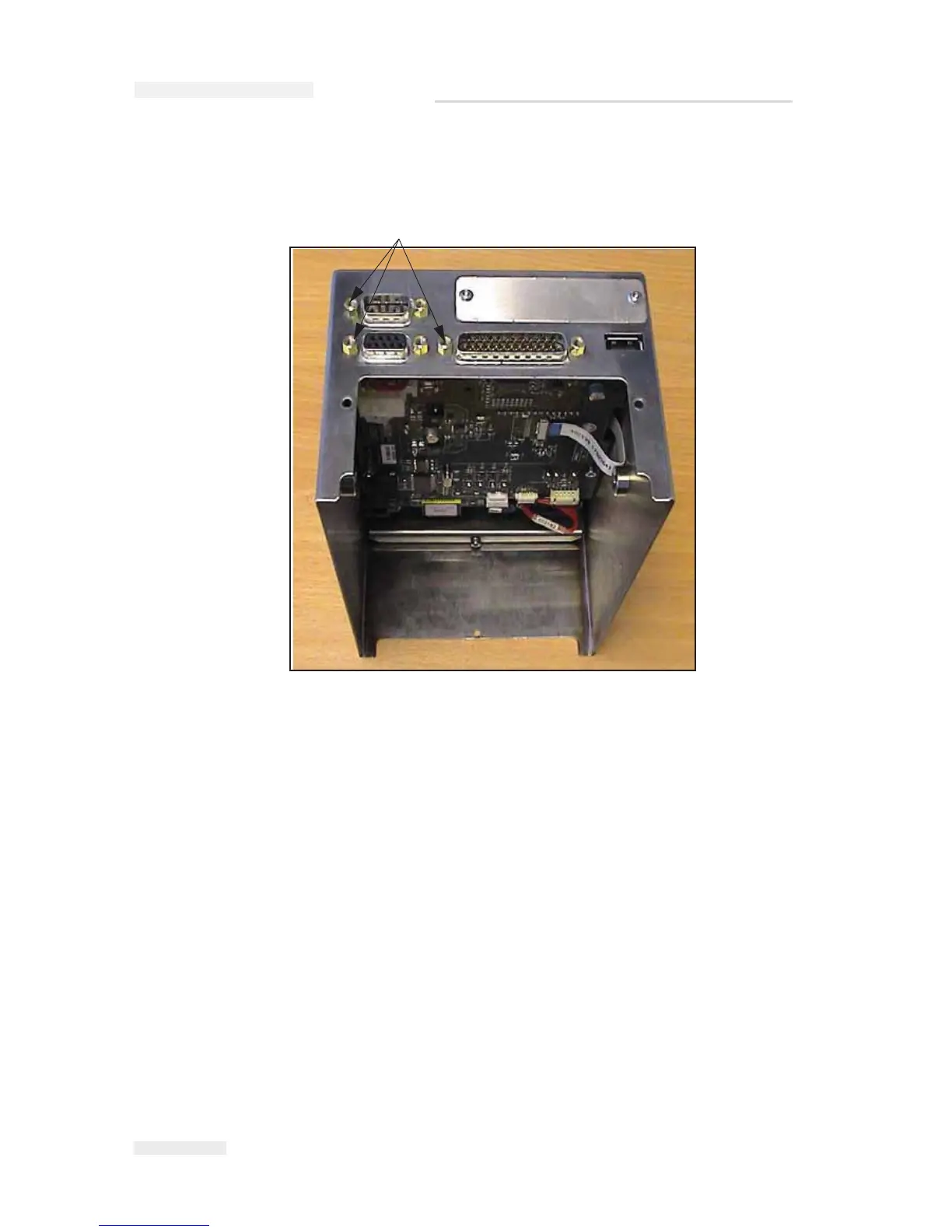

Figure 5-6: Top Case Detail
