Rev AA Maintaining the CLARiTY Controller 5-7

4 Remove and retain the two screws securing the PCB (Figure 5-7).

5 Gently slide and lift the PCB away from the LCD and touch screen

assembly taking care not to damage the three cables coming from the

LCD/Touchscreen module.

If replacing the Processor PCB then refer to section 13 below. If replacing

the LCD/Touchscreen Assembly then continue below.

Replacing the LCD/Touchscreen Assembly

6 Remove and retain the three screws and anti-vibration washers

holding the whole assembly and inverter module. Remove this

module from the case, taking care not to remove the seal around the

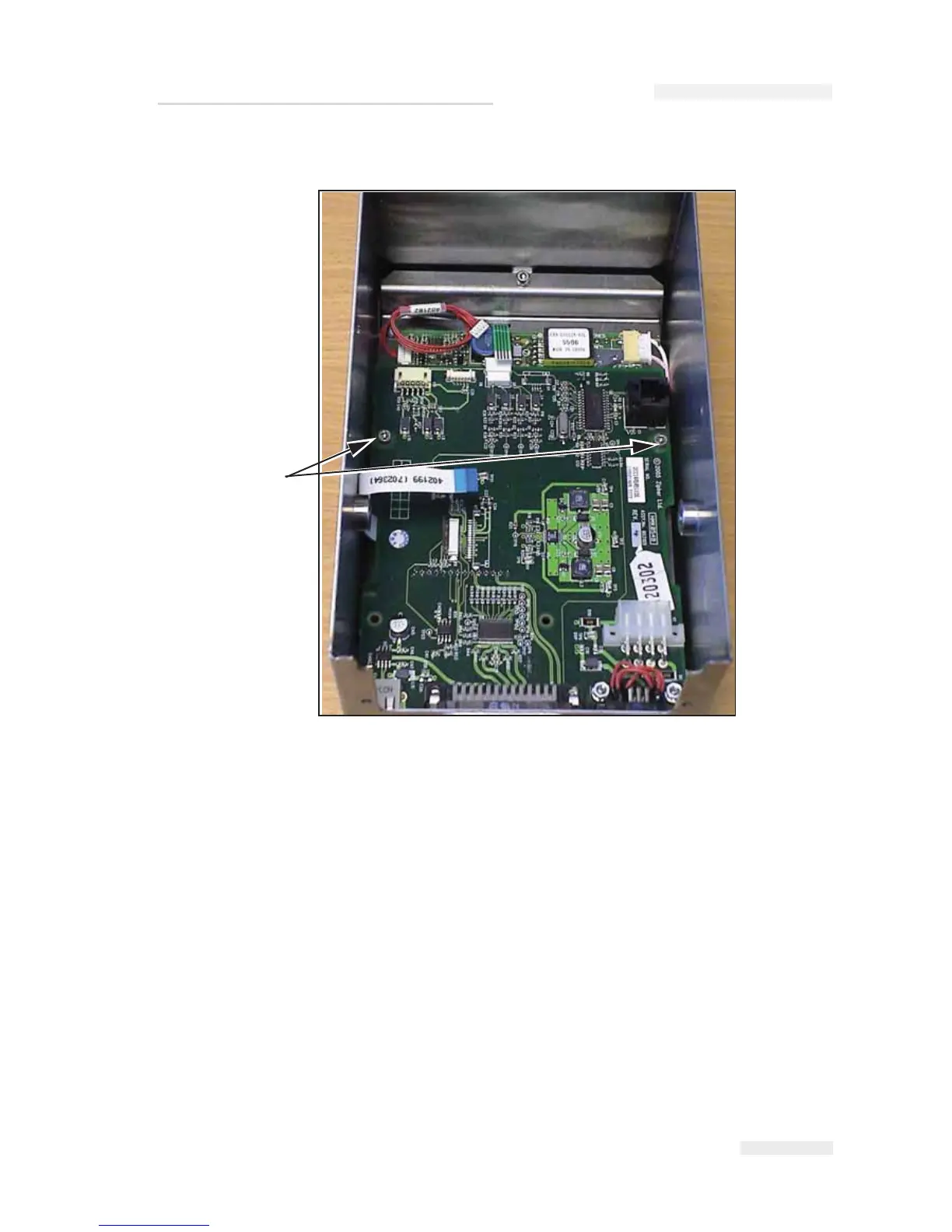

Figure 5-7: PCB Connections

Screws

CE Pegasus Service Manual
