Rev AA Maintaining the CLARiTY Controller 5-9
9 Remove and retain the white ribbon cable from the now separated
LCD/touchscreen assembly (Figure 5-9).
10 Place the new LCD/touchscreen assembly face down on a clean, soft
surface and fit the support plate using the four screws removed
earlier. Ensure that the touchscreen signal ribbon cable is carefully
routed through the slot in the base plate without damage (Figure 5-
10).

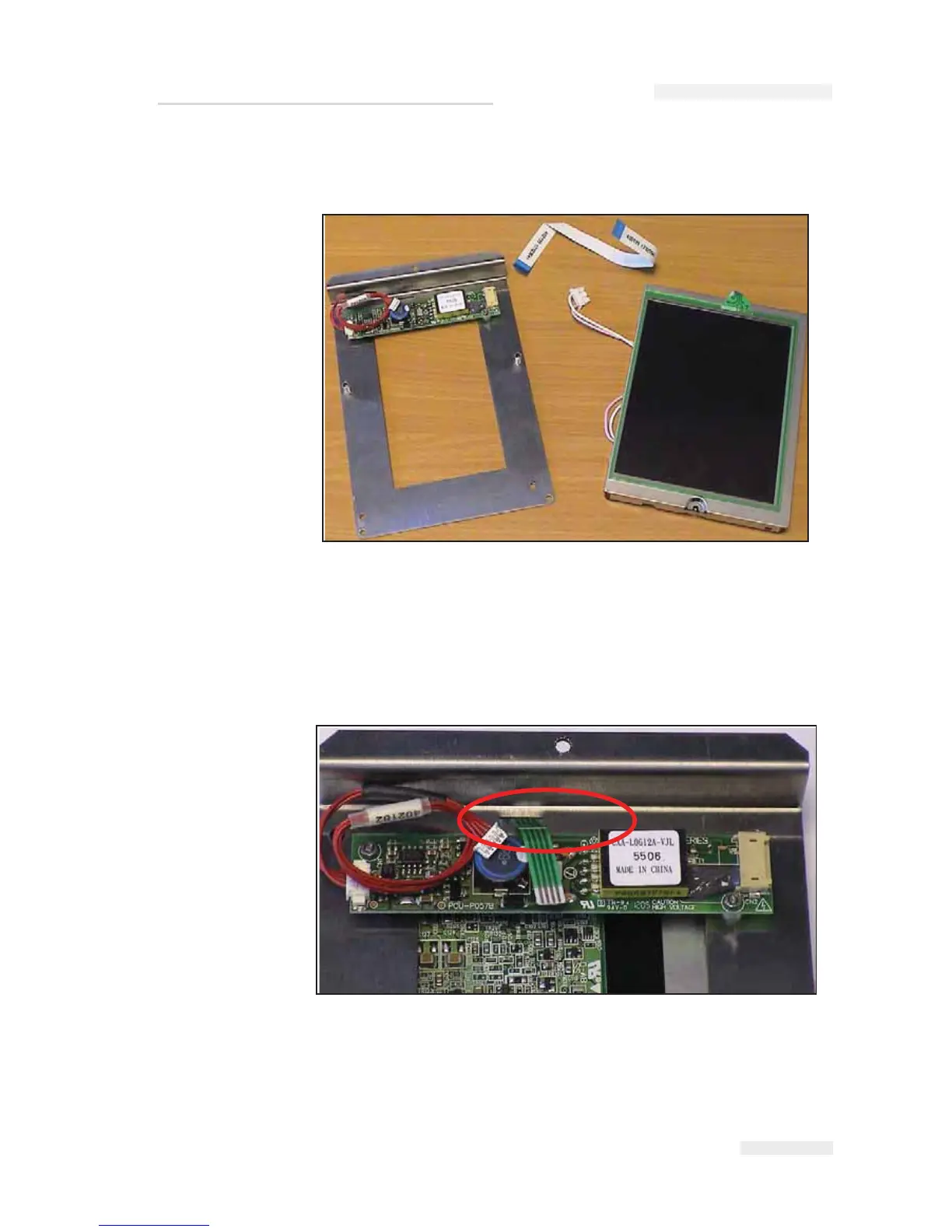

Figure 5-9: Separated LCD Assembly
Figure 5-10: Touch Screen Ribbon Cable Routing
I
CE Pegasus Service Manual
