3 Loosen and remove the ribbon guide, with a 12 mm spanner from the
cassette, as shown in Figure 5-25.
4 Remove the roller from the ribbon guide, as shown in Figure 5-26.
5 Place the new roller on the ribbon guide.
6 Install the ribbon guide on the cassette.
7 Replace the ribbon in the cassette.
8 Replace the cassette in the printer.

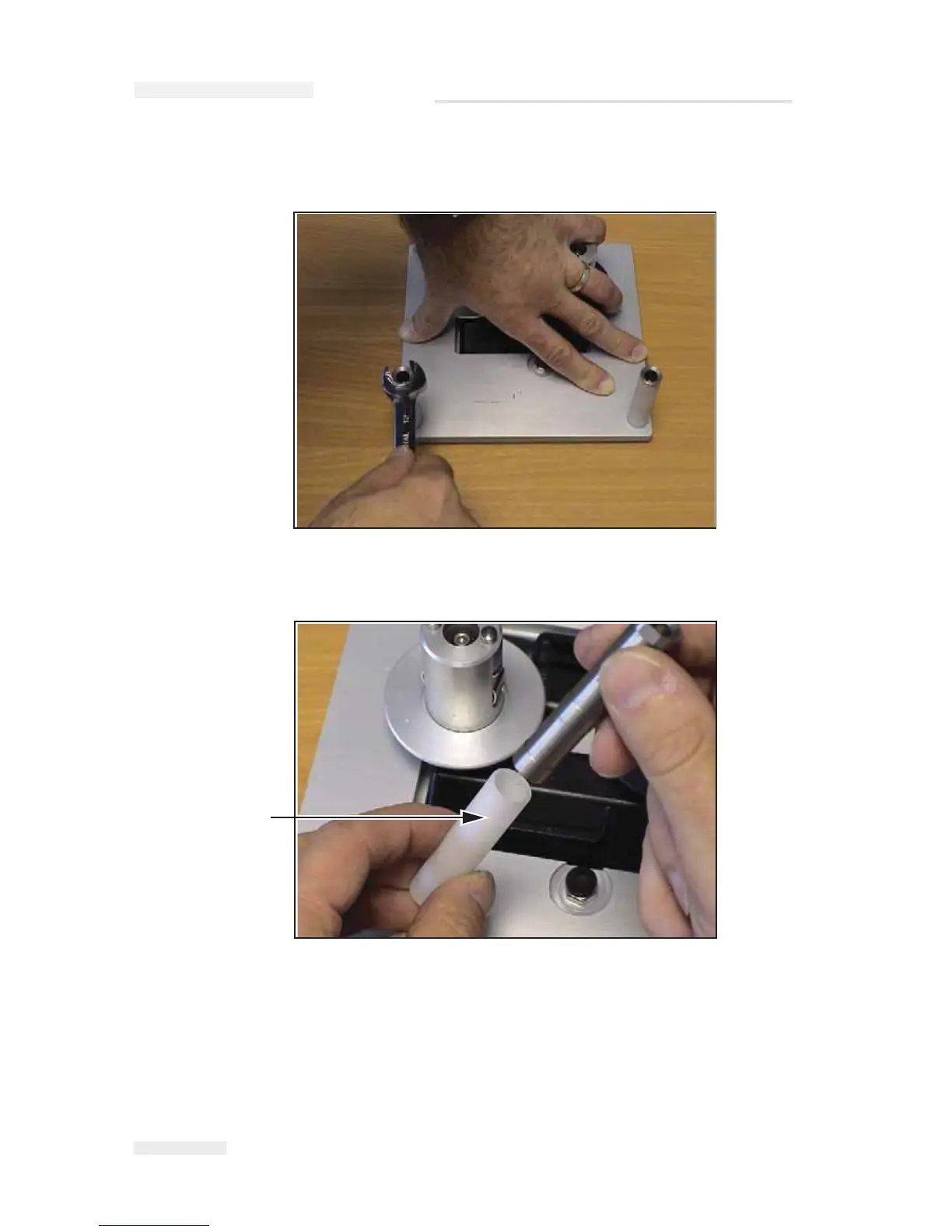

Figure 5-25: Roller Guide Removal
Roller
Figure 5-26: Roller Removal
