Icom IC-746 Instruction Manual

13
3
BASIC OPERATION

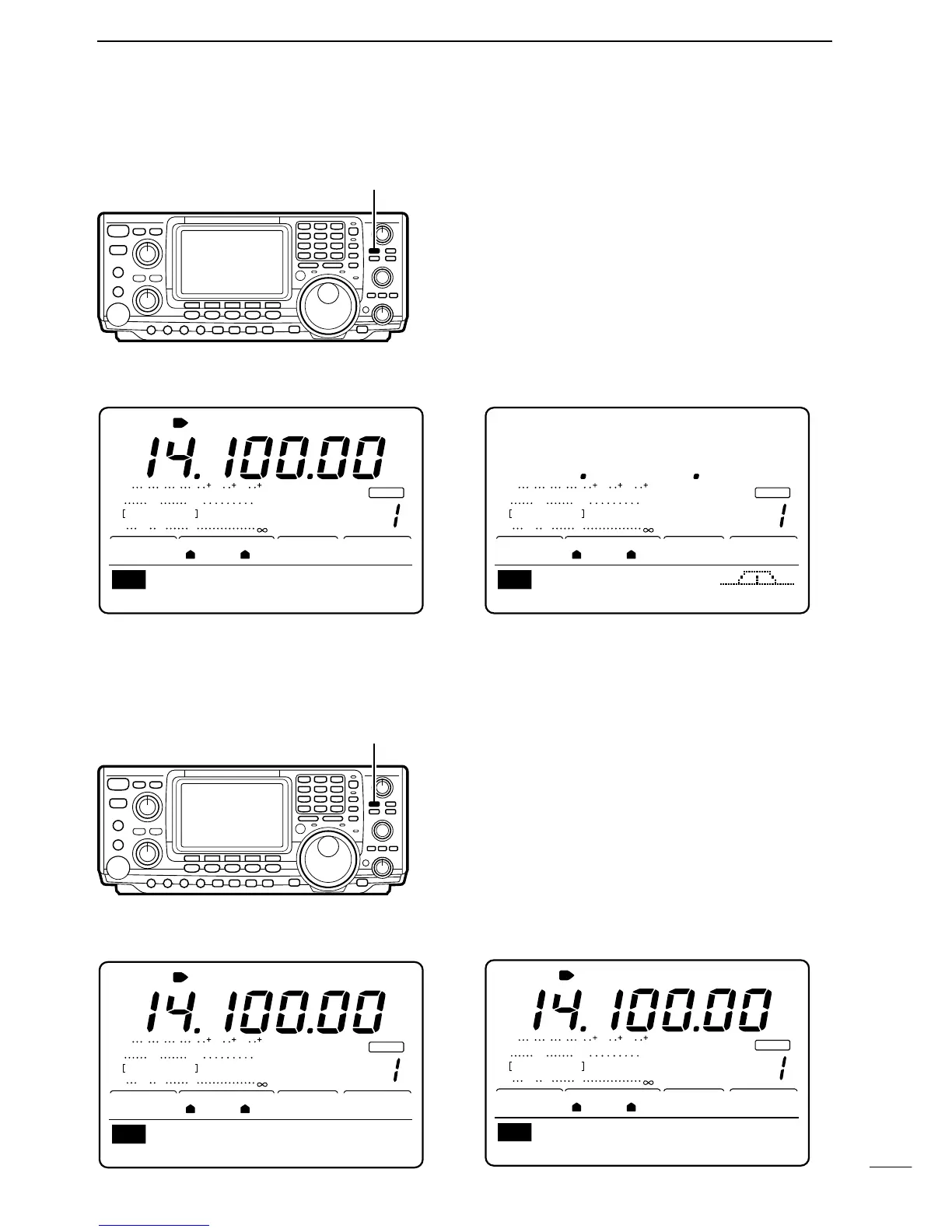

3-3 Selecting VFO/memory mode
[V/M]
■ VFO DISPLAY (default)
BLANK
CH
ANT
USB
AGCAMP
P.
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
1
1
S
M1
AGCDUPCMPTCNSCP
VFOA
■ MEMORY DISPLAY (default)
CH
AGCAMP
P.
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
1
S
M1
AGCDUPCMPTCNSCP
MEMO
BLANK
[A/B]
Rotating the tuning dial selects frequencies in VFO
mode or pre-programmed memories in memory mode.
Push [V/M] to toggle between memory and VFO
modes.
• Pushing [V/M] for 2 sec. transfers the contents of the se-
lected memory channel to VFO mode (p. 50).
3-4 Toggling between VFO A/B
and transferring contents
In VFO mode, VFO A or VFO B can be selected. In ad-
dition, contents can be transferred between them.
➥ Push [A/B] to toggle between VFO A and VFO B.
➥ Push [A/B] for 1 sec. to transfer the contents of the
displayed VFO to the undisplayed VFO.
BLANK
CH
ANT
USB
AGCAMP
P.
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
1
1
S
M1
AGCDUPCMPTCNSCP
VFOA
■ WHEN OPERATING IN VFO A
BLANK
CH
ANT
USB
AGCAMP
P.
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
1
1
S
M1
AGCDUPCMPTCNSCP
VFOB
■ WHEN OPERATING IN VFO B

Icom IC-746 Specifications

General

Mode	SSB, CW, RTTY, AM, FM
Receiver Type	Double conversion superheterodyne
Antenna Connector	SO-239
Voltage	13.8 V DC ±15%
Impedance	50 ohms
Output Power	100 W (SSB, CW, FM, RTTY), 40 W (AM)
Current Drain	TX: 20 A
Sensitivity	AM: 2 µV
Selectivity	CW: 500 Hz (-6 dB)
