MEMORY CHANNELS
7-10 Memo pads
The transceiver has a memo pad function to store fre-
quency and operating mode for easy recall.The memo
pads are separate from memory channels.The default
number of memo pads is 5 but can be increased to 10
in set mode, if desired.
➥ Push [MP-W] to store the displayed frequency and
operating mode into a memo pad.
• Each push of [MP-W] stores a frequency and mode into
the next available memo pad; when you write a 6th (or
11th) frequency and operating mode, the oldest written
frequency and operating mode are automatically erased
to make room for the new settings.
☞ NOTE: Each memo pad must have its own unique
combination of frequency and operating mode;
memo pads having identical settings cannot be writ-
ten.
AGC
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
M1
AGCDUPCMPTCNSCP
FM
F
CH
VFOA
ANT AM
1
ANT
1
1
USB
ANT
1
USB
ANT
1
USB
ANT
1
USB
memo pad cleared
[MP-W]

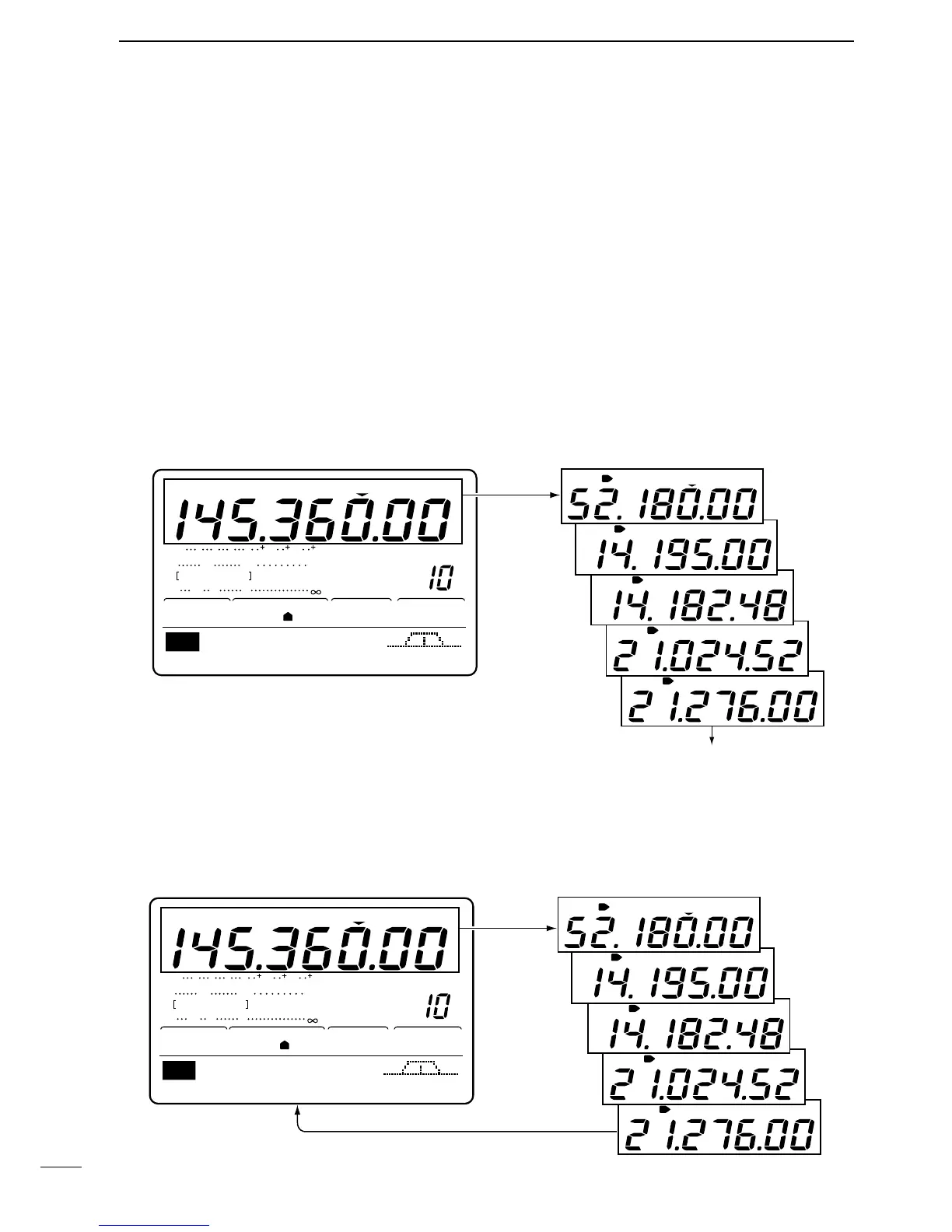

In this example, pushing [MP-W] enters FM 145.3600.00 MHz
into the top memo pad and clears the oldest memo pad.
• Displayed frequency and mode • Stored in next available memo pad
AGC
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
M1
AGCDUPCMPTCNSCP
FM
F
CH
VFOA
ANT AM
1
ANT
1
1
USB
ANT
1
USB
ANT
1
USB
ANT
1
USB
[MP-W]
[MP-R]
• VFO or memory mode • Memo pads
Å WRITING FREQUENCIES AND
OPERATING MODES INTO A MEMO PAD
ı RECALLING A MEMO PAD
➥ Push [MP-R] to recall a memo pad.
• Each push of [MP-R] recalls a memo pad, starting from
the most recently written.
