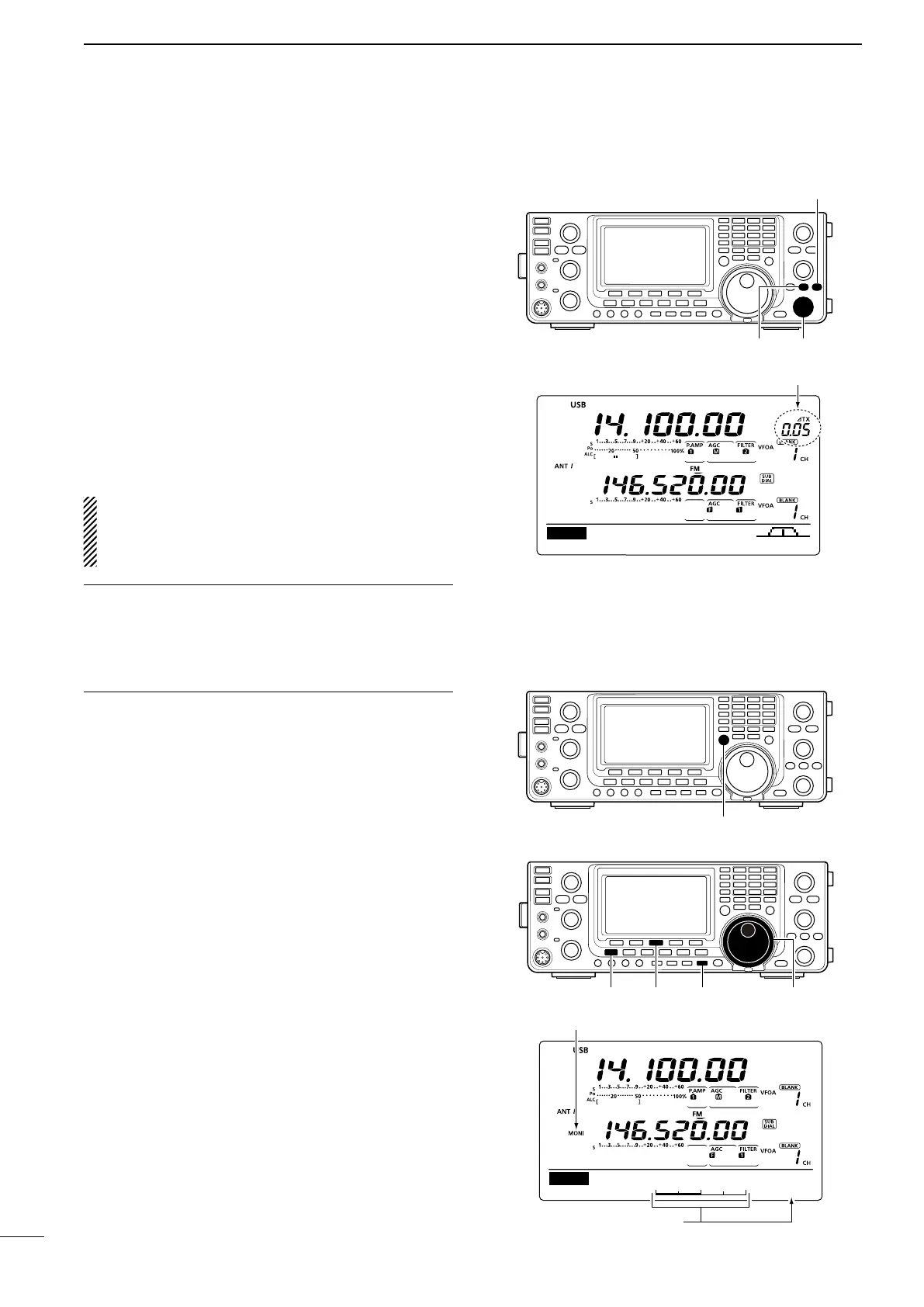

FUNCTIONS FOR TRANSMIT
■ ∂TX function
The ∂TX function shifts the transmit frequency up to
±9.99 kHz in 10 Hz steps* without changing the re-
ceive frequency.
* The [RIT/∂TX] control tunes in 1 Hz steps when the operating
frequency readout is set to the 1 Hz step readout. However,
the 1 Hz digit is not displayed on the frequency shift readout.
q Push [∂TX] to turn ON the ∂TX function.
 •“∂TX” and the frequency shift appear when the function
is ON.
w Rotate [RIT/∂TX].
e To reset the ∂TX frequency, hold down [CLEAR] for
1 second.
 •Push[CLEAR]momentarilytoresetthe∂TX frequency
when the Quick RIT Clear function is ON. (p. 164)
r To cancel the ∂TX function, push [∂TX] again.
 •“∂TX” and the frequency shift disappear.
When the RIT and ∂TX functions are ON at the same
time, [RIT/∂TX] shifts both the transmit and receive
frequencies from the displayed frequency at the same
time.
✔ For your convenience— Calculate function
The frequency shift of the ∂TX function can be added
to or subtracted from the displayed frequency.
➥ While displaying the ∂TX frequency shift, hold
down [∂TX] for 1 second.
D ∂TX Monitor function
When the ∂TX function is ON, holding down [XFC] al-
lows you to listen to the transmit frequency (including
the ∂TX frequency offset).
■ Monitor function
The Monitor function allows you to monitor your trans-
mit IF signals in any mode. Use this to check voice
characteristics while adjusting transmit parameters.
(p. 169)
The CW sidetone functions regardless of the [MONI-
TOR] setting.
q Push [MONITOR] to turn ON the Monitor function.
 •“MONI”appearswhentheMonitorfunctionisON.
w Hold down [MONITOR] for 1 second to display the
“MONI” screen (Monitor).
e Rotate [MAIN DIAL] to adjust the monitor level.
 •For the clearest audio output, adjust while holding
down [PTT] and speaking into the microphone.
 •Holddown[F-3]for1secondtoresettothedefaultset-
ting, if desired.
r Push [MENU] to return to the previous menu.
[∂TX] [RIT/∂TX]
[CLEAR]
DUPAGC COMP TBW SCP
M1
Appears
[XFC]
[MONITOR] [MAIN DIAL][MENU] [F-3]
Shows the monitor level
50%
MONI
MONITOR Level
Appears
