IDS uEye series User Manual

© 2009 IDS Imaging Development Systems GmbH162
User Manual uEye Cameras V3.32
OEM Version (PCB Stack)
CMOS/CCD cameras
9,5
19,8
4,7

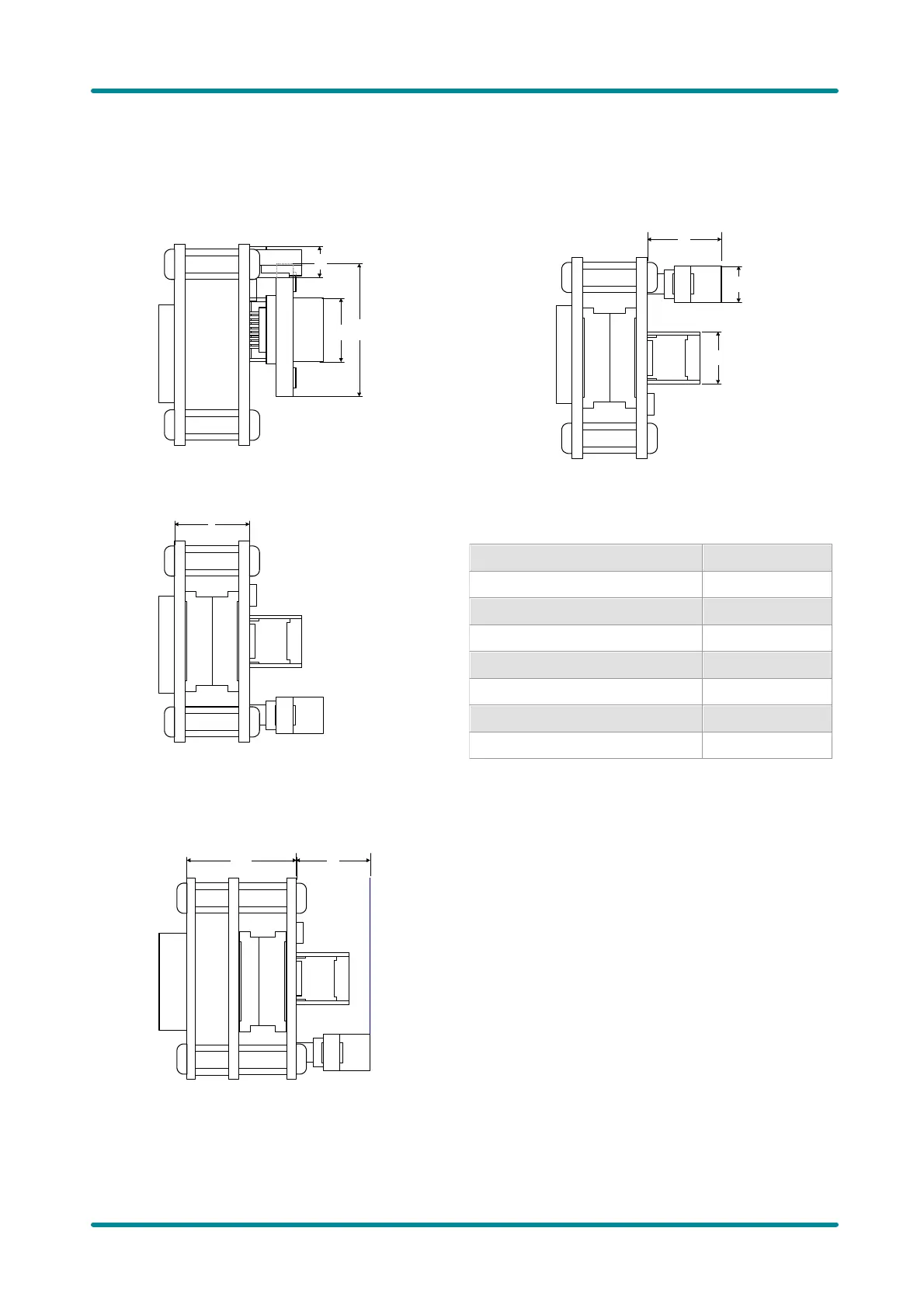

Figure 123: Side view
5,4
7,7
11
Figure 124: Top view
X
Figure 125: Bottom view
Value of distance X (model-dependent)
Camera model
Distance X
UI-1222 (sensor version V022)
12.3 mm
UI-1222 (sensor version V032)
13.5 mm
UI-1542
13.4 mm
UI-1642
13.1 mm
UI-1552
13.1 mm
UI-1462
13.3 mm
UI-1482
12.8 mm
CCD cameras
16,3
11
Figure 126: Bottom view
