© 2009 IDS Imaging Development Systems GmbH210
User Manual uEye Cameras V3.32

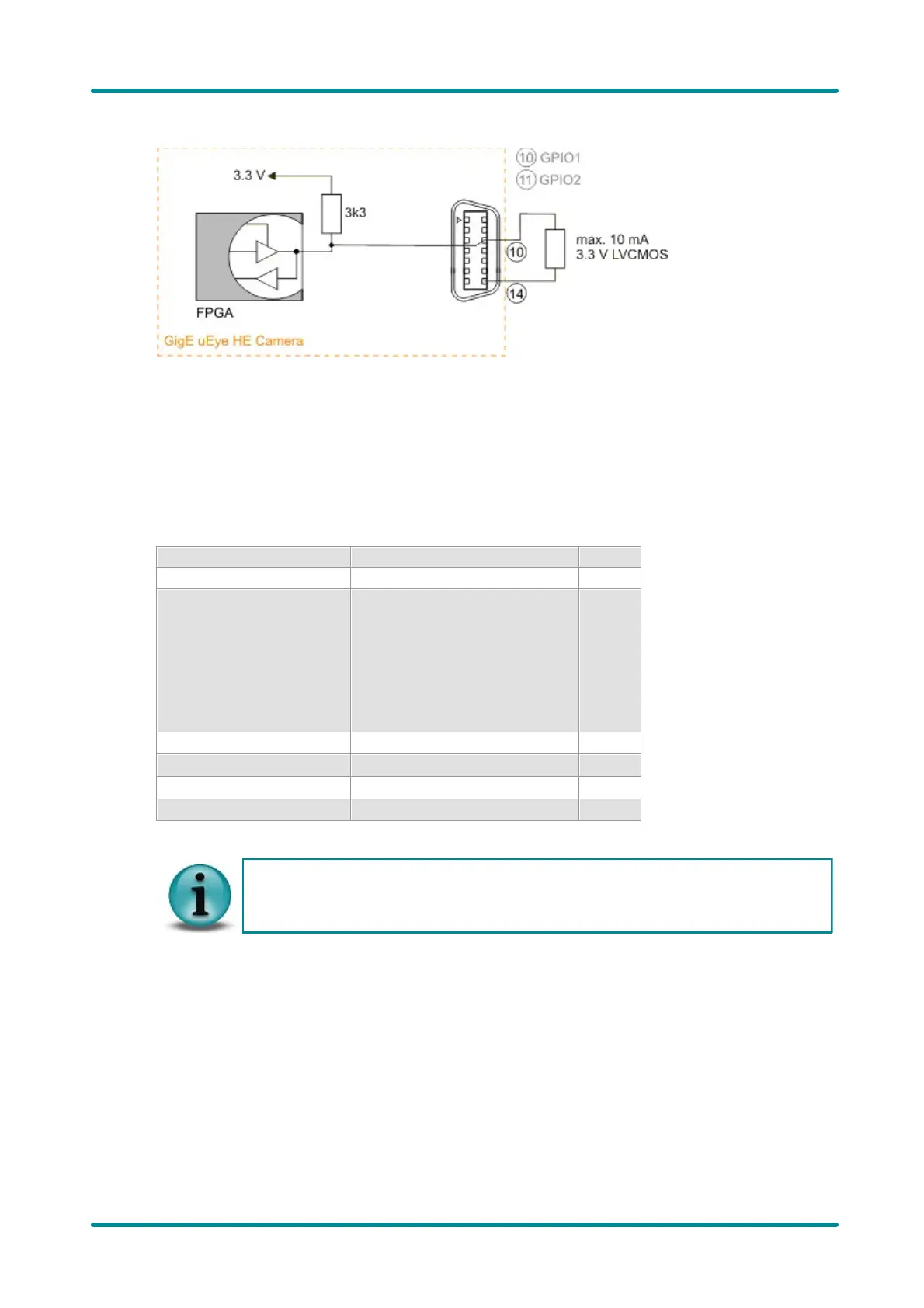

Figure 201: GPIO output
Serial Interface Wiring (RS232)
Serial interface specifications
Minimum output voltage
±33.5
V
Maximum input voltage
±315
V
Supported baud rates
1,200
2,400
4,800
9,600
19,200
38,400
57,600
115,200
baud
Transmission mode
Full duplex, 8N1
Data bits
8
Stop bits
1
Parity
None
With the 8N1 mode, the maximum payload data rate achievable is 80% of the selected
baud rate.
