IDS uEye series User Manual

© 2009 IDS Imaging Development Systems GmbH80
User Manual uEye Cameras V3.32
Zoom Window
Select View menu ® Zoom window to open the Zoomwindow. This window shows an enlarged view of
the image area at the selected cursor position. Using the slider at the top of the window, you can set
the zoom factor in the range between 0.25 and 20.00. The size of the image area depends on the
selected size of the Zoom window.
If you enable the Pixel Peek check box at the top of the zoom window, the color values at the cursor
position are displayed (see Pixel Peek Window).
To set the cursor position you want to display in the window, place the cursor at that position in the
image, hold the b key and right-click. Alternatively, you can set the image position using the
context menu.

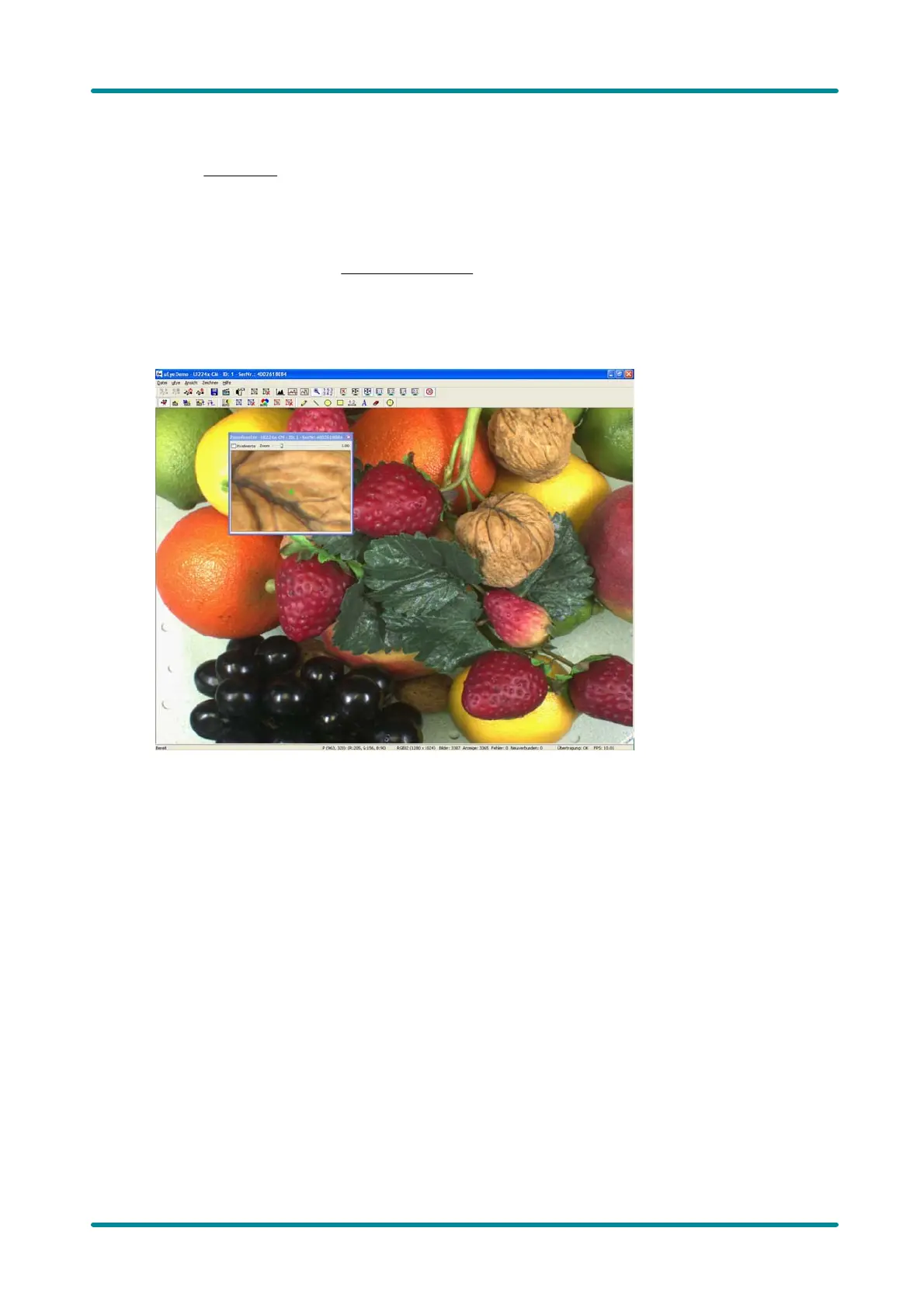

Figure 70: View menu – Zoom window

IDS uEye series Specifications

General

Sensor	CMOS
Interface	USB 2.0, USB 3.0, GigE
Shutter	Global or Rolling Shutter
Power Supply	Via USB or external power (depending on model)
Operating System	Windows, Linux
Mount	C-mount or CS-mount
Dimensions	29 x 29 x 29 mm
