© 2009 IDS Imaging Development Systems GmbH96
User Manual uEye Cameras V3.32
Hardware LUT
This tab provides settings for the hardware LUT curve of the GigE uEye HE camera. Each look-up
table (LUT) for the uEye contains modification values for the image brightness and contrast
parameters. When a LUT is used, each brightness value in the image will be replaced by a value
from the table. LUTs are typically used to enhance the image contrast or the gamma curve.
This feature is only available for GigE uEye HE cameras.

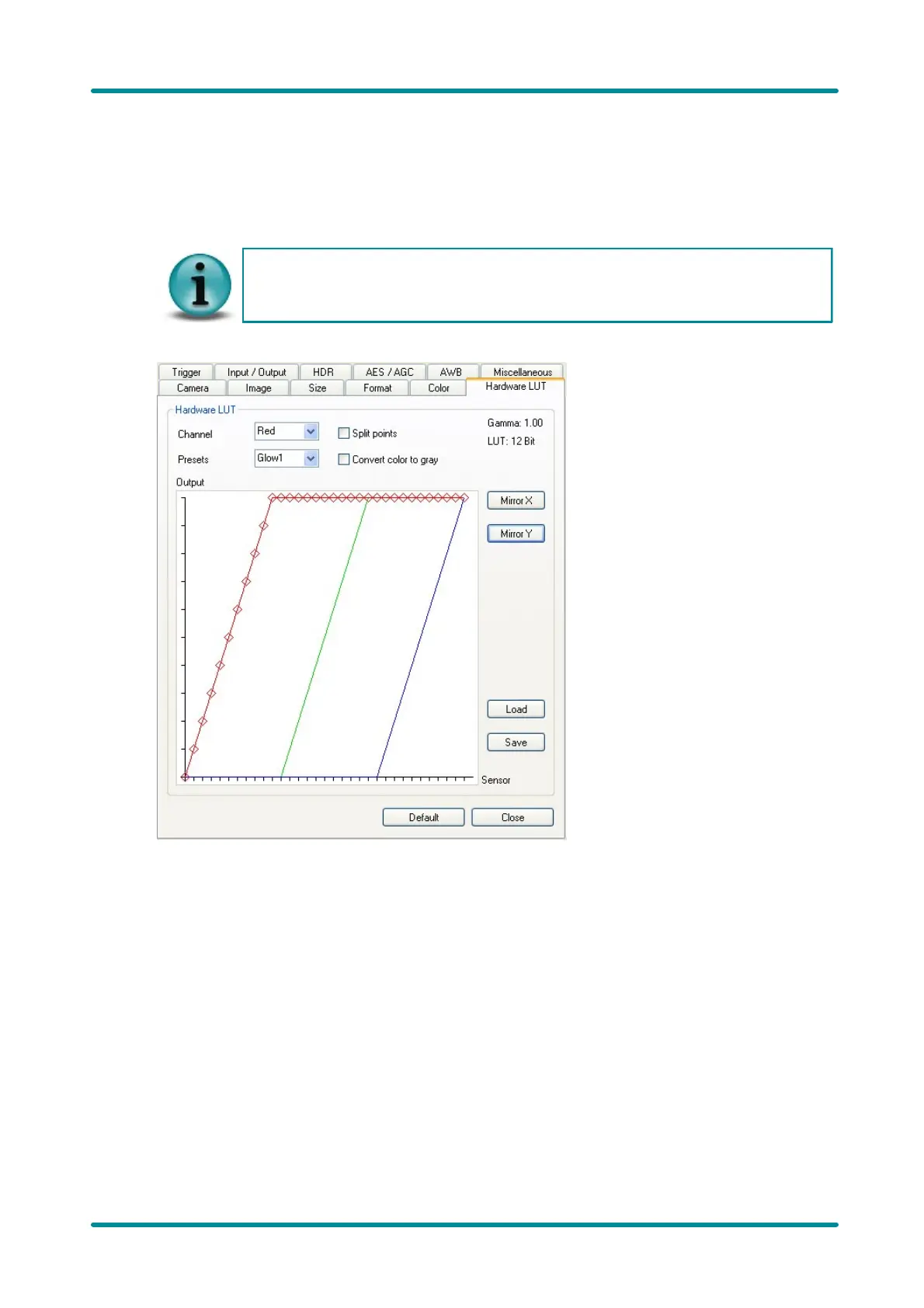

Figure 80: uEye properties - Hardware LUT
· Channel
In this drop down box, you can choose whether you want to display the LUT for all channels or just
for red, green or blue.
· Split points
The LUT has 32 knee points by default. Knee points are used for defining the individual sections of
the curve. When you select the Split points check box, each knee point is split into two separate
points. Only the start and end points of each curve section can be defined independently of the
adjacent sections.
· Presets
In this drop down box, you can select and load predefined LUT curves. The following LUT curves
are available:
