ROCKY-4786EV/EVG User Manual
Page 34

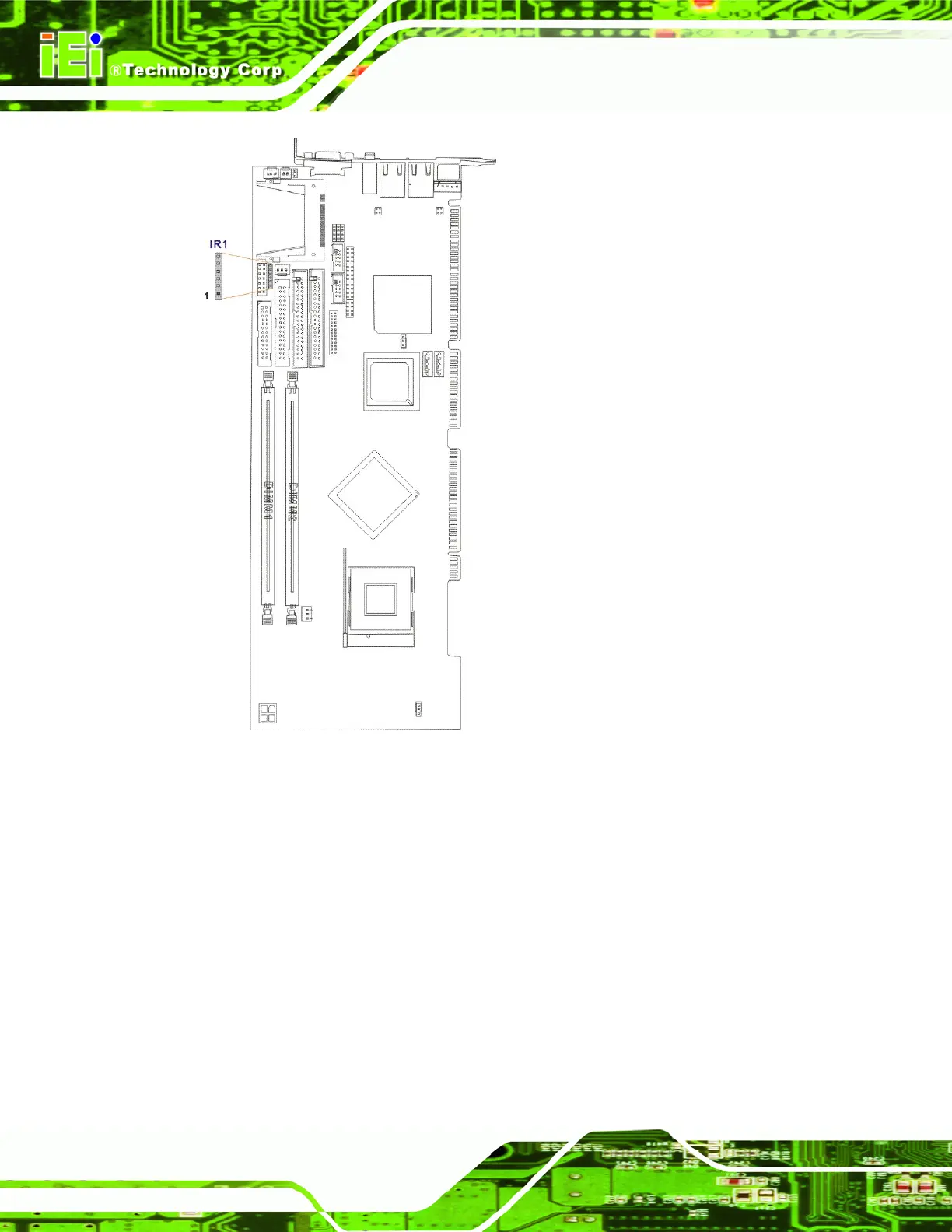

Figure 3-10: IrDA Connector Location
3.2.10 SATA Drive Connectors
CN Label: SATA1, SATA2
CN Type: 1x7 pin port
CN Location: See
Figure 3-11
CN Pinouts: See
Table 3-12
The SATA drive ports provide connectivity to SATA drives with a maximum data transfer
rate of 150MB/s.
