ROCKY-4786EV/EVG User Manual
Page 70
The Base Memory is NOT user configurable. The POST will determine the amount of
base (or conventional) memory installed in the system. The value of the base memory is
typically 512K for systems with 512K memory installed on the CPU card or 640K for
systems with 640K or more memory installed on the motherboard.
Extended Memory
The Extended Memory is NOT user configurable. The BIOS determines how much
extended memory is present during the POST. This is the amount of memory above 1MB
located in the memory address map of the CPU.
Total Memory
The Total Memory is NOT user configurable.
5.2.1 IDE Channel Master
The IDE Channel Master menu (BIOS Menu 3) allows you to set or change the
configurations for the master and slave IDE devices for both channel 0 and channel 1.

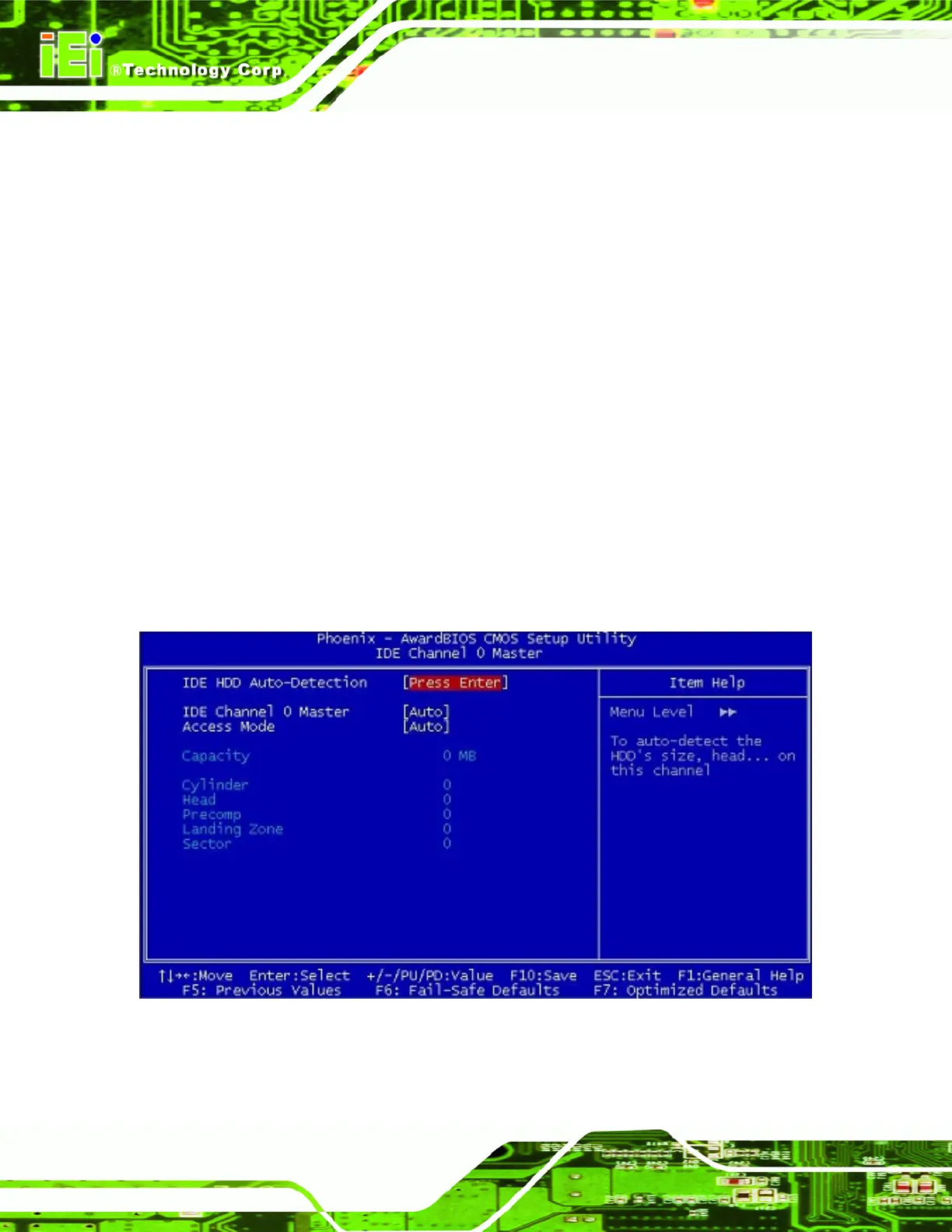

BIOS Menu 3: IDE Channel Master
IDE HDD Auto-Detection [Press Enter]
