ROCKY-4786EV/EVG User Manual
Page 44
3.3.4 VGA Connector
CN Label: VGA1
CN Type: See
Figure 3-17
CN Location: See
Figure 3-14 (labeled number 4)
The standard 15-pin VGA connector connects to a CRT or LCD display monitor.
PIN DESCRIPTION PIN DESCRIPTION
1 Red 9 No Connect
2 Green 10 Ground
3 Blue 11 No Connect
4 No Connect 12 DDC DAT
5 Ground 13 Horizontal Synchronization
6 Ground 14 Vertical Synchronization
7 Ground 15 DDC Clock
8 Ground
Table 3-18: VGA Connector Pinouts

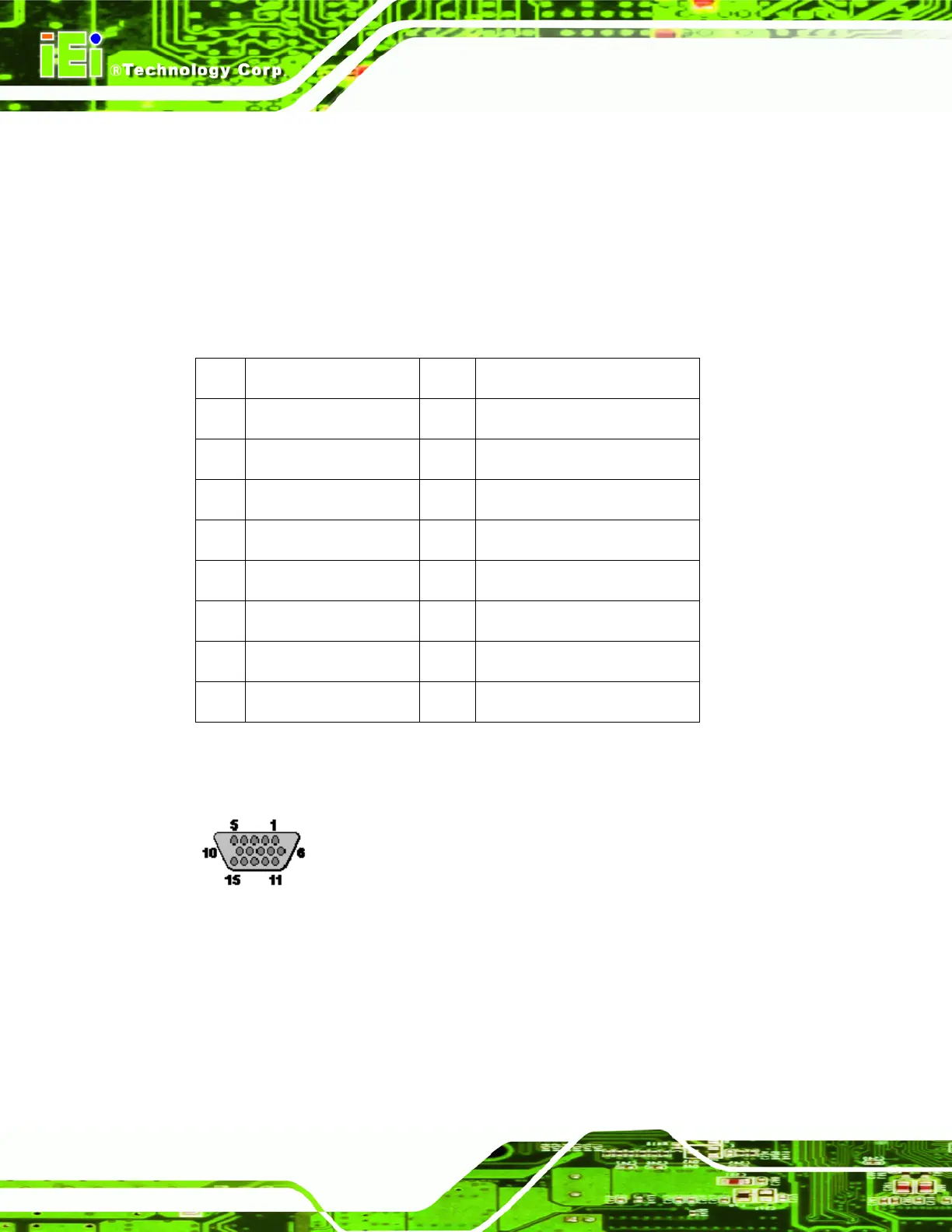

Figure 3-17: VGA Connector
