ROCKY-4786EV/EVG User Manual
Page 42
The PS/2 mouse and keyboard connectors are connected to a mouse and keyboard
PIN DESCRIPTION PIN
DESCRIPTION
1 KB Data 2 N/C
3 GND 4 +5V
5 Clock 6 N/C

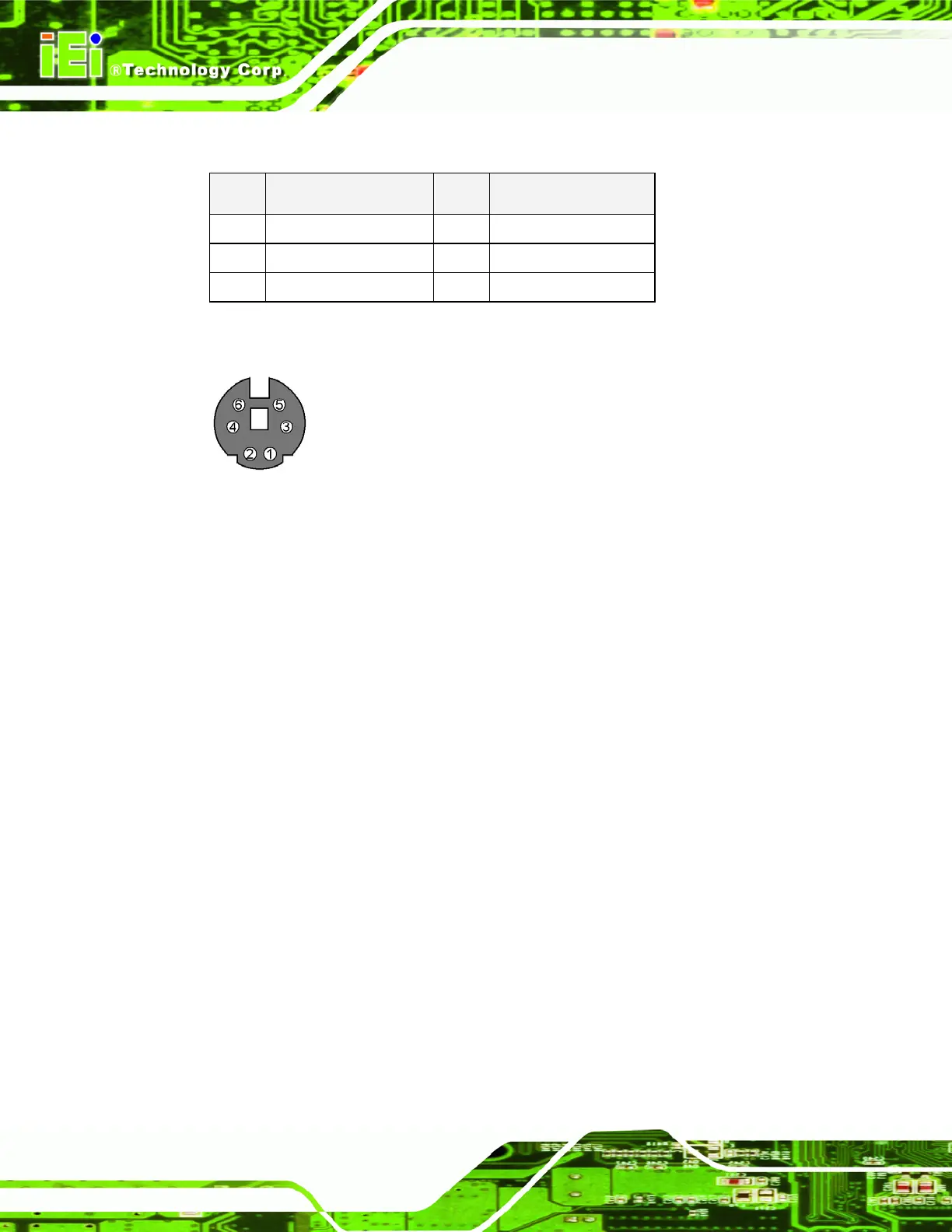

Table 3-15: PS/2 Pinouts
Figure 3-15: PS/2 Pinout locations
3.3.2 Ethernet Connectors
CN Label: LAN1, LAN2
CN Type: RJ-45
CN Location: See
Figure 3-14 (labeled number 2)
CN Pinouts: See
Table 3-16
Two 1Gb connections can be made between the Ethernet connectors and a Local Area
Network (LAN) through a network hub. An RJ-45 Ethernet connector is shown in
Figure
3-16.
