Ehave Series Full Digital IGBT CO
2
/MAG/MMA Multifunctional Inverter Welder User Manual
Front view Side view Rear view

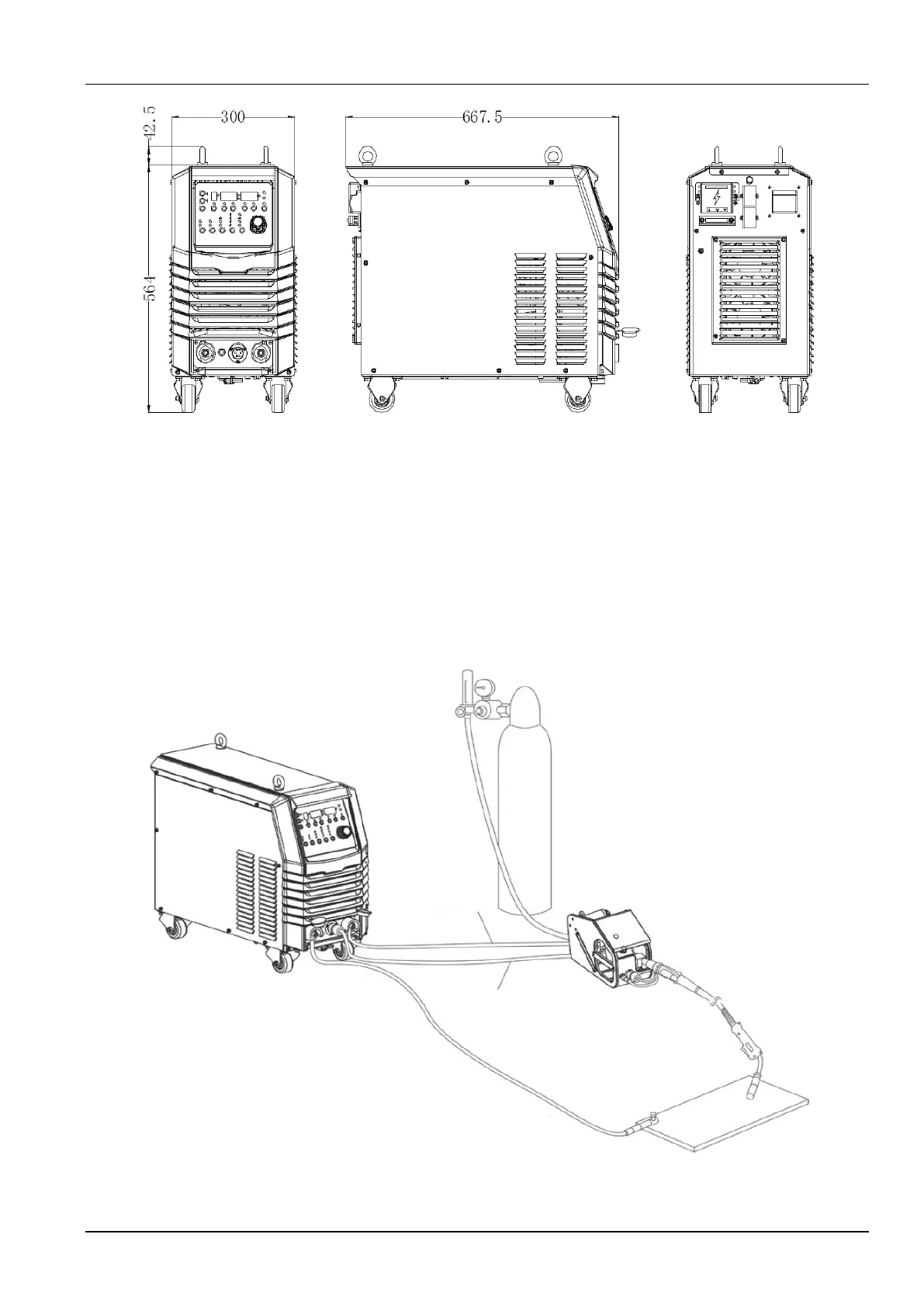

Figure 1-2 Welder dimensions (unit: mm)
1.4 System Components and Configuration
1.4.1 System Components
Figure 1-3 shows the components of the welding system.
Gas flow meter
Gas tube
Shielding
gas
Wire feeder
Welding power cable
on the wire feeder side
Control power cable on
the wire feeder side
Welding power
cable on the
workpiece side
Workpiece
Figure 1-3 System components
