22 Chapter 2 Installation and Cabling
Ehave Series Full Digital IGBT CO
2
/MAG/MMA Multifunctional Inverter Welder User Manual
Input terminal cover
Input power
cable clamp
Power switch
of the
distribution box
Grounding
cable
Input power cable

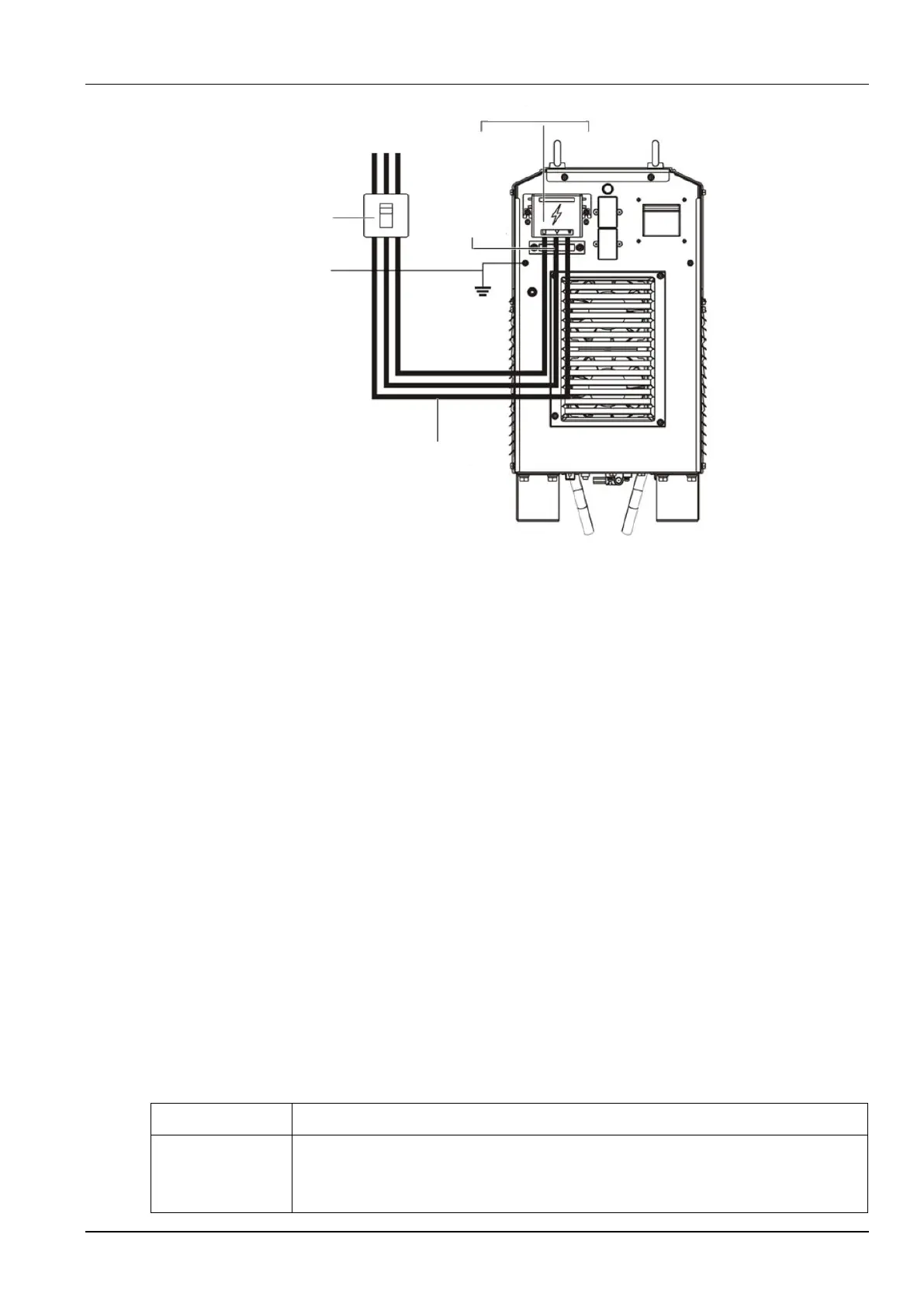

Figure 2-10 Schematic diagram of connecting the power cable on the power input side
2.7 Welding Preparation
2.7.1 Safety Measures
Protection Tools
Use ventilation devices or respiratory protection tools according to regulations to prevent
gas poisoning, hypoxia, and dust poisoning.
When performing or supervising welding, use protection tools or wear goggles with
sufficient shading degree.
Wear goggles to prevent spatters or welding slag from injuring your eyes.
Use protection gears such as welding-dedicated protection leather gloves, clothes with
long sleeves, foot protection, and aprons.
Set up protective barriers around welding sites to prevent arc from injuring others.
Use soundproof devices to prevent noise hazards.
Use windbreak at the welding site to prevent wind from affecting the welding quality if a
ventilator is used or the outdoor welding environment is windy.
For selection of light filters for the CO
2
/MAG welding mask, see Table 2-5.
Table 2-5 Selection of light filters for the GB-T3609-1994 welding mask
Arc Welding and Cutting Task
Protection against sidelight and stray light
