IGBT CO2 - Appendix IV Components

Appendix IV Components 75
Ehave Series Full Digital IGBT CO
2
/MAG/MMA Multifunctional Inverter Welder User Manual
Appendix IV Components
25
Output EMC board
24
Display board
23
Large line-frequency
transformer
22
Fan control board
21
Air circuit breaker
20
Cable terminal cover
19
Cable terminal block
18
Input EMC board
17
Small line-frequency
transformer
16
Wire inching control board
15
Main power board
14
3-phase rectifier bridge
13
Negative output terminal
12
Fuse base
11
7-core aviation plug
10
Positive output terminal
9
Diode
8
Output absorption board
7
Inductor
6
Cable terminal block
5
Fan
4
Hex key
3
Caster
2
Plastic panel
1
ZA chassis without load

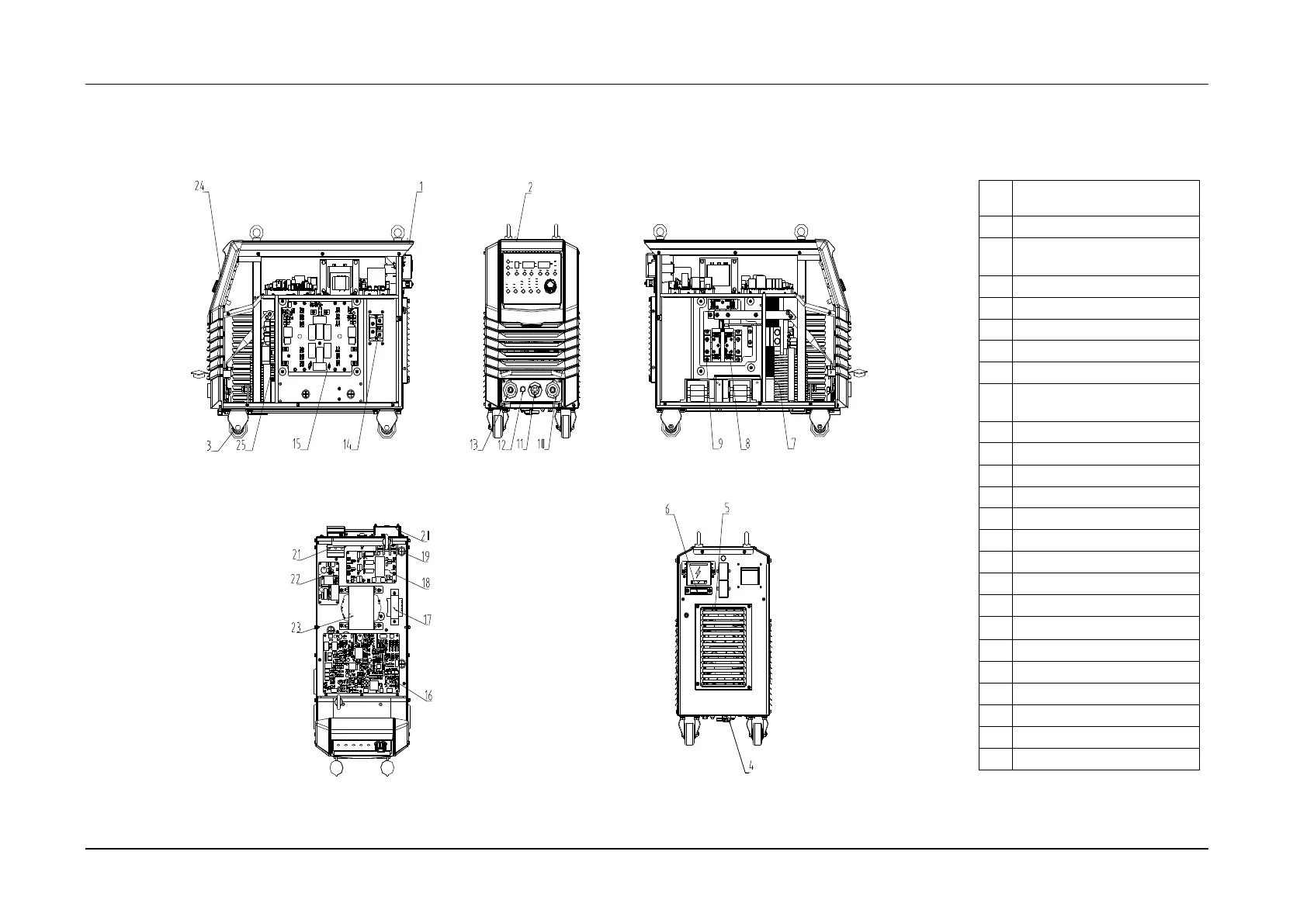

Figure 1 Components
