38 Chapter 3 Welder Operation Description
Ehave Series Full Digital IGBT CO
2
/MAG/MMA Multifunctional Inverter Welder User Manual

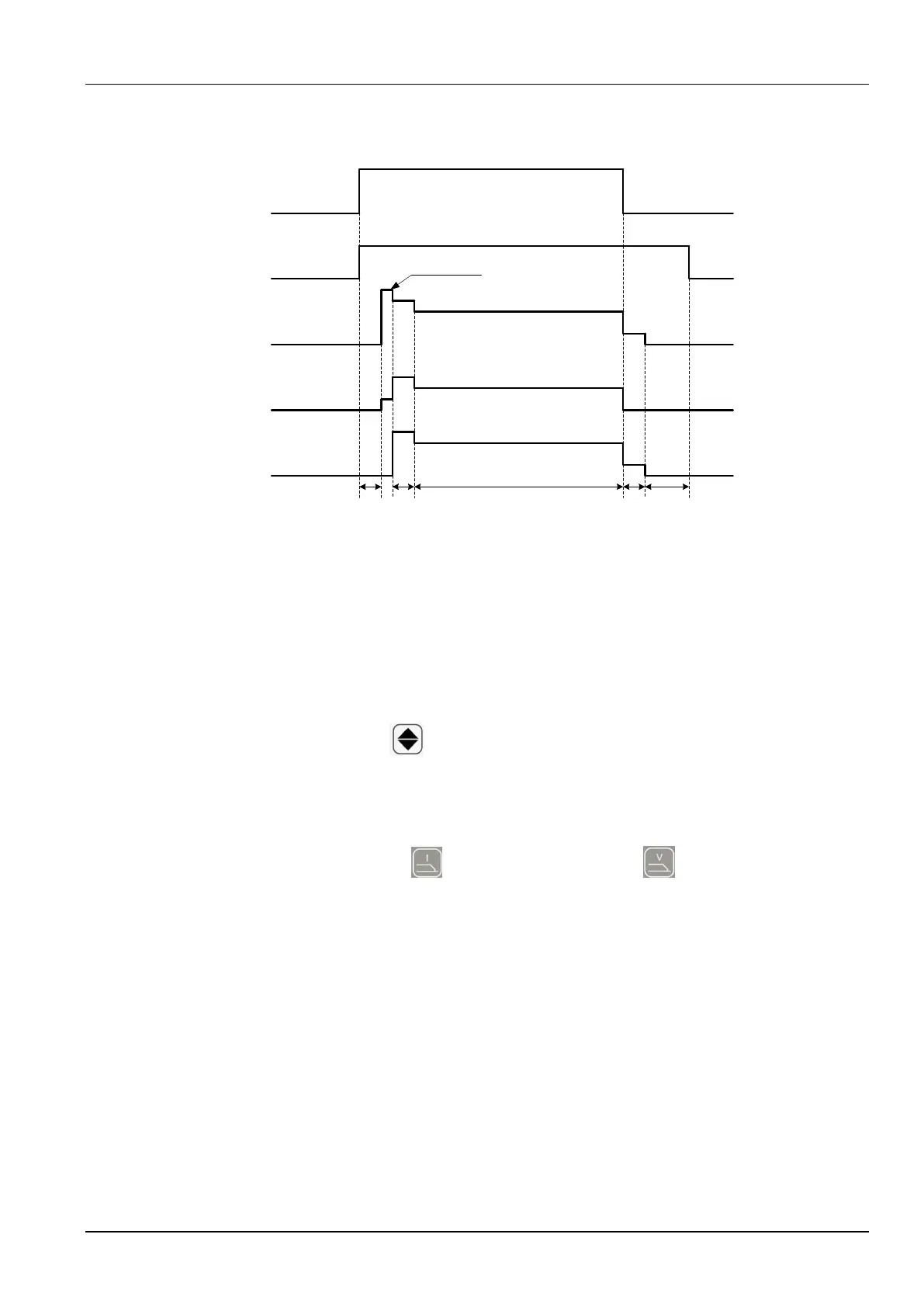

Figure 3-9 shows the welding logic.
Welding
torch
switch
Gas
sending
Welding
voltage
Wire
inching
speed
Welding
current
Send gas
before welding
Open circuit voltage
Starting
arc
Weld
Wire sticking
prevention
OFF
ON
OFF
Delayed gas
sending
Figure 3-9 Logic for welding without ending arc
3.4.4 Welding with Ending Arc
After welding, you can use ending arc to fill up the craters and arc holes created during welding.
Four steps must be performed, including turning on and turning off the welding torch.
The procedure is as follows:
1. Press the Welding control button and switch to the mode of welding with ending arc.
2. Use the current and voltage adjusting knobs on the wire feeder to set the welding current
and voltage.
3. Press the Ending arc current and Ending arc voltage buttons, and use the
knob on the control panel to set the ending arc current and ending arc voltage.
4. Figure 3-10 shows the control panel where the parameters have been set.
