56 Chapter 3 Welder Operation Description
Ehave Series Full Digital IGBT CO
2
/MAG/MMA Multifunctional Inverter Welder User Manual
3.4.12 Internal Menu
1. In the parameter setup mode, you can press the SAVE and LOAD buttons at
the same time to access the internal menu. In this case, the Job No. indicator flashes. In
the internal menu, you can press the SAVE and LOAD buttons at the same
time to exit from the internal menu. In this case, the Job No. indicator turns off.
2. In the internal menu, you can use the knob to switch among menus at the same level and
adjust parameter values.
3. In the internal menu, you can press the SAVE button to go to the previous menu
item and the LOAD button to go to the next menu item.
4. In the internal menu, you can press the ENTER button to select a parameter.
Before adjusting a parameter, press the ENTER button to select the parameter.
When the parameter is selected, it flashes. Then, use the knob to change the value of the
parameter and press the ENTER button to confirm the change.

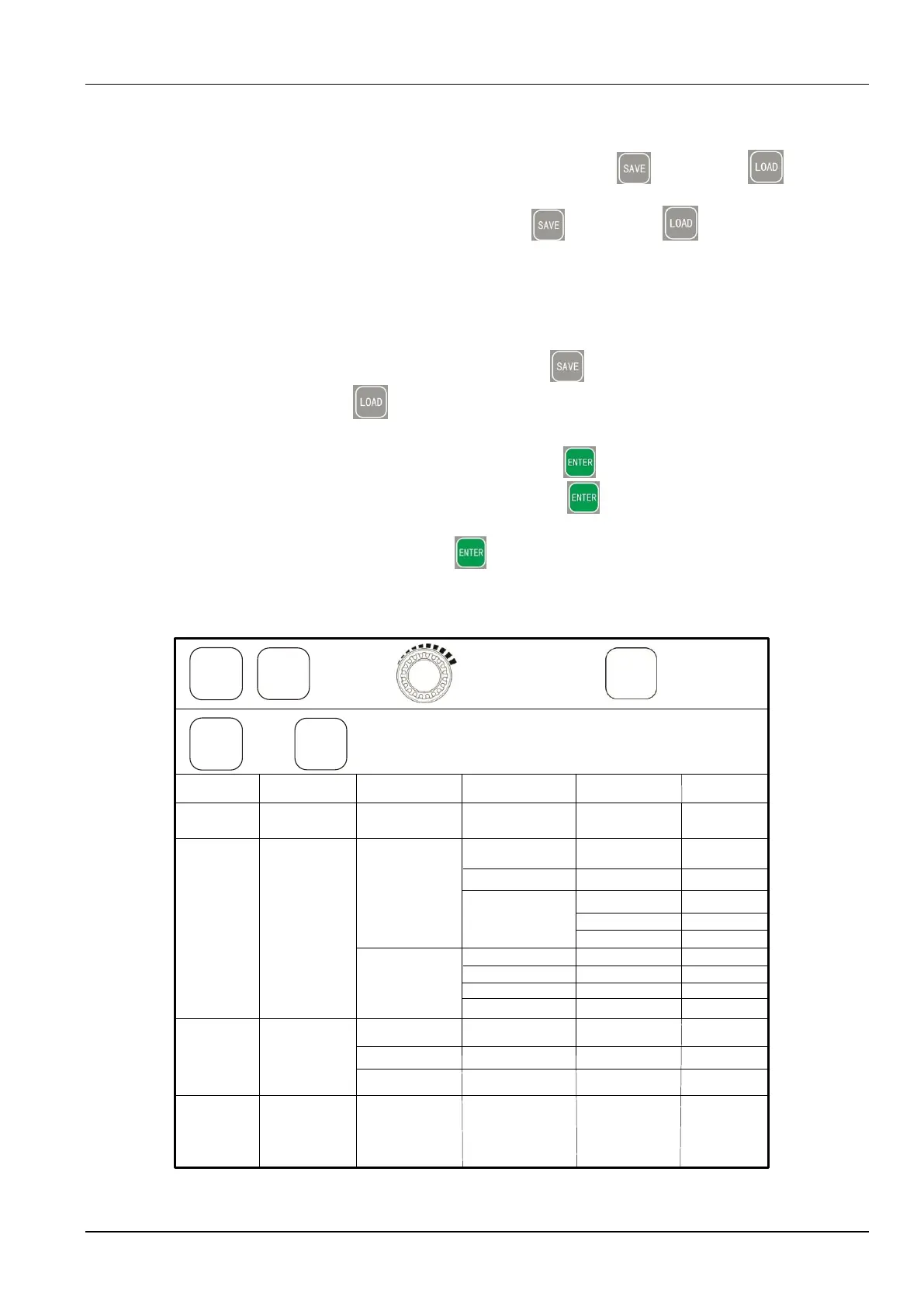

Figure 3-40 describes the internal menu.
F03
+
Select menu
levels.
Adjust parameters.
21PP Starting arc
parameter
Level-2 Menu
211P Wire inching speed
212P Send gas before
welding
213P Hot arc starting 2131 Starting arc voltage
2132 Starting arc current
2133 Hot arc starting time
Level-3 Menu Level-4 Menu
22PP Ending arc
parameter
221P Burn-back voltage
222P Burn-back time
223P Clear ball time
224P Delayed gas
sending time
Confirm
parameter
settings.
31PP Starting arc current
32PP Hot startup current
33PP Thrust current
Access the menu.
F01
Restore factory settings
F02
CO2/MAG setup
Welding electrode
setup
Factory
settings
Code
Description
1.4 meter/minute
0.2 second
20.0 V
160 A
0.0 second
12.0 V
0.00 second
0.25 second
2.0 second
300 A
50 A
30 A
F05
Reverse switch for
arc starting
success of
welding robot
Factory setting:
OFF
SAVE
SAVE
LOAD
LOAD
ENTER
Figure 3-40 Internal menu description
