Static and External Characteristics
The welder in CO
2
/MAG mode uses a constant–voltage welding power source and its
characteristics are shown in Figure 1-7. The welder in electrode mode uses constant-current
welding power source and its characteristics are shown in Figure 1-8.
 Note
Ehave CM500/500H is used as an example.
0
10
20
30
40
50
60
70
80
0 100 200 300 400 500 600

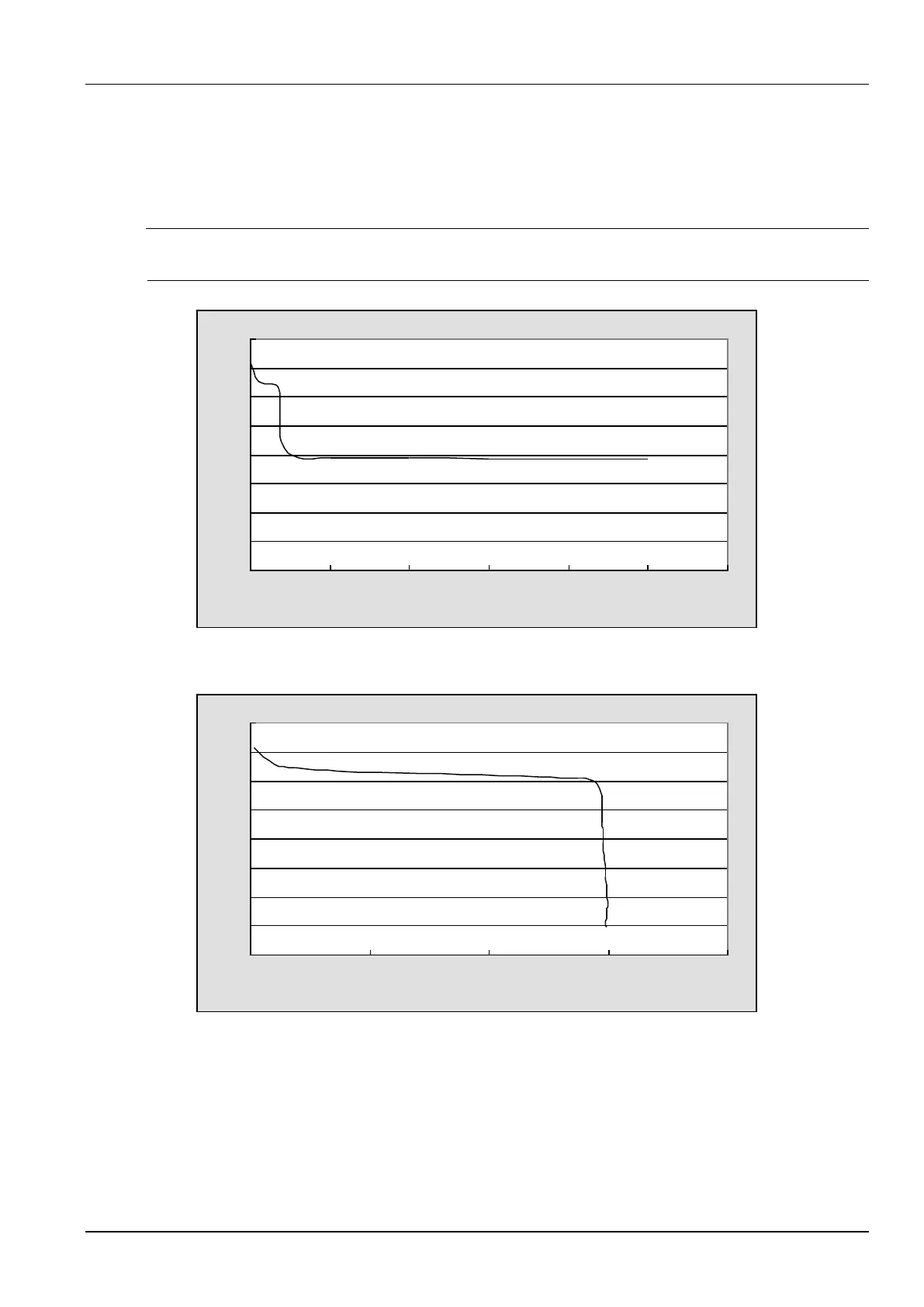

Figure 1-7 Schematic diagram of the constant–voltage welding power source (39 V)
0
10
20
30
40
50
60
70
80
0 50 100 150 200
Figure 1-8 Schematic diagram of the constant-current welding power source (150 A)
