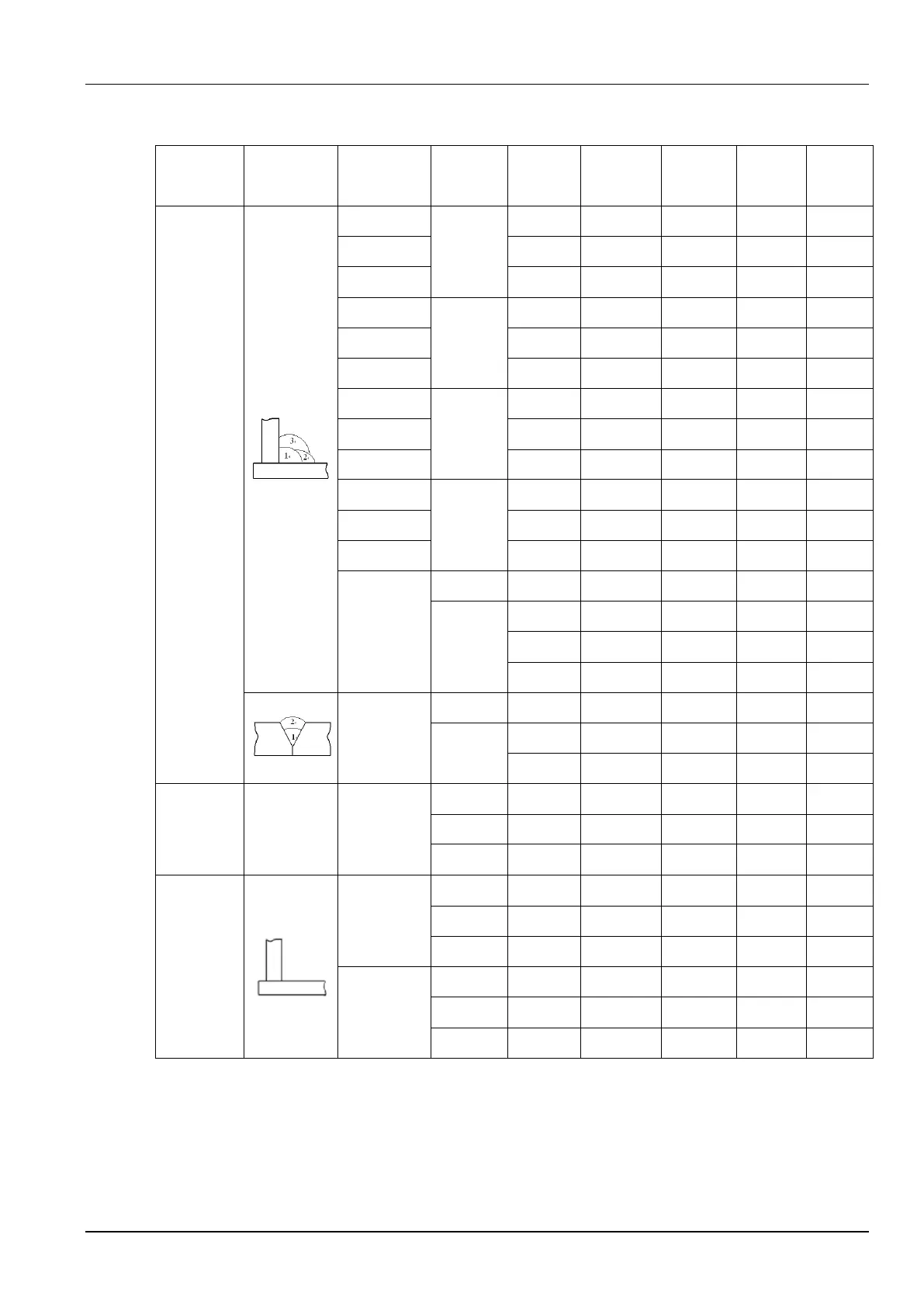

Common parameters for the flux-cored wire
Flux-Cored
Wire Type
Welding
Position
Wire
Diameter
Φ (mm)
Leg Size
(mm)
Number
of Beads
Welding
Current
(A)
Welding
Voltage
(V)
Welding
Speed
(cm/min)
Weaving
Metal
1.2
4
1
240 - 260
26 - 28
48 - 53
No
1.4
1
320 - 340
28 - 30
95 - 105
No
1.6
1
340 - 360
30 - 32
100 - 110
No
1.2
5
1
260 - 280
28 - 30
48 - 53
No
1.4
1
330 - 340
29 - 31
85 - 95
No
1.6
1
360 - 380
32 - 34
85 - 95
No
1.2
6
1
260 - 280
27 - 29
40 - 45
No
1.4
1
320 - 340
30 - 32
75 - 85
No
1.6
1
370 - 390
33 - 35
75 - 85
No
1.2
7
1
270 - 290
29 - 31
38 - 43
No
1.4
1
340 - 360
31 - 33
48 - 53
No
1.6
1
370 - 390
33 - 35
60 - 70
No
1.4
9
1
260 - 280
27 - 29
22 - 26
Yes
12
1
320 - 340
30 - 32
38 - 42
No
2
320 - 340
30 - 32
40 - 44
No
3
320 - 340
29 - 31
48 - 52
No
1.2
9
1
260 - 280
27 - 29
23 - 27
No
12
1
290 - 310
30 - 32
33 - 37
No
2
290 - 310
30 - 32
27 - 31
Yes
Titania
Vertical angle
welding
1.2
4
-
170 - 190
21 - 23
48 - 52
-
6
-
190 - 210
22 - 24
48 - 52
-
8
-
210 - 230
22 - 24
43 - 47
-
Titania
1.2
4
-
210 - 230
26 - 28
68 - 72
-
6
-
260 - 280
28 - 30
48 - 52
-
8
-
290 - 310
29 - 31
33 - 37
-
1.4
4
-
250 - 270
27 - 29
68 - 72
-
6
-
310 - 330
30 - 32
48 - 52
-
8
-
340 - 360
32 - 34
33 - 37
-
