Image Vault PRO COMMAND - 3.6 16 Camera;480 FPS Model: Video & Audio Capture, Monitor Output

12 Image Vault
®
PRO Command
3.616Camera/480FPSModel:Video&AudioCapture,Moni-
tor Output

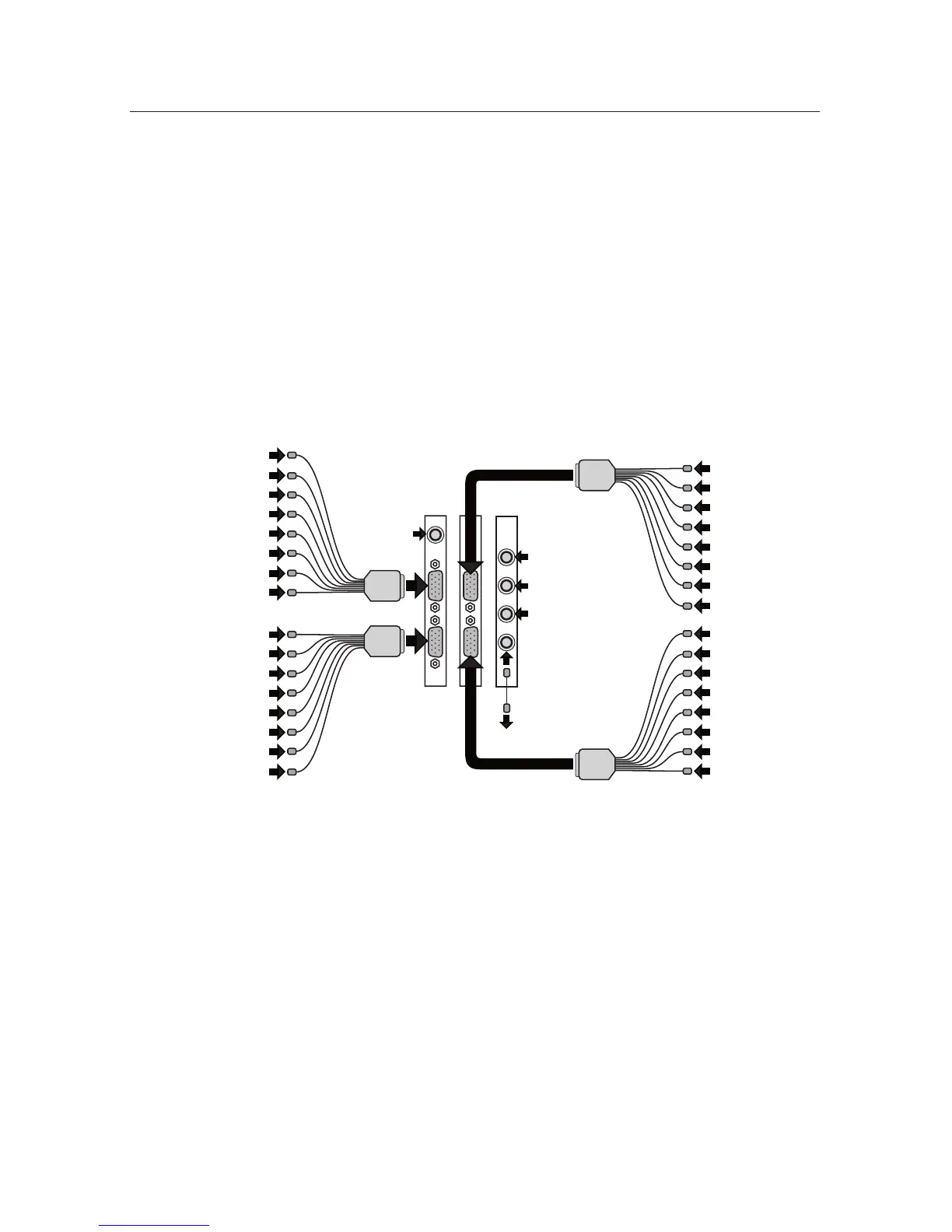

Video In: Connect up to 16 NTSC video cameras to the BNC connectors on the
video input breakout cables. The camera input breakout cables are connected to
the DB15 ports to the left. The top-left connector inputs are for cameras 1 to 8.
The bottom-left connector inputs are for cameras 9 to 16.
Audio In: Connect up to 16 line level audio microphones to the RCA connectors
on the microphone breakout cables. Connect these breakout cables to the DB15
ports to the right. The bottom-right connector inputs are for Mic 1 to Mic 8. The
top-right connector inputs are for Mic 9 to Mic 16. Each microphone input is as-
sociated with its corresponding camera input.
Video Out: One Public View Monitor (PVM) output is provided. The bottom RCA
output will provide one cycling output that will cycle through all inputs.
