 4 and 8 RU frames display fans in fan module groups, indicating fan status.
Fan Status Hardware LEDs on the Frame
4 and 8 RU frames have Hardware LEDs for fan status on the front of the frame.
For example, in case of the 4 RU frame below, there are 4 LEDs on each fan module, and each LED points
to the specific fan that it providing status for. There are 8 fan LEDs on a 4 RU Platinum VX.

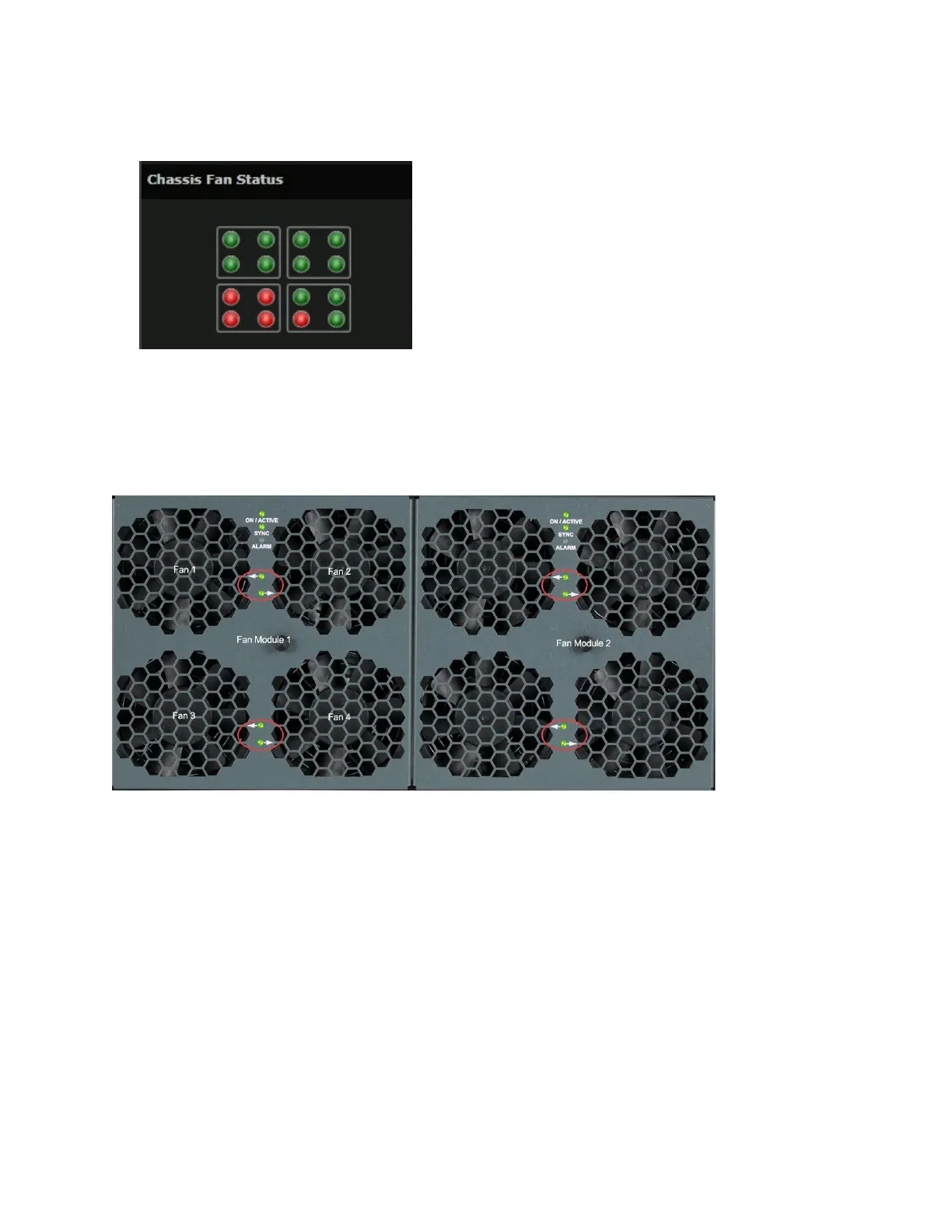

Figure 25: Fan Status LEDs on 4 RU Platinum VX
