There are 16 fan LEDs on an 8RU Platinum VX.

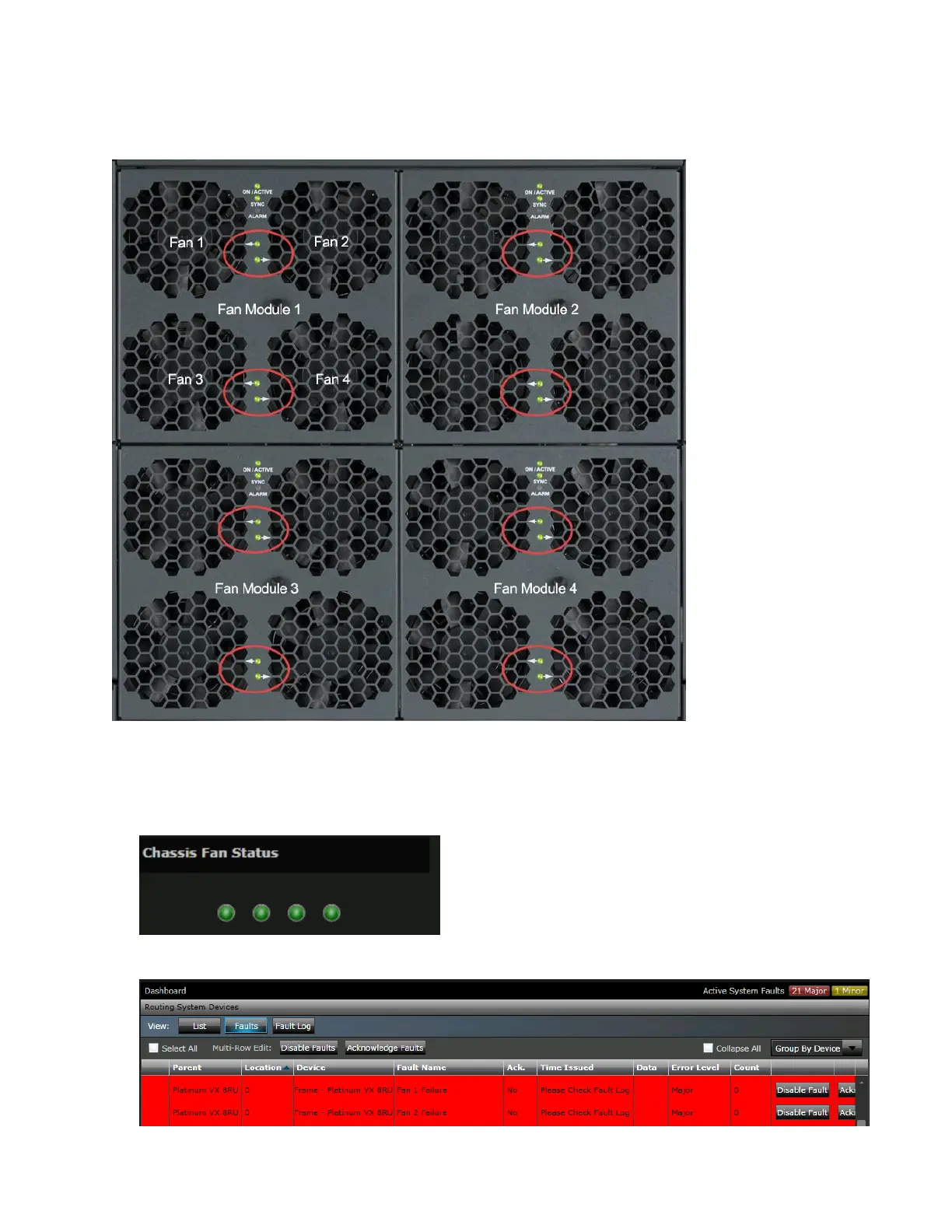

Figure 26: Fan Status LEDs on 4 RU Platinum VX
For 1 and 2 RU frames that have no fan specific hardware LEDs (like the 4 and 8 RU frames), you can:
See Fan Status on the main navigation dashboard
Look for Fan Failures in the Faults
