IMS ROBOTICS MICRO S - Page 36

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
36 of 113

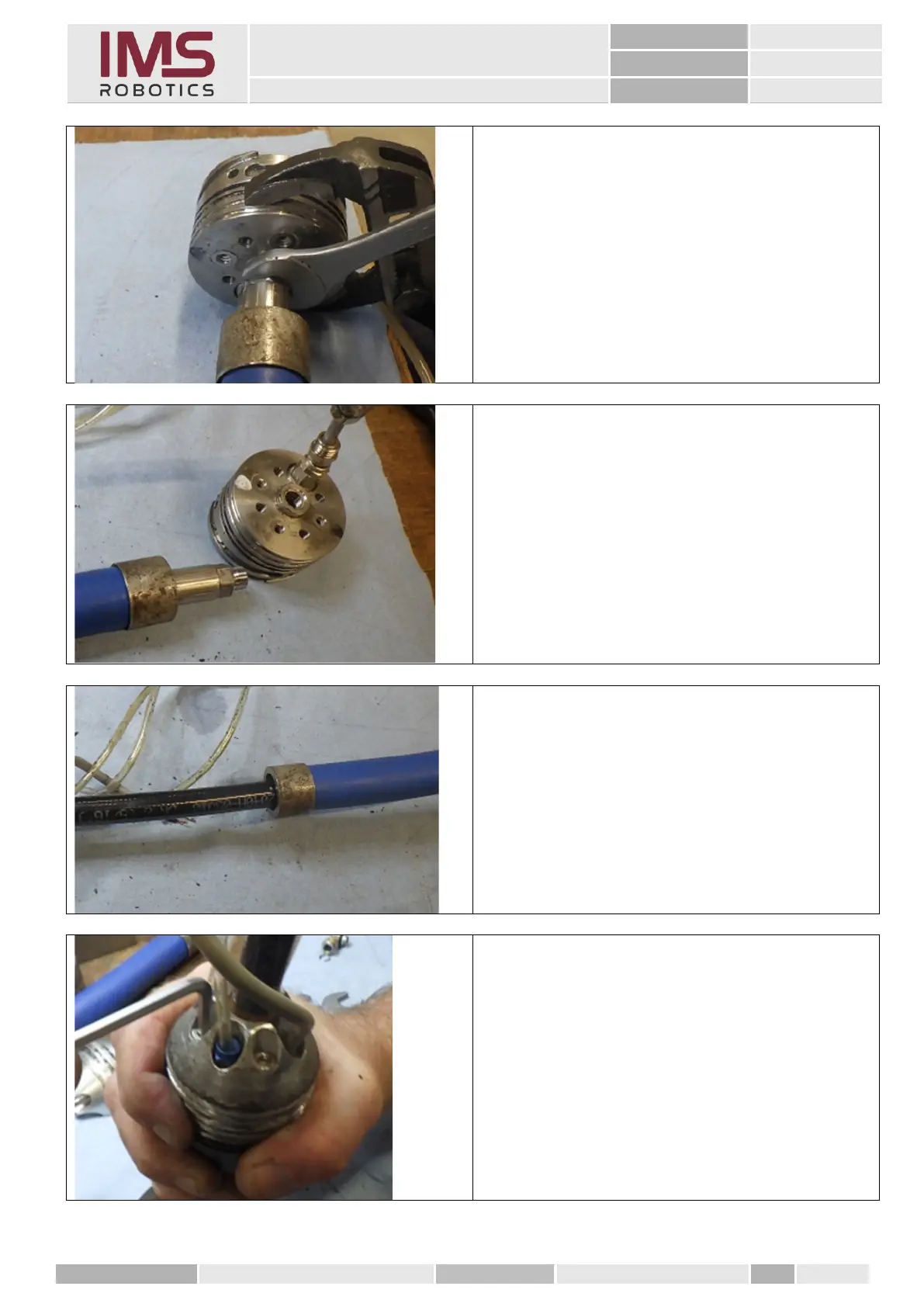

14. Now unscrew the distributor from the rear of
the cutting air hose
Dismantling the rear distributor is only necessary if the
axial movement mechanism has to be also dismantled.
15. Remove the blue sliding hose from the cutting
air hose
16. Remove the four M5x20 cylinder screws
