IMS ROBOTICS MICRO S - Page 54

MICRO S automatic Cutter motor
Number:
RH-11.014 A
Scope:
IMS Robotics
Document Management
Date:
08 July 2022
Author:
00145
Checked:
Page:
54 of 113

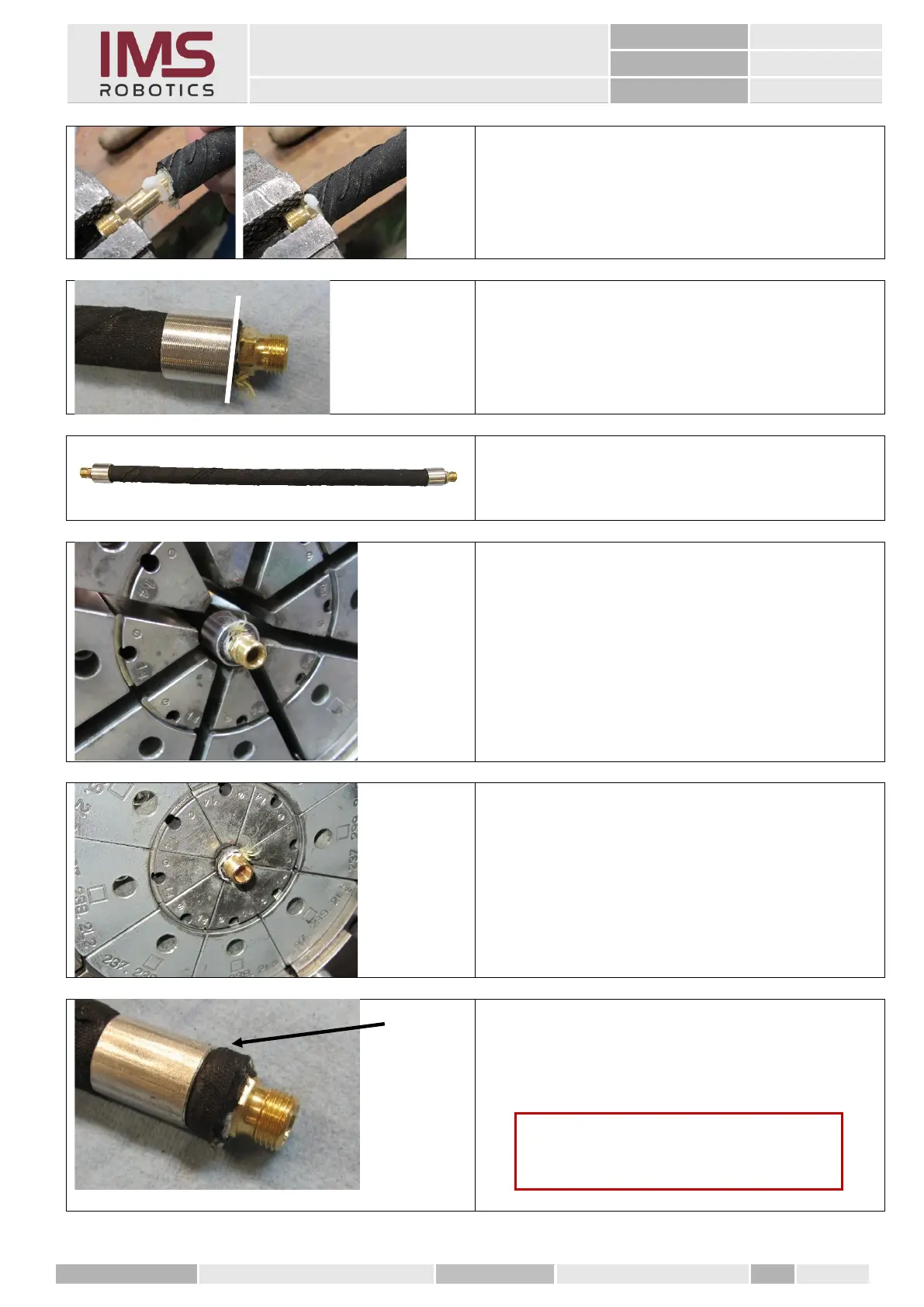

3. Now put the axial hose on the threaded
nozzle and push it up to the spanner flat.
4. Finally, push the press sleeve flush to the
end of the axial hose.
5. Repeat all steps for the second side of
the axial hose.
1. Insert the axial hose into the press from
behind.
2. Grouting in three steps. Turn the axial
hose approx. 15° further after each step.
Pressing dimension 14 mm / 14 mm
pressing jaws
3. The axial hose pushed over the spanner
flats during pressing must be cut off.
Caution
Pressure on the hose clamp during pressing
may reduce this.
