MICRO S automatic Cutter motor

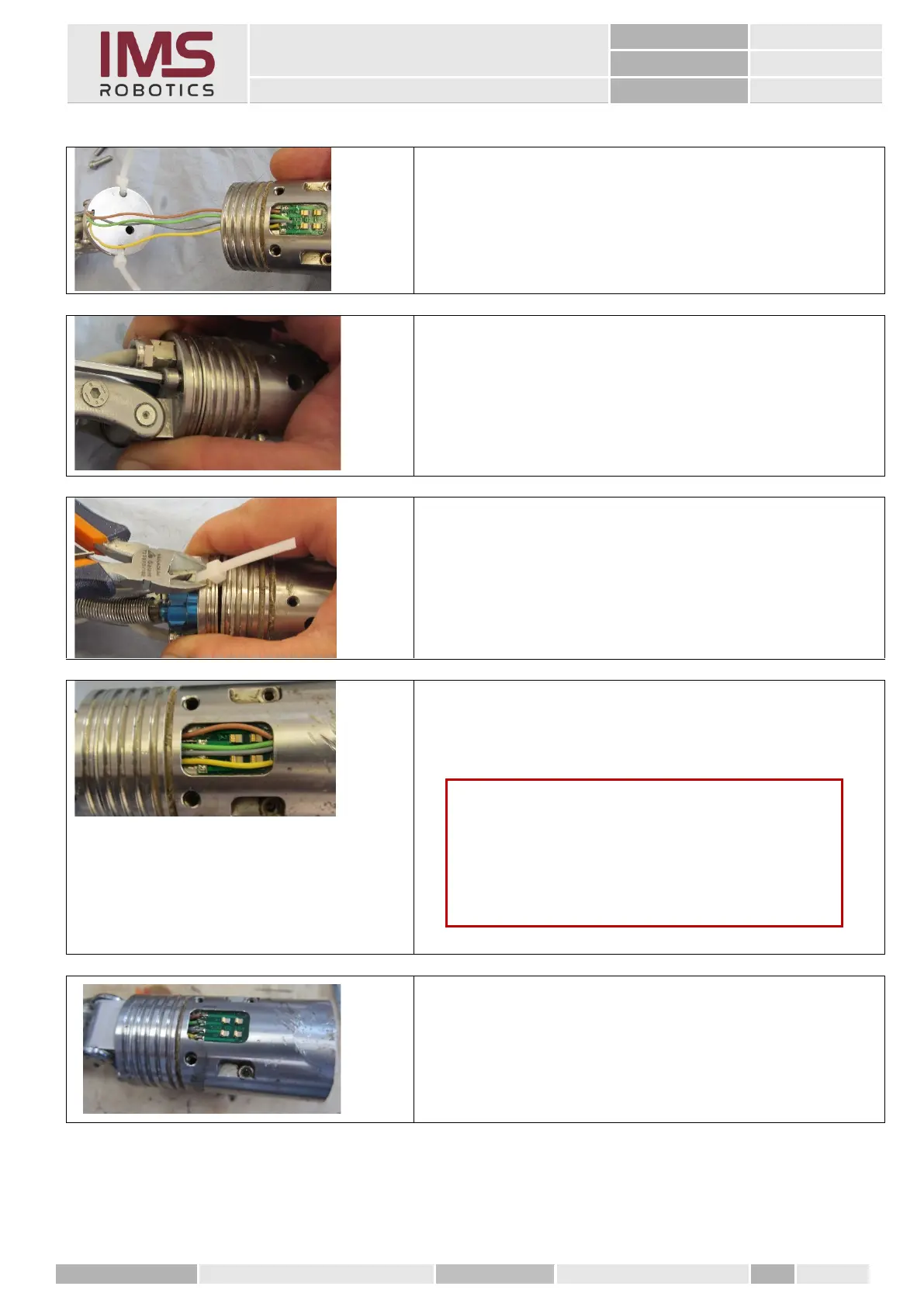

15. Now insert the wires in the proper sequence into the
holes provided in the air motor housing.
16. Hold the air motor housing and cap together with one
hand, cut and remove a cable tie and fix the three parts.
M4x16 cylinder screws are used
17. Then carry out the same steps on the second side.
Now tighten both the screws.
18. Shorten the wires for the spring contact PCB until they fit
into the space of the PCB.
For soldering the wires to the spring contact PCB, see
instructions
"Replacing the spring contact PCB camera"
Caution
Before mounting the lifting air bag, check the entire
assembly to see if all the seals are nitrogen tight.
See section
"Checking the nitrogen tightness"
