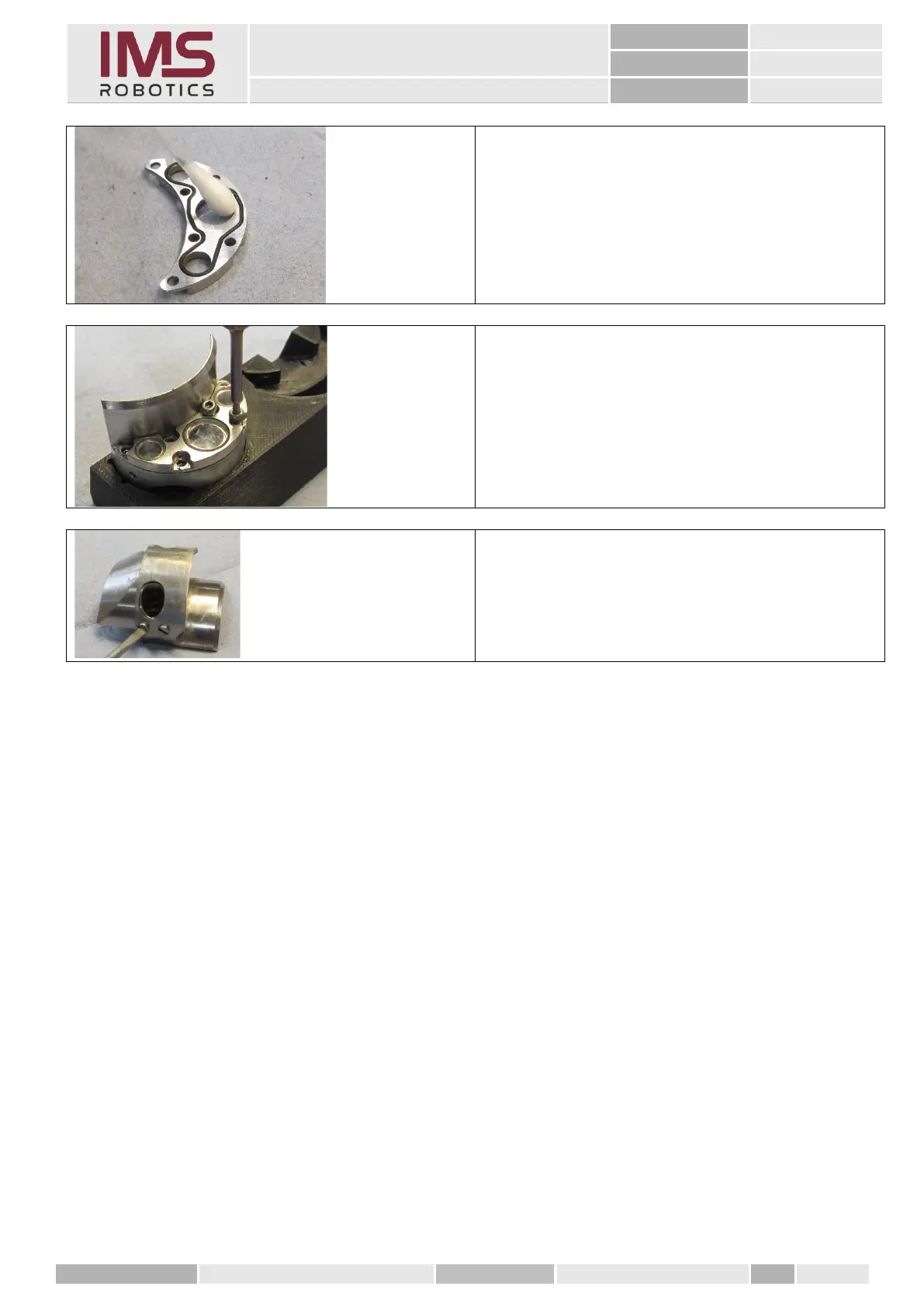

11. Before reassembling the camera, be sure
to clean the inside of the sapphire glass
panes.
No moisture, grease or other impurities
should remain on the glass.
12. Screw in the M2 x 4 mm hexagon socket
cylinder screws with a very small amount
of Loctite "blue".
13. Screw the mudguard to the camera body
with four M2 x 4 mm slotted screws.
Secure screws with very little Loctite
"blue".
