1.16.2.4 Wiring Instructions
1 Remove the screw (8).

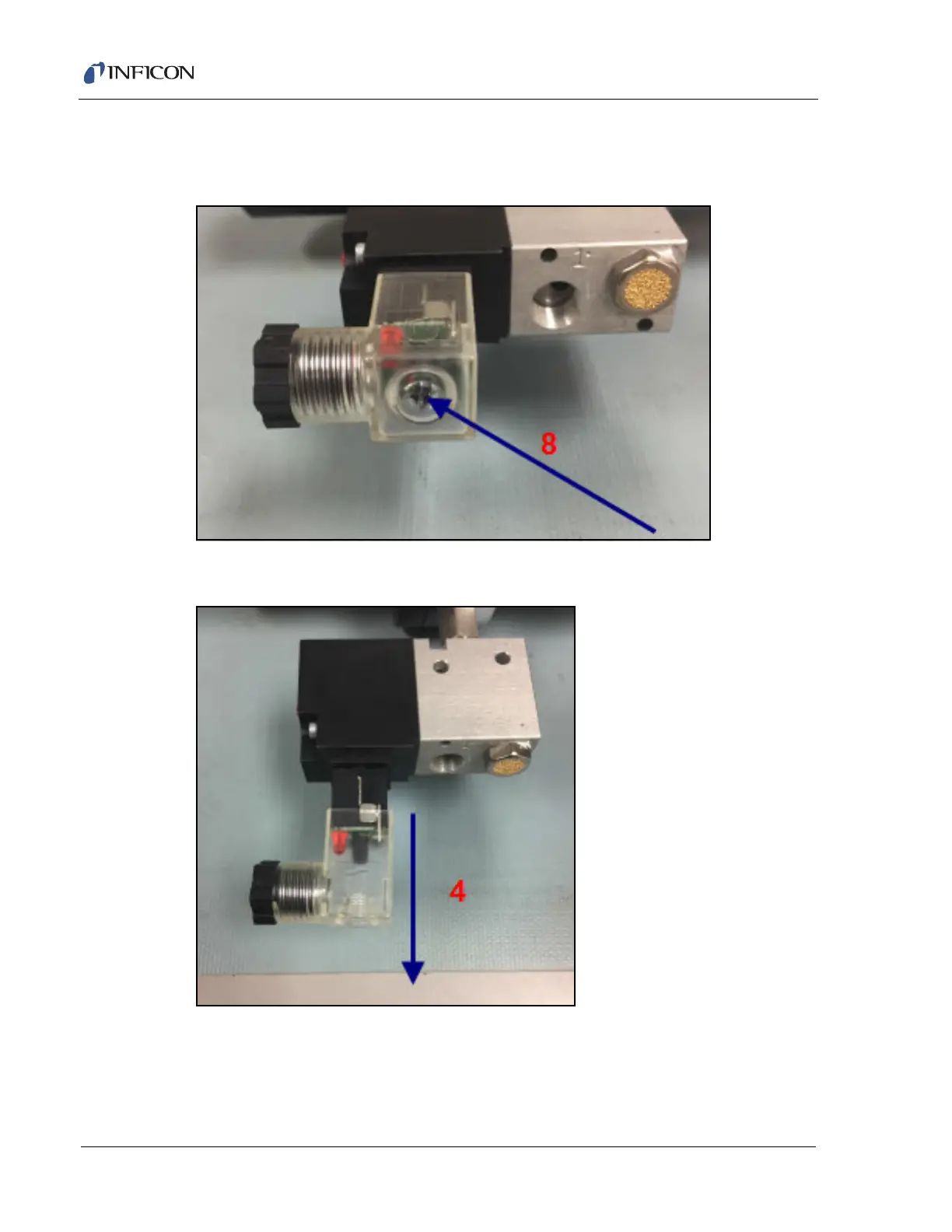

Figure 1-9 Removing connector assembly
2 Remove the clear plastic connector elbow (4).
Figure 1-10 Removing connector elbow
3 Remove the connector (3) from the solenoid assembly, be careful to not
remove the connector gasket (2).
