Transpector XPR 3+ Operating Manual

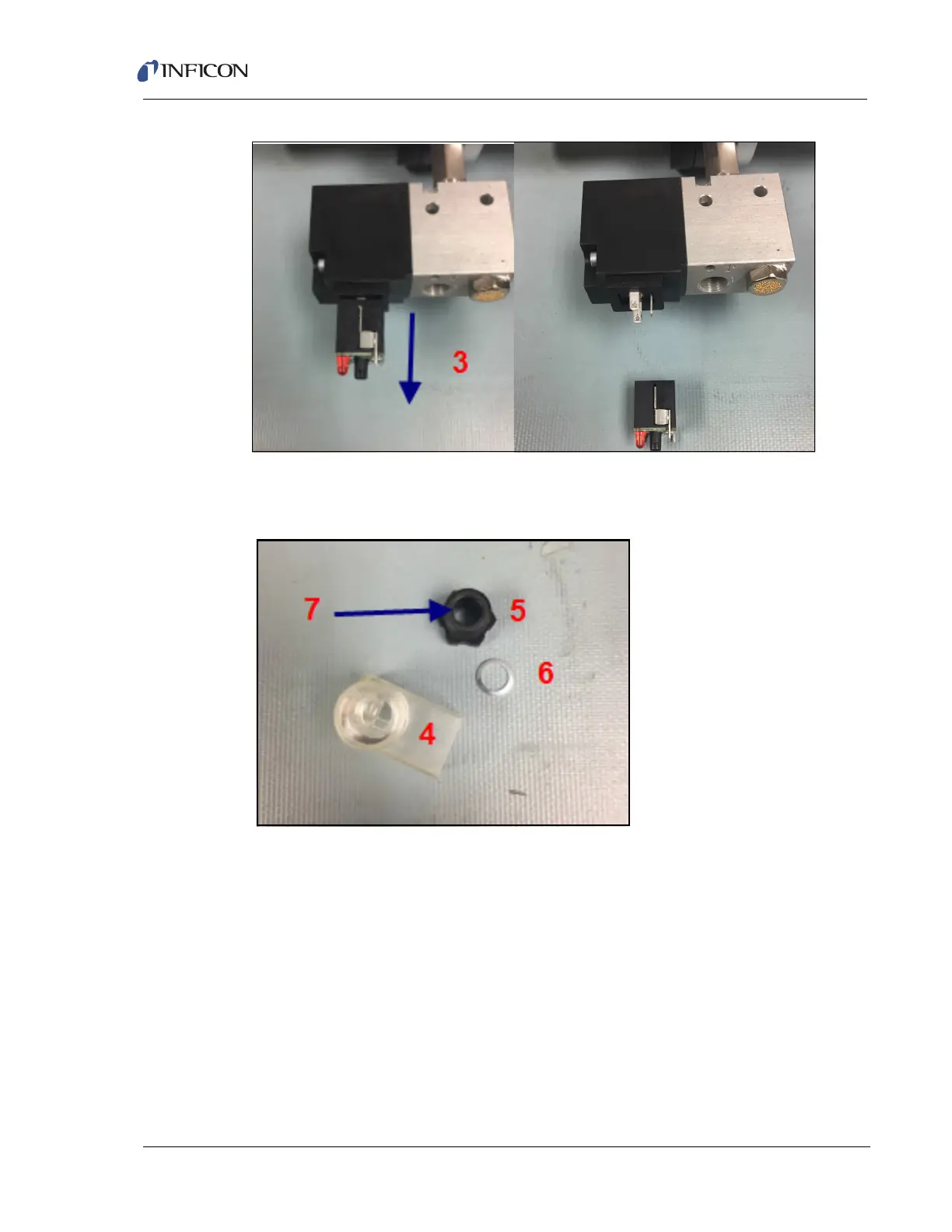

Figure 1-11 Removing connector terminal
4 Remove the black plastic nut (5) from the connector elbow (4), the washer (6)
and the compression ring (7) can stay in place.
Figure 1-12 Connect elbow assembly
5 Take the MMSP Valve/Relay Interface Cable (IPN 600-1450-P2) and run the
cables through the nut (5), washer (6), compression ring (7) and the connector
elbow (4).
