Inovance MD500 Series - Mounting Orientation and Clearance

2. Mechanical Installation
- 19 -
2

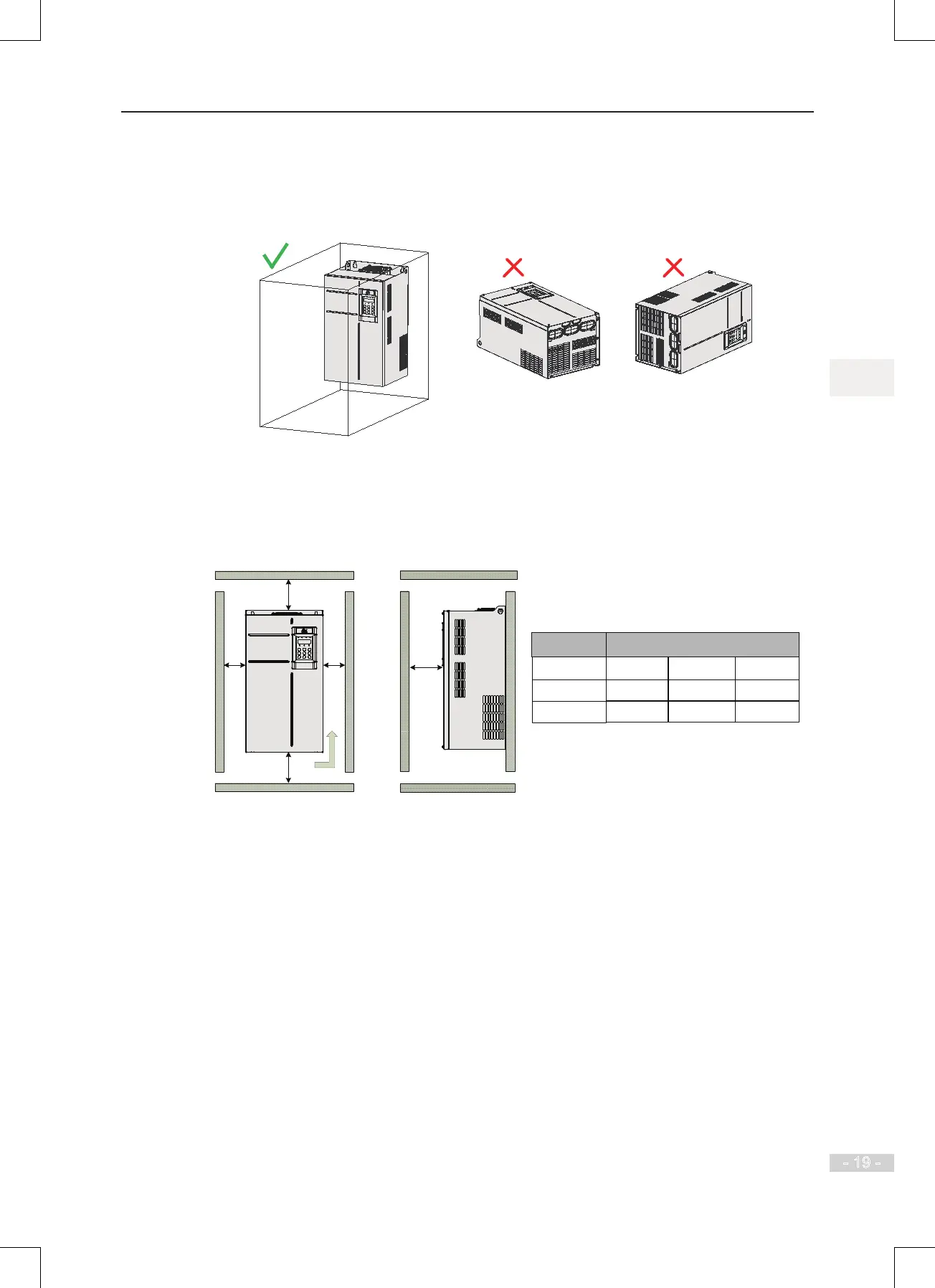

2.2 Mounting Orientation and Clearance
■
Mounting Orientation
Always mount the AC drive in an upright position.
■
Mounting Clearance
The mechanical clearance varies with the power ratings of the AC drive.
Figure 2-1 Correct mounting clearance
B
B
A A
C
Upright
(
Side View)
(Front view)
18.5 to 22 kW
Power Rating
30 to 37 kW
45 to 160 kW
A ≥ 10 mm
A ≥ 50 mm
A ≥ 50 mm
B ≥ 200 mm
B ≥ 200 mm
B ≥ 300 mm
C ≥ 40 mm
C ≥ 40 mm
C ≥ 40 mm
Clearance Requirements
