5. Quick Setup
- 68 -
5
Chapter 5 Quick Setup
5.1 Get Familiar With Operating Panel
Before any commissioning work, you must go back to chapter 4 to get acquainted with the operating
panel rst. The operating panel allows you to monitor system operation, modify parameters and start or
stop the AC drive.

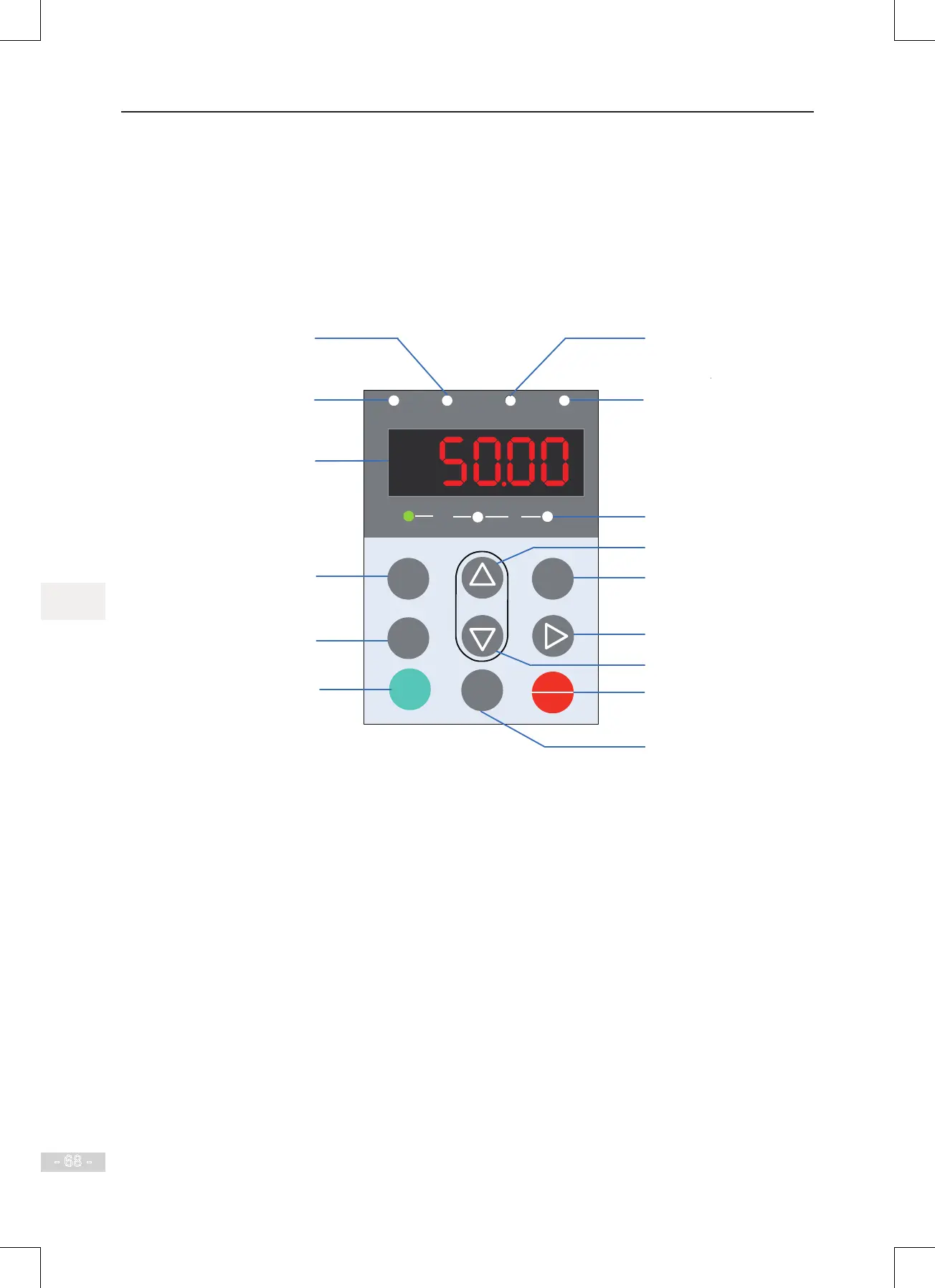

MF.K
RUN
STOP
RES
QUICK
PRG ENTER
RUN
LOCAL/ REMOT FWD/ REV TUNE/TC
RPM
%
A VHz
Other status indicator
Running direction indicator
Parameter unit indicator
Increment key
Confirm key
Shift key
Decrement key
Stop/Reset key
Multi-function selection key
Command source indicator
Running status indicator
LED display for parameters
Program key
Menu mode selection key
Run key
