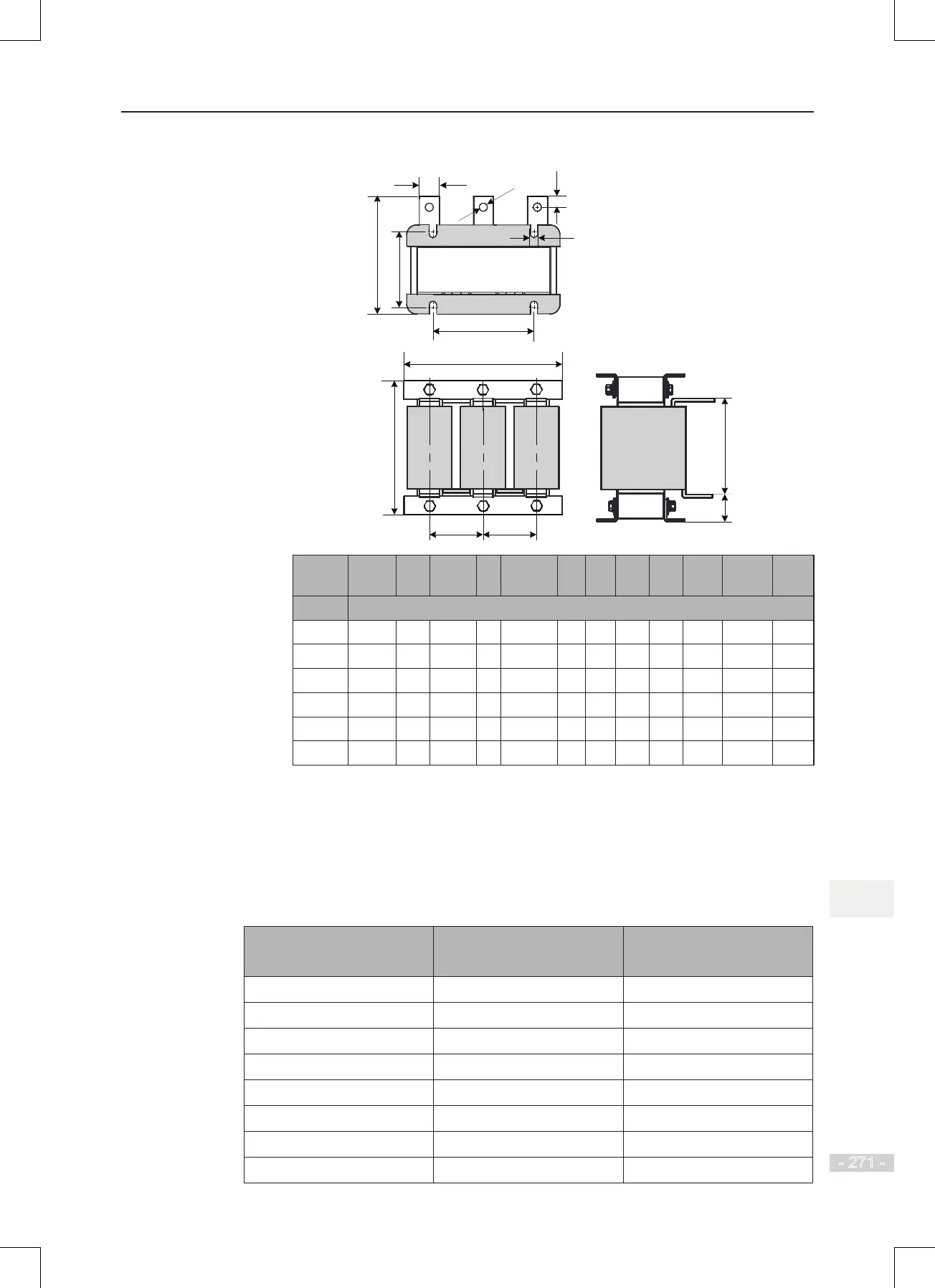

Dimensions of AC reactor of 150 to 660 A are shown as below:
R S T
X Y Z
A
B
C
D
E
G
H
I
J
J
K
L
F
Rated
Current
A B C D E F G H I J K L
A mm
150 120±1 160 92±2 25 Φ11 x 6 13 8.5 195 210 64±5 135±5 34±5
200 120±1 170 102±2 25 Φ11 x 6 13 8.5 195 220 64±5 135±5 33±5
250 182±1 170 96±2 25 Φ11 x 6 13 11 250 230 81±5 135±5 43±5
330 182±1 190 106±2 30 Φ12 x 6 13 11 250 235 81±5 145±5 40±5
490 214±1 205 110±3 40 Φ13 x 6 20 11 300 280 95±5 178±5 51±5
660 214±1 230 130±3 40 Φ13 x 6 20 11 300 280 95±5 178±5 51±5
■
AC Output Reactor Installation
Whether to install an AC output reactor on power output side is dependent on actual
situation. Cable connecting AC drive and motor should not be too long; capacitance
enlarges when an over-long cable is used and thus high-harmonics current may be easily
generated.
When an output reactor used, cable length can be increased to the value in below table.
AC Drive Power
(kW)
Rated Voltage
(V)
Cable Length Limit
(m)
4 200 to 500 50
5.5 200 to 500 70
7.5 200 to 500 100
11 200 to 500 110
15 200 to 500 125
18.5 200 to 500 135
22 200 to 500 150
≥ 30 280 to 690 150
