9. Technical Data
- 274 -
9

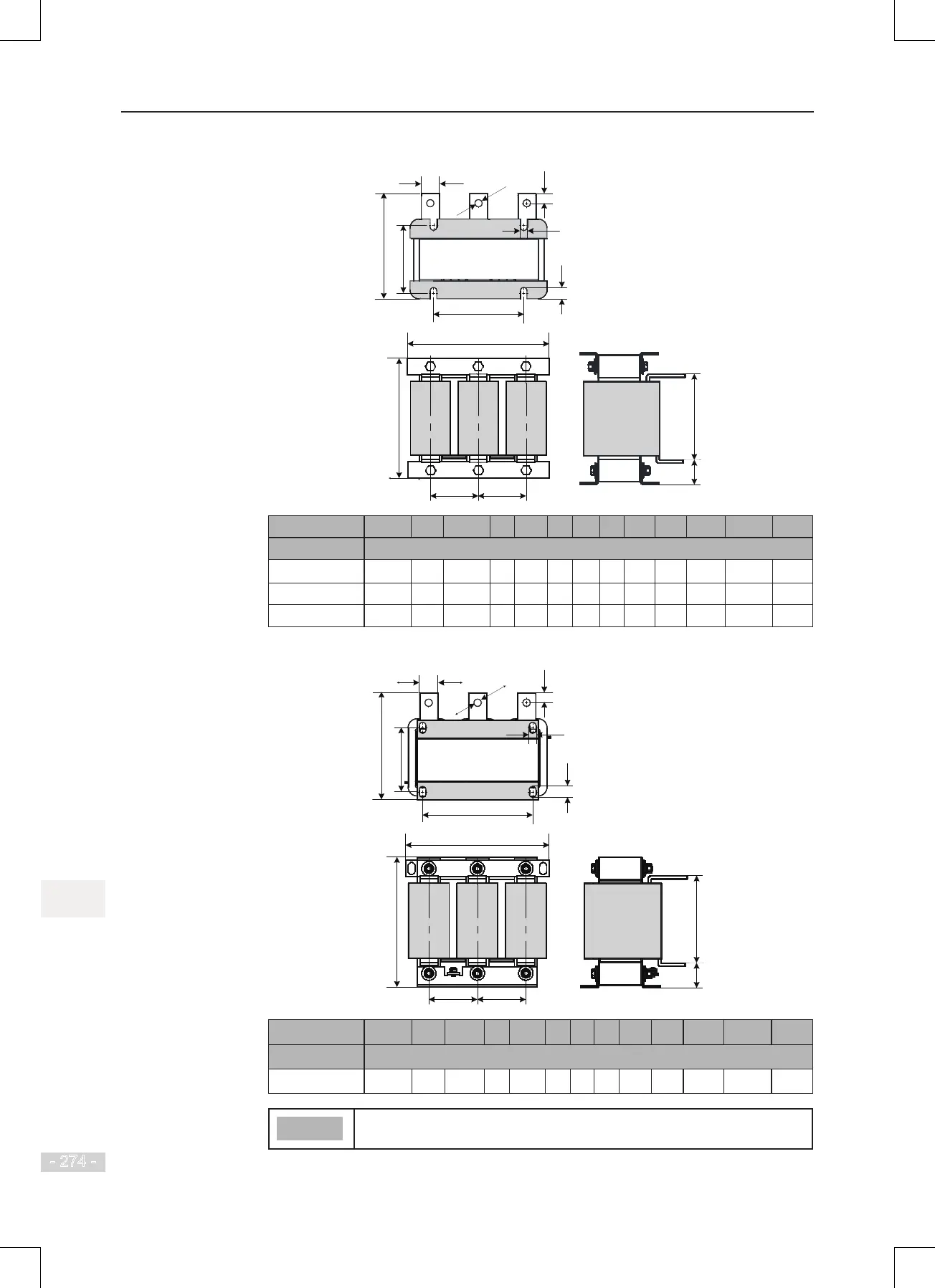

Dimensions of AC reactor of 150 to 250 A are shown as below:
R S T
X Y Z
A
B
C
D
E
G
H
I
J
KK
L
M
F
Rated Current A B C D E F G H I J K L M
(A) (mm)
150 120±1 155 92±2 20 Φ11 10 8.5 20 195 210 64±5 135±5 36±5
200 120±1 165 102±2 20 Φ11 10 8.5 20 195 210 64±5 145±5 30±5
250 120±1 165 102±2 20 Φ11 10 8.5 20 195 210 64±5 143±5 30±5
Dimensions of AC reactor of 330 A are shown as below:
R S T
X Y Z
A
B
C
D
E
G
H
I
J
K
K
L
M
F
Rated Current A B C D E F G H I J K L M
(A) (mm)
330 182±1 175 91±2 30 Φ12 15 11 18 255 240 81±5 155±5 43±5
Note
The dimensions of the AC reactors are for reference only.
