Speaker Layouts and Selectable Listening Modes

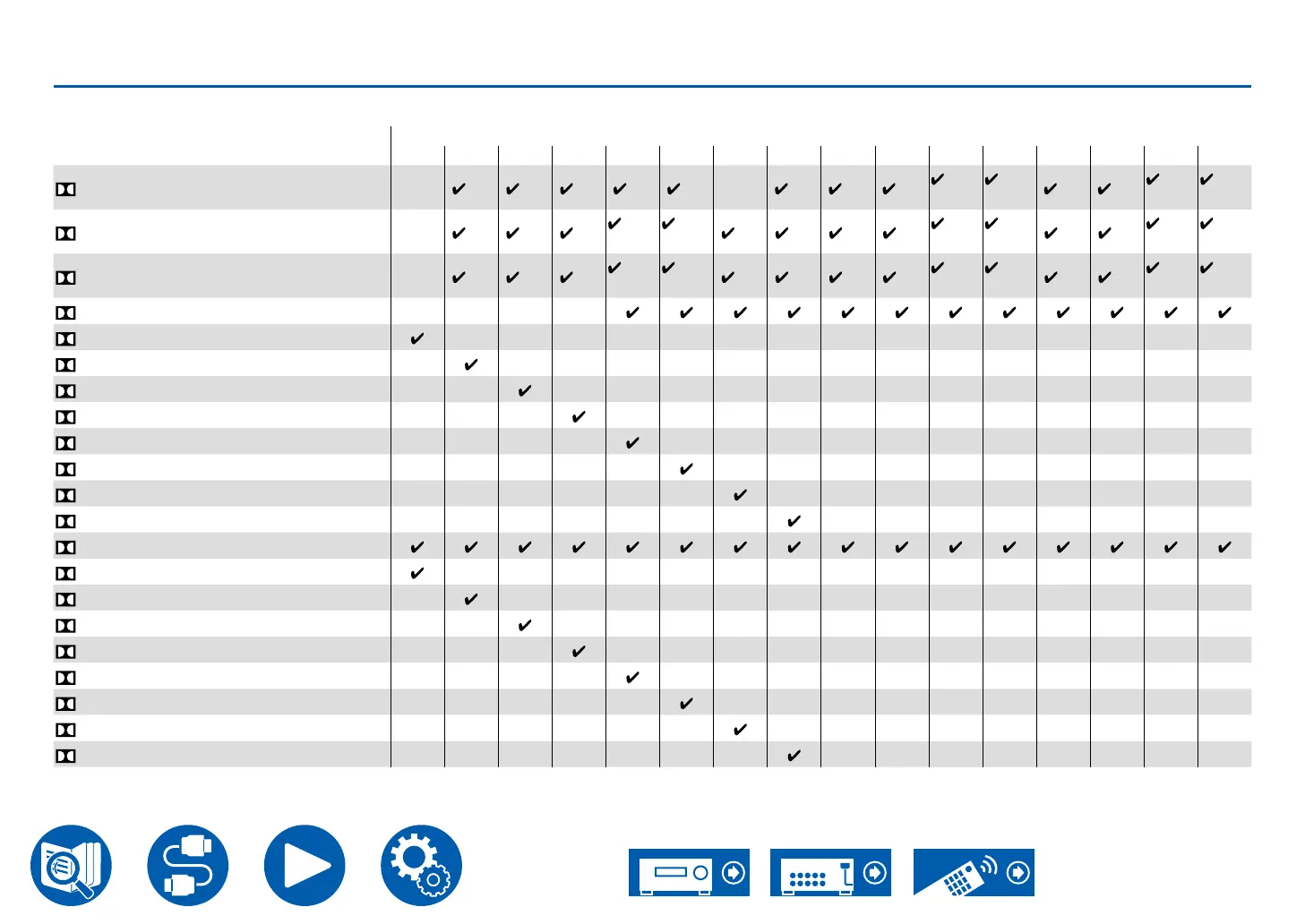

See the following table for selectable listening modes for each speaker layout.
Speaker layout (ch)
Listening mode 2.1 3.1 4.1 5.1 6.1 7.1 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4 6.1.4 7.1.4
DD (Dolby Audio - DD)
(*1) (*1) (*1) (*2) (*2) (*3) (*3) (*3)
(*2)
(*3)
(*2)
(*3)
(*3) (*3)
(*2)
(*3)
(*2)
(*3)
DD+ (Dolby Audio - DD+)
(*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1)
(*1)
(*2)
(*1)
(*2)
DTHD (Dolby Audio - TrueHD)
(*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1)
(*1)
(*2)
(*1)
(*2)
Atmos
Atmos 2.0/2.1
Atmos 3.0/3.1
Atmos 4.0/4.1
Atmos 5.0/5.1
Atmos 6.0/6.1
Atmos 7.0/7.1
Atmos 2.0.2/2.1.2
Atmos 3.0.2/3.1.2
DSur (Dolby Audio - Surr)
DSur 2.0/2.1 (Dolby Audio - Surr)
DSur 3.0/3.1 (Dolby Audio - Surr)
DSur 4.0/4.1 (Dolby Audio - Surr)
DSur 5.0/5.1 (Dolby Audio - Surr)
DSur 6.0/6.1 (Dolby Audio - Surr)
DSur 7.0/7.1 (Dolby Audio - Surr)
DSur 2.0.2/2.1.2 (Dolby Audio - Surr)
DSur 3.0.2/3.1.2 (Dolby Audio - Surr)

Integra DRX-8.4 Specifications

General

Channels	11.2
Amplification Type	Class AB
THD+N	0.08%
HDMI Inputs	7
HDMI 2.1	Yes
HDR Support	HDR10, Dolby Vision, HLG
eARC	Yes
Phono Input	Yes
Zone 2/3 Powered Outputs	Yes
USB Input	1 (Front)
Ethernet	Yes
Wi-Fi	Yes
Bluetooth	Yes
Standby Power Consumption	0.15 W
Power Output (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)	140W
Power Output (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)	250 W/Ch
Input Sensitivity and Impedance	200 mV/47 kOhms (Line)
Signal-to-Noise Ratio	106dB
Speaker Impedance	4 Ohms – 16 Ohms
HDMI Outputs	3
Digital Audio Inputs	Optical: 2, Coaxial: 1
Pre-Outs	11.2 Ch
Speaker Terminals	11
Streaming Services	AirPlay 2, Spotify, Tidal, Deezer
Voice Control	Amazon Alexa, Google Assistant
Room Correction	AccuEQ
Supported Audio Formats	Dolby Atmos, DTS:X
Weight	14.5 kg (32 lbs.)
