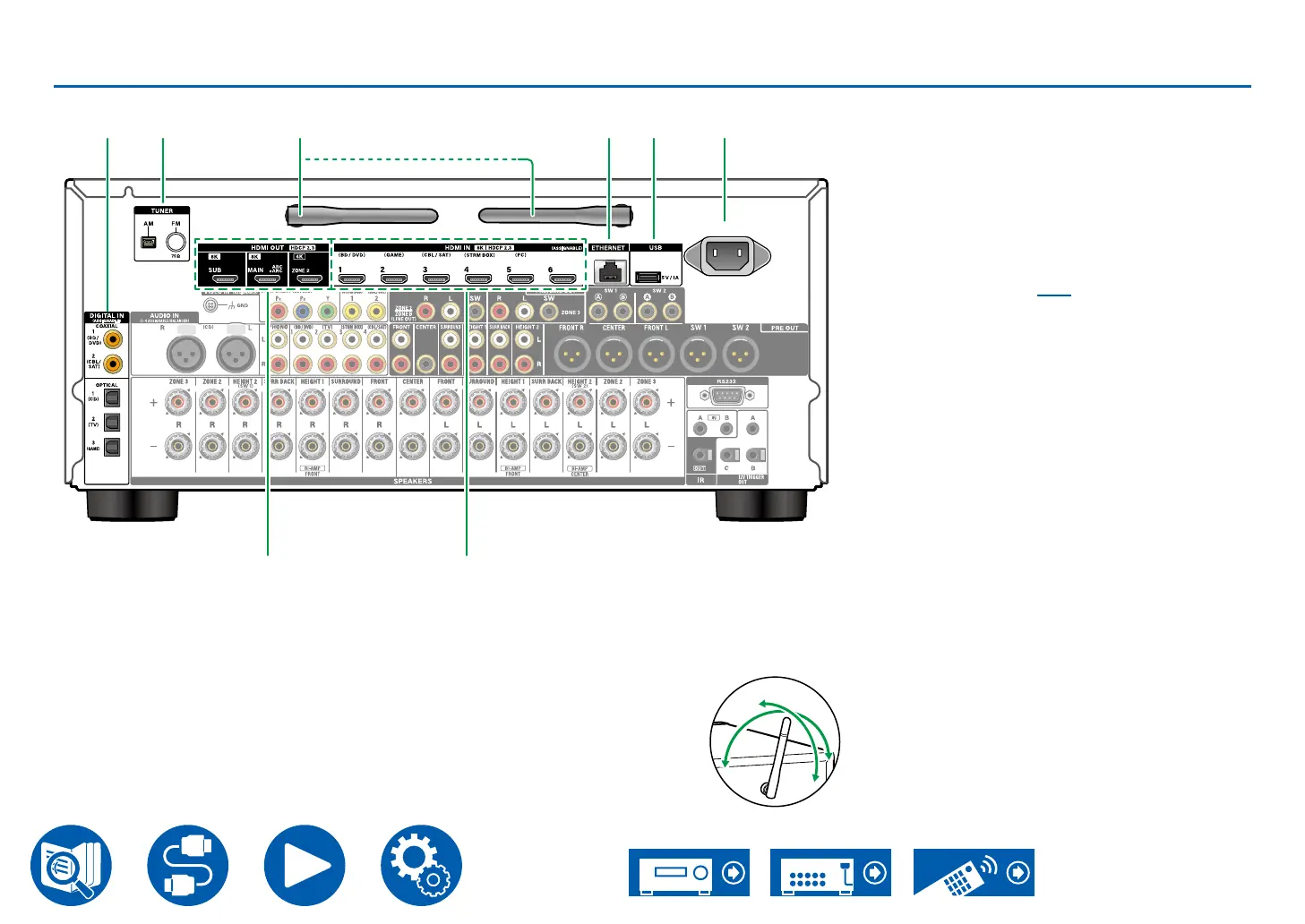

Rear Panel
AC INLET
B C F G HA
ED
A DIGITAL IN OPTICAL/COAXIAL jacks: Input
TV or AV component digital audio signals with a
digital optical cable or digital coaxial cable.
B TUNER AM/FM terminal (North American
and Taiwanese models): Connect the supplied
antennas.
C Wireless antenna: Used for WI-Fi connection
or when using a BLUETOOTH enabled device.
Adjust the angles according to the connection
status.
D HDMI OUT jacks: Transmit video signals and
audio signals with an HDMI cable connected to a
monitor such as a TV or projector.
E HDMI IN jacks: Transmit video signals and audio
signals with an HDMI cable connected to an AV
component.
F ETHERNET port: Connect to the network with
an Ethernet cable.
G USB port: Connect a USB storage device to
play music les ( →p116). You can also supply
power (5 V/1 A) to USB devices with a USB
cable.
H AC INLET: Connect the supplied power cord.
180°
90°
