Integra DRX-8.4 User Manual

Speaker Installation
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
7.1.4ch
5.1ch
33
Speaker Installation
Speaker Installation

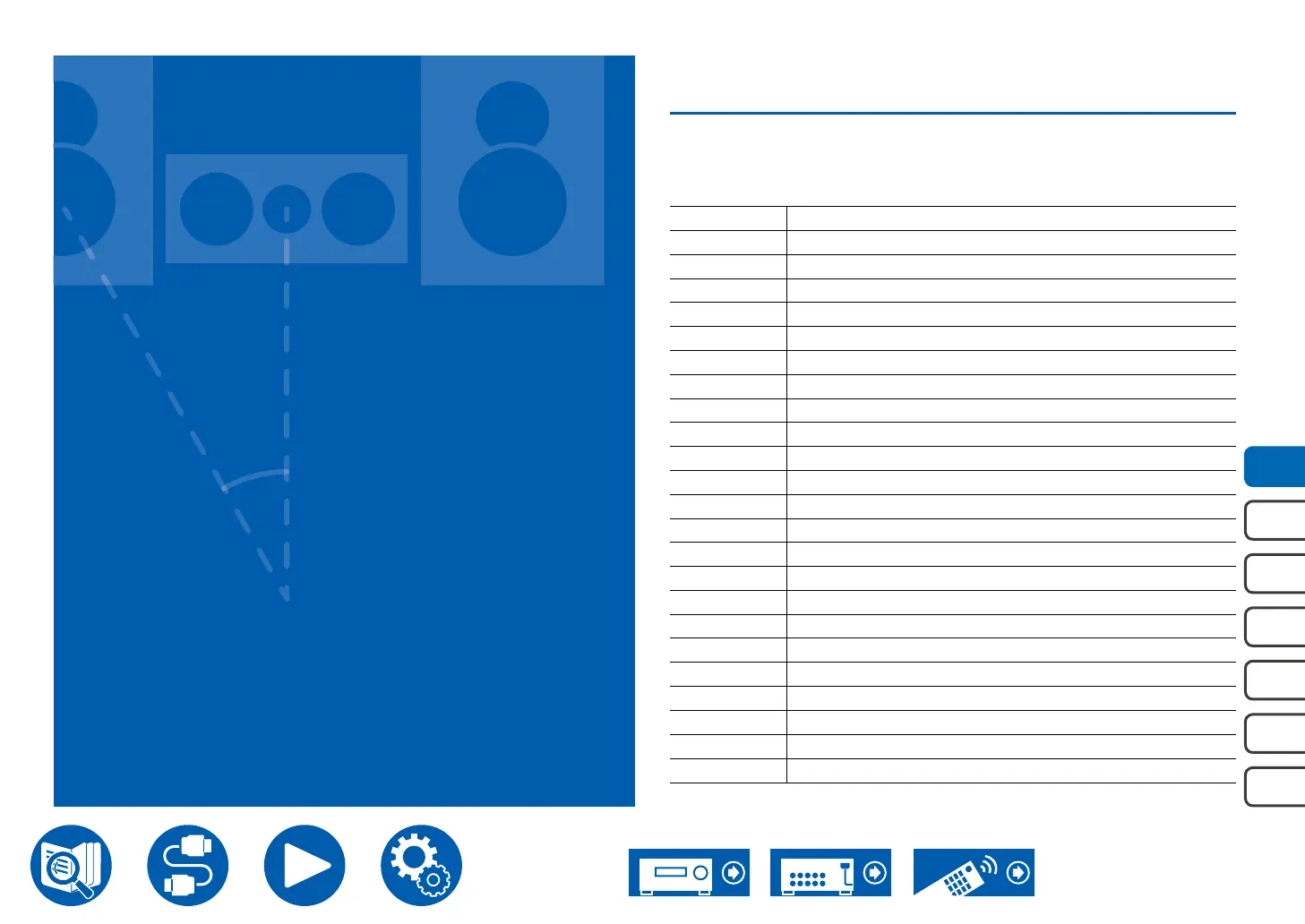

Setting Up the Speakers
How the speakers are set up depends on the size and shape of the room, so
here we introduce just a basic layout example.
The alphabetic symbols used in this chapter represent the following speakers:
FL Front speaker Left
FR Front speaker Right
C Center speaker
SW powered SubWoofer
SL Surround speaker Left
SR Surround speaker Right
SBL Surround Back speaker Left
SBR Surround Back speaker Right
FHL Front High speaker Left
FHR Front High speaker Right
RHL Rear High speaker Left
RHR Rear High speaker Right
TFL Top Front speaker Left
TFR Top Front speaker Right
TML Top Middle speaker Left
TMR Top Middle speaker Right
TRL Top Rear speaker Left
TRR Top Rear speaker Right
DFL Dolby enabled speaker Front Left
DFR Dolby enabled speaker Front Right
DSL Dolby enabled speaker Surround Left
DSR Dolby enabled speaker Surround Right
DSBL Dolby enabled speaker Surround Back Left
DSBR Dolby enabled speaker Surround Back Right
Speaker Installation

Integra DRX-8.4 Specifications

General

Channels	11.2
Amplification Type	Class AB
THD+N	0.08%
HDMI Inputs	7
HDMI 2.1	Yes
HDR Support	HDR10, Dolby Vision, HLG
eARC	Yes
Phono Input	Yes
Zone 2/3 Powered Outputs	Yes
USB Input	1 (Front)
Ethernet	Yes
Wi-Fi	Yes
Bluetooth	Yes
Standby Power Consumption	0.15 W
Power Output (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)	140W
Power Output (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)	250 W/Ch
Input Sensitivity and Impedance	200 mV/47 kOhms (Line)
Signal-to-Noise Ratio	106dB
Speaker Impedance	4 Ohms – 16 Ohms
HDMI Outputs	3
Digital Audio Inputs	Optical: 2, Coaxial: 1
Pre-Outs	11.2 Ch
Speaker Terminals	11
Streaming Services	AirPlay 2, Spotify, Tidal, Deezer
Voice Control	Amazon Alexa, Google Assistant
Room Correction	AccuEQ
Supported Audio Formats	Dolby Atmos, DTS:X
Weight	14.5 kg (32 lbs.)
