Integra DRX-8.4 User Manual

7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
7.1.4ch
5.1ch
34
Speaker Installation

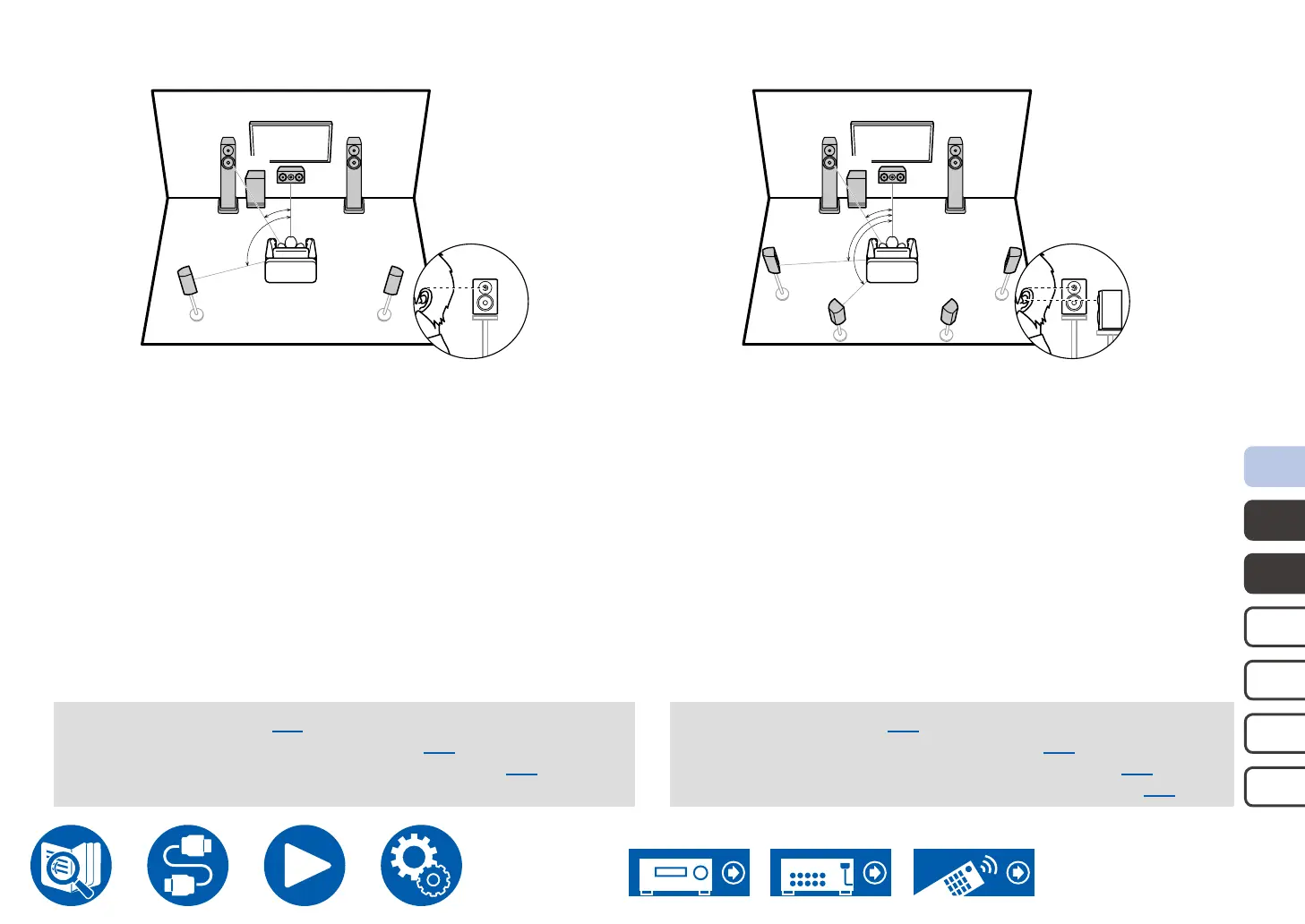

 5.1 Channel System
b
a
FL FR
SL SR
C
SW
a: 22° to 30°
b: 120°
FL, FR Place the left and right front speakers to match ear height.
C The center speaker should be set up facing the listening position at
an angle.
SW Place the powered subwoofer between the center speaker and a
front speaker.
SL, SR Place the left and right surround speakers to be just above ear
height.
 5.1 ch connection ( →p42)
 5.1 ch + ZONE 2/ZONE 3 connection( →p43)
 5.1 ch (Bi-Amping (Front/Center)) connection ( →p44)
 7.1 Channel System
b
c
a
FL FR
C
SW
SL SR
SBL SBR
a: 30° to 55°
b: 65° to 100°
c: 125° to 150°
FL, FR Place the left and right front speakers to match ear height.
C The center speaker should be set up facing the listening position
at an angle.
SW Place the powered subwoofer between the center speaker and a
front speaker.
SL, SR Place the left and right surround speakers to be just above ear
height.
SBL, SBR Place the left and right surround back speakers at ear height.
• If surround back speakers are installed, be sure to install surround
speakers as well.
 7.1 ch connection ( →p45)
 7.1 ch + ZONE 2/ZONE 3 connection ( →p46)
 7.1 ch (Bi-Amping (Front/Center)) connection ( →p47)
 7.1 ch (Bi-Amping (Front)) + ZONE 2 connection ( →p48)

Integra DRX-8.4 Specifications

General

Channels	11.2
Amplification Type	Class AB
THD+N	0.08%
HDMI Inputs	7
HDMI 2.1	Yes
HDR Support	HDR10, Dolby Vision, HLG
eARC	Yes
Phono Input	Yes
Zone 2/3 Powered Outputs	Yes
USB Input	1 (Front)
Ethernet	Yes
Wi-Fi	Yes
Bluetooth	Yes
Standby Power Consumption	0.15 W
Power Output (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)	140W
Power Output (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)	250 W/Ch
Input Sensitivity and Impedance	200 mV/47 kOhms (Line)
Signal-to-Noise Ratio	106dB
Speaker Impedance	4 Ohms – 16 Ohms
HDMI Outputs	3
Digital Audio Inputs	Optical: 2, Coaxial: 1
Pre-Outs	11.2 Ch
Speaker Terminals	11
Streaming Services	AirPlay 2, Spotify, Tidal, Deezer
Voice Control	Amazon Alexa, Google Assistant
Room Correction	AccuEQ
Supported Audio Formats	Dolby Atmos, DTS:X
Weight	14.5 kg (32 lbs.)
