Speaker Layout

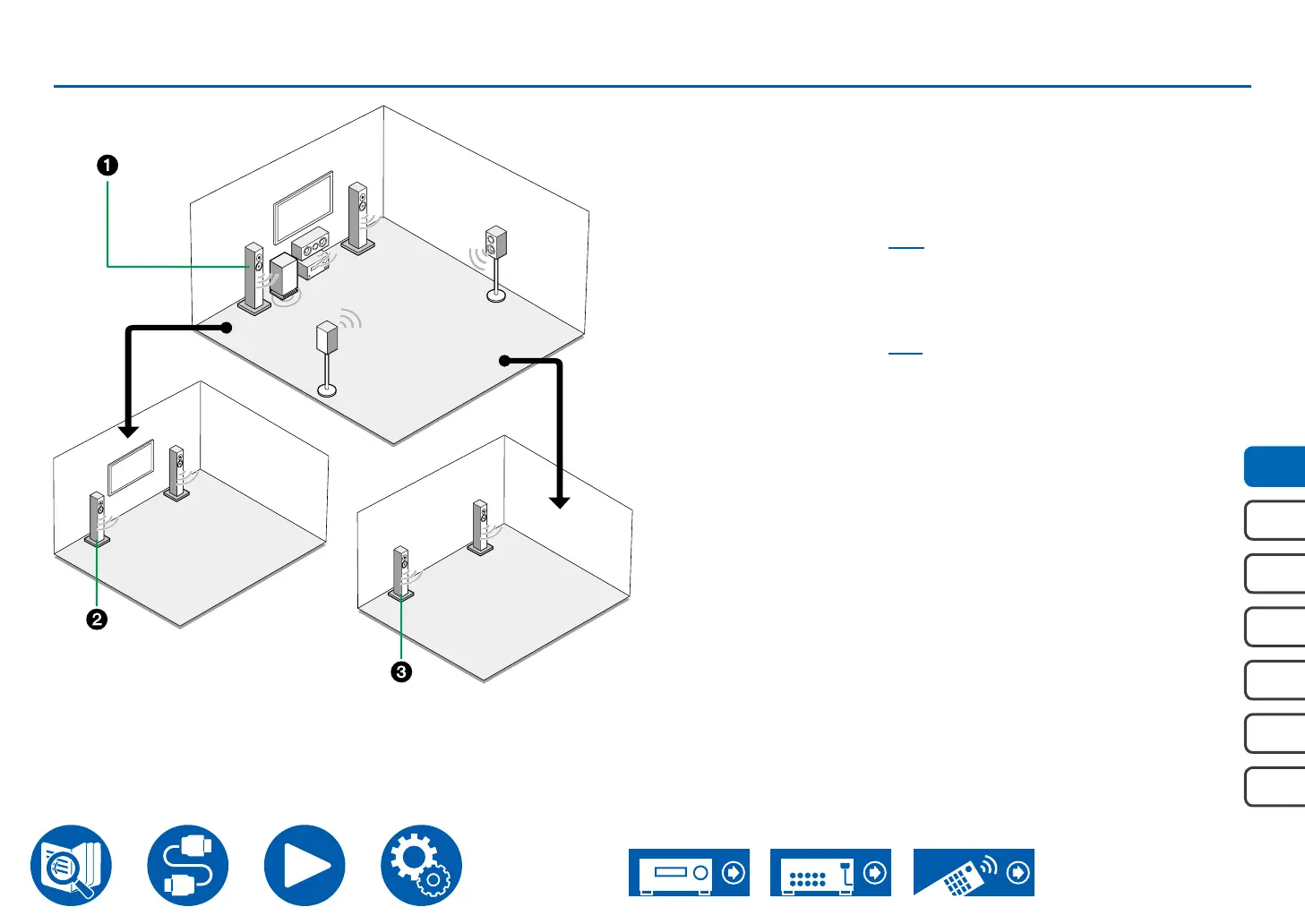

The listening room and the speaker layout
A ZONE A Speakers
The speaker system set up in the main room (where this unit is located).
B ZONE 2 Speakers
The 2 ch speaker system set up in a separate room (ZONE 2). This enables you
to play the same source in the main room and the separate at the same time, or
to play separate sources.
– Playing Back (ZONE 2) ( →p108)
C ZONE 3 Speakers
The 2 ch speaker system set up in a separate room (ZONE 3). This enables you
to play the same source in the main room and the separate at the same time, or
to play separate sources.
– Playing Back (ZONE 3) ( →p110)
ZONE A
(Main Room)
ZONE 2
ZONE 3

Integra DRX-8.4 Specifications

General

Channels	11.2
Amplification Type	Class AB
THD+N	0.08%
HDMI Inputs	7
HDMI 2.1	Yes
HDR Support	HDR10, Dolby Vision, HLG
eARC	Yes
Phono Input	Yes
Zone 2/3 Powered Outputs	Yes
USB Input	1 (Front)
Ethernet	Yes
Wi-Fi	Yes
Bluetooth	Yes
Standby Power Consumption	0.15 W
Power Output (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)	140W
Power Output (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)	250 W/Ch
Input Sensitivity and Impedance	200 mV/47 kOhms (Line)
Signal-to-Noise Ratio	106dB
Speaker Impedance	4 Ohms – 16 Ohms
HDMI Outputs	3
Digital Audio Inputs	Optical: 2, Coaxial: 1
Pre-Outs	11.2 Ch
Speaker Terminals	11
Streaming Services	AirPlay 2, Spotify, Tidal, Deezer
Voice Control	Amazon Alexa, Google Assistant
Room Correction	AccuEQ
Supported Audio Formats	Dolby Atmos, DTS:X
Weight	14.5 kg (32 lbs.)
