Speaker Connections
Speakers you can use with this unit and cable connections
 Speakers you can use with this unit
This unit supports speakers with 4 Ω to 16 Ω impedance. For speaker impedance, check the speaker instruction manual.
 (Note) Speaker Impedance
If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker Impedance" to "4ohms" for "Speaker Setup" in the Initial
Setup section ( →p167). When setting "Speaker Impedance" from the Setup menu, press on the remote controller, and set "Speaker" - "Conguration" -
"Speaker Impedance" ( →p136) to "4ohms".

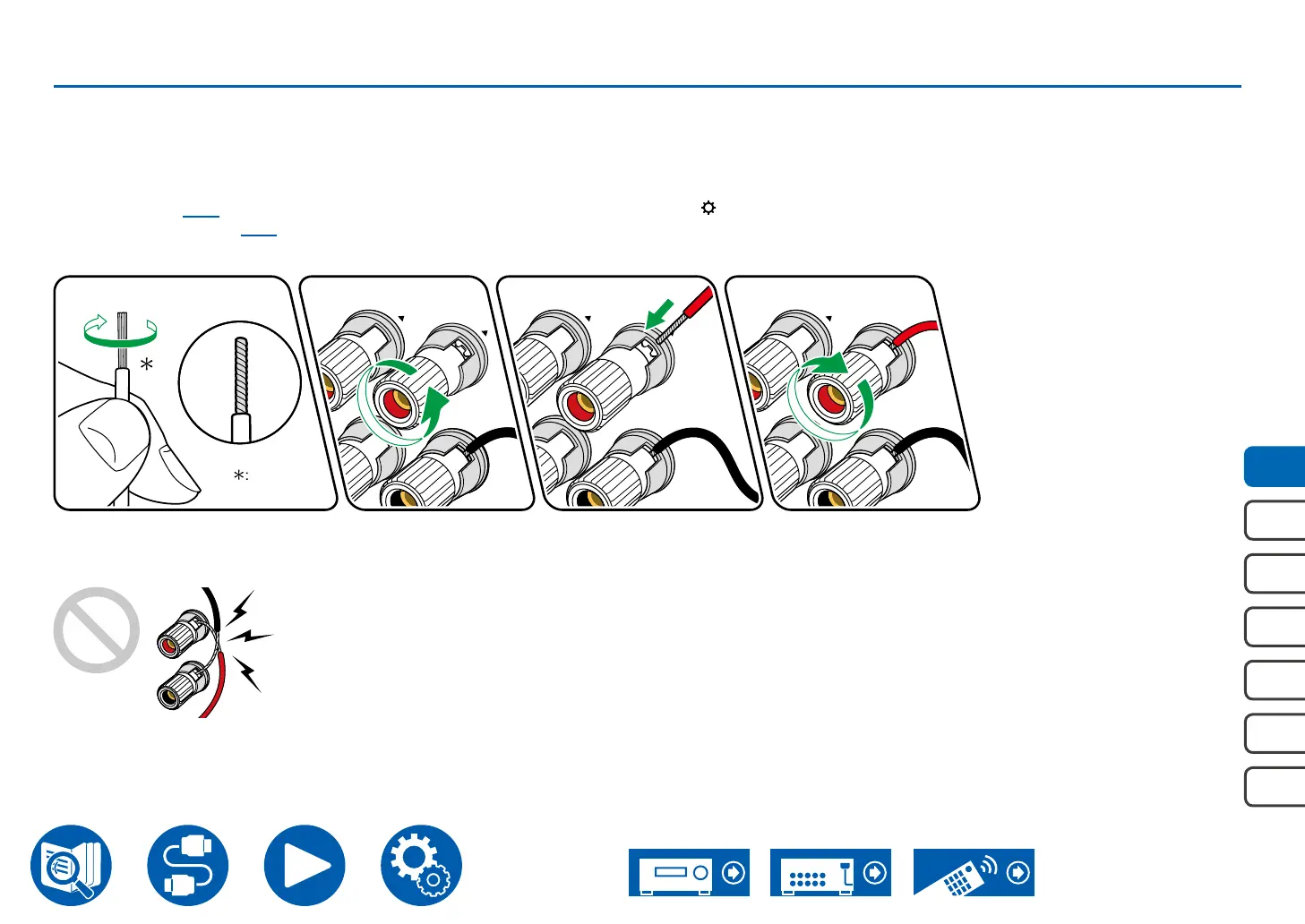

 Connect the Speaker Cables
1/2˝
(12 mm)
Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass
sound will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the
speaker terminal when connecting. If the exposed wires touch the rear panel, or the + side and – side wires touch each other, a malfunction may occur.

Integra DRX-8.4 Specifications

General

Channels	11.2
Amplification Type	Class AB
THD+N	0.08%
HDMI Inputs	7
HDMI 2.1	Yes
HDR Support	HDR10, Dolby Vision, HLG
eARC	Yes
Phono Input	Yes
Zone 2/3 Powered Outputs	Yes
USB Input	1 (Front)
Ethernet	Yes
Wi-Fi	Yes
Bluetooth	Yes
Standby Power Consumption	0.15 W
Power Output (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)	140W
Power Output (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)	250 W/Ch
Input Sensitivity and Impedance	200 mV/47 kOhms (Line)
Signal-to-Noise Ratio	106dB
Speaker Impedance	4 Ohms – 16 Ohms
HDMI Outputs	3
Digital Audio Inputs	Optical: 2, Coaxial: 1
Pre-Outs	11.2 Ch
Speaker Terminals	11
Streaming Services	AirPlay 2, Spotify, Tidal, Deezer
Voice Control	Amazon Alexa, Google Assistant
Room Correction	AccuEQ
Supported Audio Formats	Dolby Atmos, DTS:X
Weight	14.5 kg (32 lbs.)
