Integra DRX-8.4 User Manual

68
Connections
Connecting a BD/DVD without HDMI Jack Mounted
This is a connection example of an AV component unequipped with an HDMI
jack. Select cables that match the jacks of the AV component for connection. For
example, when video input is connected to the BD/DVD jack, connect the audio
input to BD/DVD jack, too. Thus, video input jacks and audio input jacks should
have the same name for connection. Note that video signals input to the VIDEO
IN jack or the COMPONENT VIDEO IN jack are converted to HDMI video
signals, and then output from the HDMI OUT jack.
• To enjoy digital surround playback in formats such as Dolby Digital, you need
to make a connection for audio signals with a digital coaxial cable or a digital
optical cable.
• According to the illustration, changing the input assignment ( →p132)
enables connection to jacks other than the BD/DVD jack.
Note
• The COMPONENT VIDEO IN jacks are compatible only with 480i or 576i
resolution. When connecting to the COMPONENT VIDEO IN jacks, set the
output resolution of the player to 480i or 576i. If there is no option such as
480i, select interlace. If your player does not support 480i or 576i output, use
the VIDEO IN jack.
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.

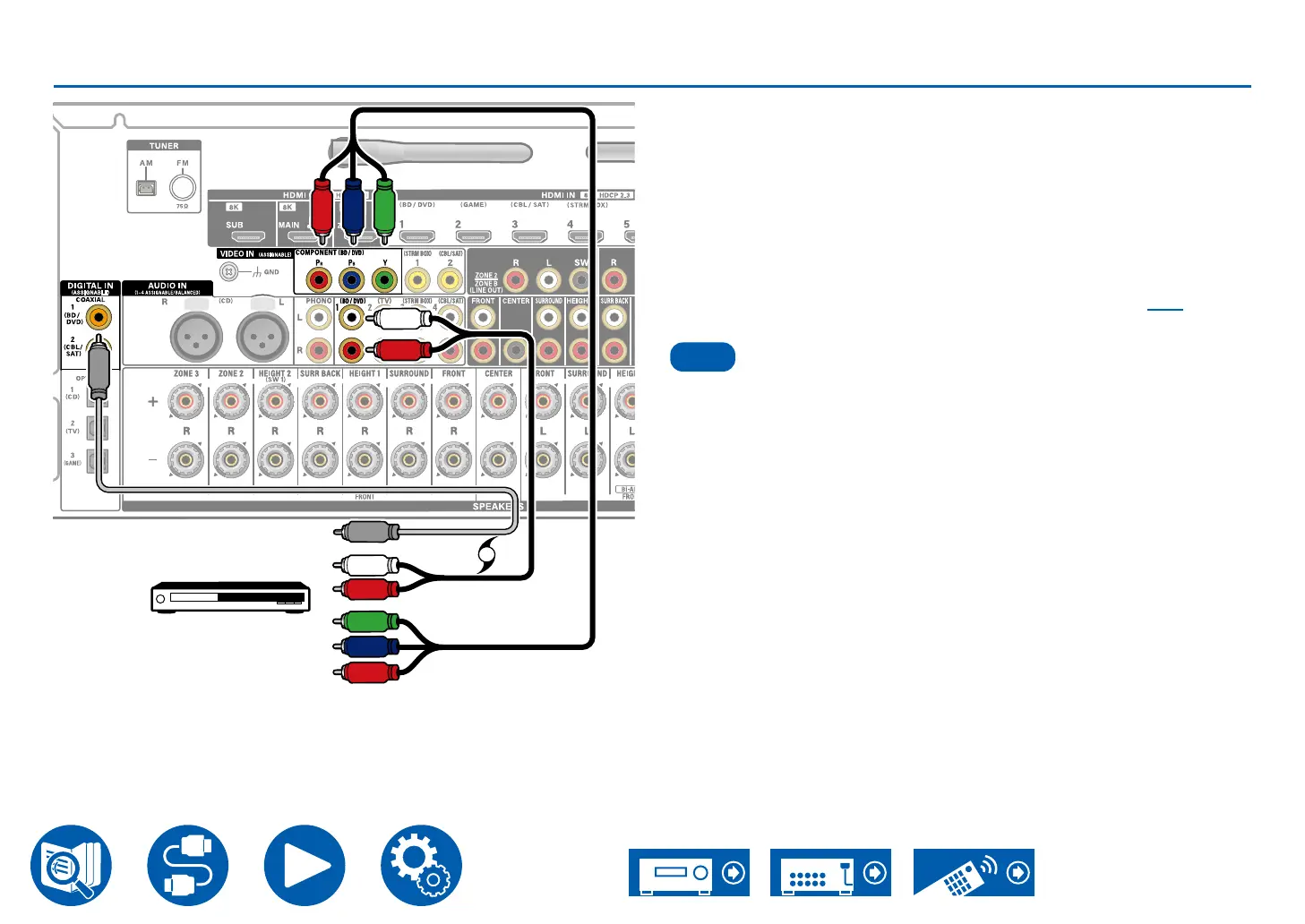

a Digital coaxial cable, b Analog audio cable, c Component video cable
a
b
c
OR
BD/DVD

Integra DRX-8.4 Specifications

General

Channels	11.2
Amplification Type	Class AB
THD+N	0.08%
HDMI Inputs	7
HDMI 2.1	Yes
HDR Support	HDR10, Dolby Vision, HLG
eARC	Yes
Phono Input	Yes
Zone 2/3 Powered Outputs	Yes
USB Input	1 (Front)
Ethernet	Yes
Wi-Fi	Yes
Bluetooth	Yes
Standby Power Consumption	0.15 W
Power Output (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)	140W
Power Output (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)	250 W/Ch
Input Sensitivity and Impedance	200 mV/47 kOhms (Line)
Signal-to-Noise Ratio	106dB
Speaker Impedance	4 Ohms – 16 Ohms
HDMI Outputs	3
Digital Audio Inputs	Optical: 2, Coaxial: 1
Pre-Outs	11.2 Ch
Speaker Terminals	11
Streaming Services	AirPlay 2, Spotify, Tidal, Deezer
Voice Control	Amazon Alexa, Google Assistant
Room Correction	AccuEQ
Supported Audio Formats	Dolby Atmos, DTS:X
Weight	14.5 kg (32 lbs.)
